Eaton 16146-4XSS6LC JIC Panel Enclosure - NEMA 4X
Part Number: 16146-4XSS6LC
Quick Summary
Eaton 16146-4XSS6LC JIC panel enclosure protects electrical and control components in tough industrial environments. Engineers often battle corrosion, moisture ingress, and downtime; the stainless steel construction and seamless gasket on this enclosure mitigate those risks while simplifying maintenance. With UL 50, CSA C22.2, and NEMA ratings, it meets rigorous safety and performance standards for mission-critical applications. The wall-mount design with external mounting feet enables fast installation and flexible siting, while the 316 stainless steel build supports long-term reliability in demanding automation settings. This enclosure pairs robust protection with practical access, delivering tangible value for control panels, power distribution, and process automation projects.
Product Information
Extended Description

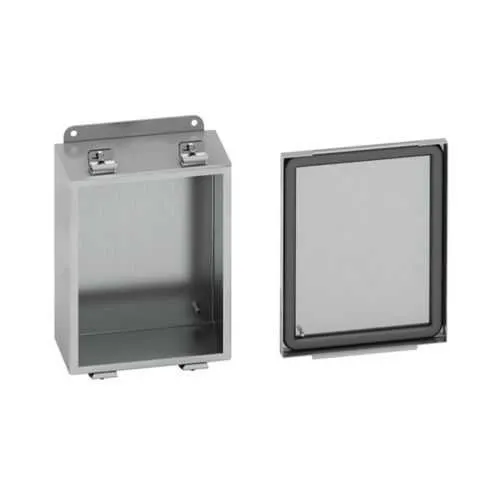

16146-4XSS6LC Eaton: Eaton B-Line series JIC panel enclosure, 16" height, 6" length, 14" width, NEMA 4X, Screw cover, 4XSS6LC enclosure, Wall mount, Small single door, External mounting feet, 316 stainless steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
16146-4XSS6LC
UPC
782051094763
Product Length/Depth
6 in
Product Height
16 in
Product Width
14 in
Product Weight
15.6 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
316 stainless steel
Wall thickness
16 gauge
Finish color
#4 brushed
Color
Gray
Style
Small single door
Model
4XSS6LC enclosure
Cover type
Screw
Mounting method
Wall
Mounting hole details
External mounting feet
Special features
Panel mount provisions, stainless door clamps
NEMA Rating
4X
Country of origin
US
Feature → Business Impact → Application: The enclosure is fabricated from 316 stainless steel and features a 16 gauge wall thickness, delivering superior corrosion resistance and structural integrity in harsh environments; this translates to reduced maintenance cycles and lower lifecycle costs for outdoor or washdown areas such as chemical processing plants and water treatment facilities. Feature → Business Impact → Application: A seamless poured-in-place gasket and screw cover provide a tight seal against dust, moisture, and process fluids; this reduces ingress risk, protects sensitive electronics, and supports predictable uptime for automated control panels in food & beverage lines or pharmaceutical packaging lines. Feature → Business Impact → Application: External mounting feet and wall-mount capability enable quick, tool-friendly installation and flexible panel placement; this improves commissioning times on new lines or retrofit projects in automotive assembly and material handling. Feature → Business Impact → Application: 4X NEMA rating paired with UL 50 and CSA C22.2 certifications assures regulatory compliance and safer operation in indoor/outdoor spaces; this lowers risk of nonconformance during audits and supports cross-site deployments. Feature → Business Impact → Application: Stainless steel door clamps and panel mount provisions simplify service access and component replacement; this reduces mean time to repair (MTTR) and supports ongoing maintenance in continuous production environments. Feature → Business Impact → Application: External features such as mounting feet and a small single-door configuration optimize space usage on compact wall budgets; ideal for retrofit installations in control rooms or crowded industrial facilities.
Get a Quick Quote for a Eaton 16146-4XSS6LC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16146-4XSS6LC?
Enquire Now
FAQs
The 16146-4XSS6LC uses wall mounting with external mounting feet, enabling secure placement on walls and providing easy access for wiring and maintenance. This configuration suits compact automation panels and retrofit installations where space is at a premium.
It is built from 316 stainless steel with 16 gauge wall thickness and rated NEMA 4X, offering excellent corrosion resistance and protection against dust, water, and washdown environments. UL 50 and CSA C22.2 certifications further confirm safety and performance compliance.
Yes. The NEMA 4X rating and stainless steel construction make it suitable for outdoor installations and washdown areas such as water treatment, chemical processing, and food & beverage processing facilities.
The enclosure measures 16 in high, 14 in wide, and 6 in deep. It features a screw cover and a seamless gasket for a tight seal, plus external mounting feet for straightforward wall installation and service access.
With stainless steel construction and robust gasket sealing, the unit minimizes corrosion-related maintenance. The panel mount provisions and stainless door clamps simplify component replacement and inspections, reducing MTTR and supporting long-term operating efficiency.
