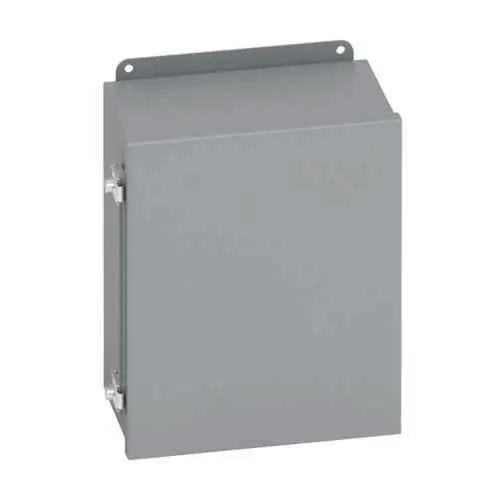

Eaton 16146-FTC JIC Panel Enclosure - NEMA 12
Part Number: 16146-FTC
Quick Summary
Eaton 16146-FTC JIC panel enclosure provides rugged electrical housing for industrial control panels in harsh environments. In practice, installers face gasket leaks, limited service access, and space constraints that slow startups. This enclosure delivers NEMA 12 protection and UL/CSA certifications, backed by a carbon steel construction and a hinged cover for reliable service. Its wall-mount design with external feet supports compact layouts while enabling quick maintenance, helping operators reduce downtime and total cost of ownership. For automation and electrical infrastructure projects, it offers a proven balance of protection, accessibility, and durability with compatible B-Line series features.
Product Information
Extended Description
16146-FTC Eaton: Eaton B-Line series JIC panel enclosure, 16" height, 6" length, 14" width, NEMA 12, Hinged cover, 12FTC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
16146-FTC
UPC
782051094565
Product Length/Depth
6 in
Product Height
16 in
Product Width
14 in
Product Weight
16.3 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12FTC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. piano hinge,panel mount,pulldrawn catch
NEMA Rating
12
Country of origin
US
Feature → Business Impact → Application: The 16 inch high, 14 inch wide, 6 inch deep enclosure provides a compact footprint that optimizes panel layout without sacrificing protection. This translates to easier installation in tight spaces and improved wire routing for control panels in manufacturing lines. Application: ideal for small-to-mid scale machine panels where space is at a premium and reliability is critical. Feature → Business Impact → Application: Carbon steel construction with 16 gauge wall thickness delivers robust mechanical protection and predictable durability in demanding environments. Benefit: reduces the likelihood of corrosion or deformation under mounting stresses, increasing uptime in process automation and materials handling. Application: suitable for factory floors, wash-down areas, or high-vibration locales where enclosure rigidity matters. Feature → Business Impact → Application: Hinged external-mounting feet and a contoured piano hinge enable straightforward field servicing and long-term door alignment. Benefit: simplifies routine inspections and panel upgrades, lowering maintenance labor costs. Application: supports frequent access to wiring and internal components in line with preventive maintenance programs. Feature → Business Impact → Application: Seamless poured-in-place gasket and NEMA 12 rating provide reliable ingress protection against dust and light splashes. Benefit: enhanced safety and compliance for electrical installations in mixed- environment facilities. Application: ideal for control panels in packaging, automation cells, and motor control centers where containment matters. Feature → Business Impact → Application: Small single-door design with external mounting feet allows convenient wall mounting in constrained spaces. Benefit: reduces installation time and enables retrofits in existing enclosures without major remodeling. Application: suitable for retrofit projects in legacy lines or compact control rooms.
Get a Quick Quote for a Eaton 16146-FTC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16146-FTC?
Enquire Now
FAQs
The 16146-FTC is designed as a B-Line series JIC panel enclosure with a wall-mount configuration, external mounting feet, and a hinged cover. It matches common electrical infrastructure sizes and uses a 16 gauge carbon steel shell, ensuring straightforward retrofit or expansion alongside existing enclosures and control cabinets.
Key specs include a 16 in height, 14 in width, and 6 in depth, with a weight around 16.3 lb. Constructed from carbon steel with 16 gauge wall thickness, it features ANSI 61 gray paint, a hinged cover, wall mounting, and external mounting feet. It is rated NEMA 12 and carries UL 508A/CSA C22.2 certifications.
Yes. The 16146-FTC is purpose-built for control panels in automation and manufacturing environments. Its NEMA 12 protection, hinged door for easy access, and wall-mount design support compact installations, while the carbon steel construction withstands industrial wear. This combination improves downtime and service efficiency on production lines.
The enclosure carries UL 508A and CSA C22.2 certifications and a NEMA 12 rating. These certifications confirm electrical safety compliance, component compatibility, and reliable ingress protection against dust and moisture, essential for regulated electrical installations and safe operation in industrial facilities.
Leverage the external mounting feet for quick wall mounting, and use the hinged cover for rapid access during maintenance. The seamless gasket improves reliability against dust and moisture, while the small single-door design simplifies wiring access and component replacement, reducing service time during inspections and upgrades.
