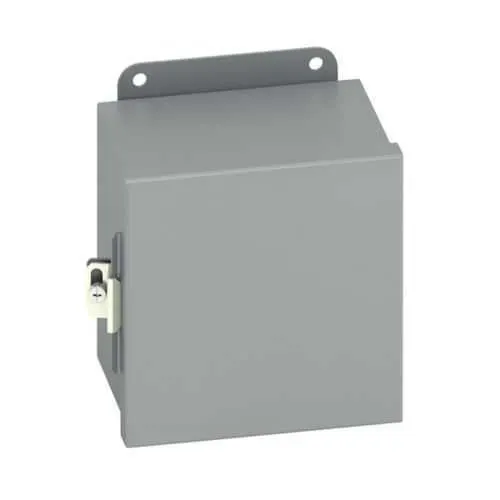

Eaton 16148-12CHC JIC Panel Enclosure - NEMA 12
Part Number: 16148-12CHC
Quick Summary
Eaton 16148-12CHC JIC panel enclosure protects electrical junctions in industrial controls. It is designed for wall-mount installations in crowded equipment rooms and on manufacturing lines, delivering reliable protection where space is at a premium. This enclosure addresses common pain points such as ingress of dust and moisture, loose wiring, and difficult access during maintenance. It carries UL 508A and CSA C22.2 listings and a NEMA 12 rating to ensure safety and regulatory compliance. With a rugged carbon steel chassis, seamless gasket, and continuous piano hinge, it offers long life and predictable performance. Its panel mounting hardware and external feet support quick, code-compliant installations in diverse environments.
Product Information
Extended Description
16148-12CHC Eaton: Eaton B-Line series JIC panel enclosure, 16" height, 8" length, 14" width, NEMA 12, Hinged cover, 12CHC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
16148-12CHC
UPC
782051700343
Product Length/Depth
8 in
Product Height
16 in
Product Width
14 in
Product Weight
17.8 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12CHC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. piano hinge, panel mount,plated door clamps
NEMA Rating
12
Country of origin
US
Feature: Carbon steel construction with 16 gauge wall thickness provides rugged durability that withstands demanding environments. Business impact: longer service life and reduced risk of door misalignment or enclosure distortion, lowering maintenance costs. Application: ideal for factory floors and electrical rooms requiring dependable protection for control panels. Feature: NEMA 12 rating with seamless poured-in-place gasket protects against dust and light moisture. Business impact: improved ingress protection translates to fewer-tampered components and fewer unplanned outages. Application: dust-heavy production lines and moderately damp locations. Feature: Hinged cover with continuous piano hinge and plated door clamps enables quick access and secure closure. Business impact: faster servicing and reduced downtime during PID adjustments or routine checks. Application: high-mix assembly lines where uptime is critical. Feature: External mounting feet and wall-mount capability provide flexible installation options. Business impact: minimizes field fabrication and speeds up retrofits. Application: retrofit projects and new installations in constrained spaces. Feature: 16 in H x 14 in W x 8 in D dimensions and 17.8 lb weight deliver compact, space-efficient footprint. Business impact: easier handling during installation and relocation, with predictable fit for panel layouts. Application: panel assemblies with tight spatial tolerances. This enclosure uses ANSI 61 gray coating and 16 gauge walls to ensure reliable performance and aesthetic compatibility across industrial facilities, while UL 508A and CSA C22.2 listings reinforce compliance and safe operation.
Get a Quick Quote for a Eaton 16148-12CHC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16148-12CHC?
Enquire Now
FAQs
The 16148-12CHC is designed for wall mounting and includes external mounting feet to simplify surface attachment away from wiring ducts or equipment racks. Install by securing the feet to a solid wall or support structure, then attach the enclosure with appropriate fasteners. This setup permits easy service access via the hinged door while maintaining a clean, professional panel layout.
Specifications include 16 in height, 14 in width, 8 in depth, and a weight of 17.8 lb, built from 16 gauge carbon steel with a painted ANSI 61 gray finish. It carries a NEMA 12 rating and listings for UL 508A and CSA C22.2, making it suitable for dust and light liquid exposure in industrial environments.
This enclosure provides NEMA 12 protection against dust and non- corrosive liquids, making it appropriate for many manufacturing and assembly environments. It is not IP-rated for washdown environments, so for harsher or wet conditions you may need a higher-rated enclosure or additional sealing and enclosure height adjustments.
The 16148-12CHC carries UL 508A and CSA C22.2 listings, along with a NEMA 12 rating. These certifications verify electrical safety, construction quality, and protection performance, which support regulatory compliance for industrial control panels and ease procurement for approved equipment in many facilities.
Benefits include a durable carbon steel body with a seamless gasket and a continuous piano hinge that reduces maintenance overhead and service time. The wall-mount design and external feet enable faster installations and easier retrofits, contributing to reduced downtime and a lower total cost of ownership over the enclosure’s lifecycle.
