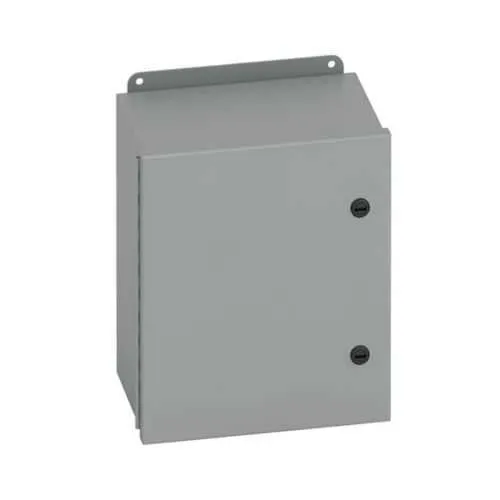

Eaton 16148-4QT JIC Panel Enclosure - UL 50, NEMA 4
Part Number: 16148-4QT
Quick Summary
Eaton 16148-4QT JIC panel enclosure protects electrical gear in industrial control panels and equipment rooms. In harsh environments, improper enclosures can lead to moisture ingress, corrosion, and costly downtime. Certified to UL 50 and CSA C22.2 with a NEMA 4 rating, it resists moisture, dust, and routine abuse in tough plant environments. Designed for wall mounting with external feet and a continuous piano hinge, it simplifies service while keeping installations clean and compliant. This enclosure balances space efficiency with internal capacity, making it a solid choice for modern automation projects while supporting reliable operation across control panels, switchgear, and instrumentation assemblies.
Product Information
Extended Description
16148-4QT Eaton: Eaton B-Line series JIC panel enclosure, 16" height, 8" length, 14" width, NEMA 4, Hinged cover, 4QT enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
16148-4QT
UPC
782051881899
Product Length/Depth
8 in
Product Height
16 in
Product Width
14 in
Product Weight
17.7 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
4QT enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Continous piano hinge,panel mount,1/4 turn latches
NEMA Rating
4
Country of origin
US
NEMA 4 rated enclosure with UL 50 and CSA C22.2 certifications provides rugged protection in challenging environments. The design shields internal components from wind-driven rain, splashes, and dust, reducing corrosion risk and unplanned downtime. In practice, this translates to safer installations in manufacturing floors, wash-down areas, and outdoor equipment rooms, where weather and washdown cycles are common. Carbon steel chassis uses a 16 gauge wall with a seamless poured-in-place gasket and ANSI 61 gray painted finish for lasting durability. This combination delivers a corrosion-resistant enclosure that maintains enclosure integrity even after years of operation in humid or dusty facilities, supporting reliable parameter monitoring and protection of sensitive electronics. With dimensions of 16 in H x 14 in W x 8 in D and a weight of 17.7 lb, the 4QT enclosure provides a compact yet practical internal volume. It fits standard control hardware, minimizes footprint while maximizing usable space, and remains easy to maneuver during installation or reconfiguration in busy panels. The hinged cover features a continuous piano hinge and 1/4-turn latches for fast, tool-free access and secure closure. External mounting feet enable straightforward installation on a wall or interior partition, speeding maintenance outages and reducing commissioning time on new builds. A wall-mountable, small single-door design with external feet supports flexible layouts for panel assemblies, motor starters, and instrumentation blocks. The combination of weather-tight gasket sealing and rugged hardware keeps installations compliant while simplifying upgrades or component swaps. Finish, color, and workmanship align with industry expectations for reliable, long-term performance in industrial automation environments, helping facilities meet ongoing compliance and cost-control objectives.
Get a Quick Quote for a Eaton 16148-4QT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16148-4QT?
Enquire Now
FAQs
The 16148-4QT is designed for wall mounting with external feet, enabling straightforward attachment to solid backs or structural members. Plan for vertical alignment to ensure hinged access clears nearby equipment and to maintain required service clearances. Use compatible mounting hardware, confirm the enclosure is plumb, and provide chassis grounding per your control panel standards for a robust, serviceable installation.
This Eaton enclosure carries UL 50 and CSA C22.2 certifications and a NEMA 4 rating. These approvals indicate suitability for damp, dusty, and potentially wash-down environments, with reliable protection for internal components. When specifying this enclosure, reference these certifications to satisfy regulatory requirements for industrial control panels and safety programs.
Yes, the NEMA 4 rating and UL 50/CSA C22.2 certifications provide ingress protection against moisture and dust, making it appropriate for wash-down areas and exposed industrial spaces. For extreme outdoor exposure, verify additional environmental considerations such as direct sun exposure and temperature cycling, and ensure seals and finishes remain intact after repeated wash-down cycles.
The 4QT enclosure measures 16 in high, 14 in wide, and 8 in deep, with a 17.7 lb weight, offering ample space for small control hardware, relays, and terminations. Plan for a compact layout that keeps wiring organized, provides clear access to components via the hinged cover, and maintains required clearance for conduit routing and future upgrades.
Durable 16 gauge carbon steel with a seamless gasket and continuous piano hinge reduces maintenance needs and prolongs service intervals. The hinged cover enables quick access, minimizing downtime during inspections or upgrades. Overall, the enclosure supports lower lifecycle costs by improving reliability, simplifying compliance maintenance, and enabling faster changeouts in evolving control architectures.
