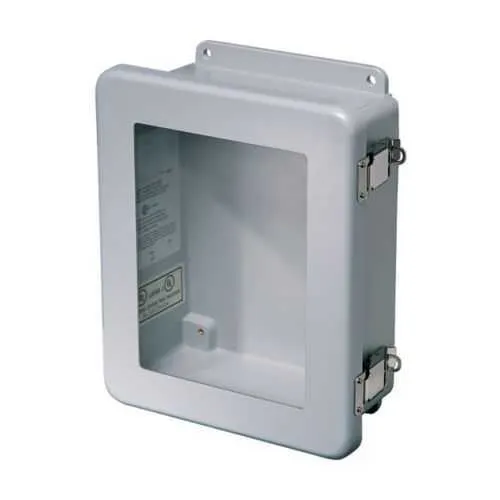

Eaton 16148-SDF JIC Panel Enclosure - NEMA 4X
Part Number: 16148-SDF
Quick Summary
Eaton 16148-SDF JIC panel enclosure protects electrical components in industrial control panels. It addresses common pain points like moisture ingress, dust contamination, and limited mounting space in tight installations. With UL 50, NEMA 4X, and CSA C22.2 certifications, it meets rigorous reliability and safety standards. Fiberglass construction and a hinged cover deliver corrosion resistance and straightforward maintenance, reducing life-cycle costs. Designed for wall mounting with optional external feet, it fits compact layouts and scalable automation footprints. This enclosure blends rugged protection with easy service access, helping you accelerate panel builds and field upgrades.
Product Information
Extended Description
16148-SDF Eaton: Eaton B-Line series JIC panel enclosure, 17.58" height, 8.34" length, 15.96" width, NEMA 4X, Hinged cover, SDF enclosure, Wall mount, Medium single door, Optional external mounting feet, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
16148-SDF
UPC
782051524222
Product Length/Depth
8.34 in
Product Height
17.58 in
Product Width
15.96 in
Product Weight
11.5 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
SDF enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Optional external mounting feet
Closure type
Hinged
Special features
Stainless screws
NEMA Rating
4X
Country of origin
US
Fiberglass construction provides robust corrosion resistance while remaining lighter than metal alternatives, improving handling during installation and reducing crane or crew time on site. The business impact is lower maintenance costs and longer service life in harsh environments, making it ideal for outdoor or washdown areas where control panels must endure chemical exposure and moisture. The JIC panel enclosure follows a medium single-door design with a hinged cover, which translates to quick access for commissioning, diagnostics, and routine maintenance—essential for minimizing downtime on busy production lines. Its NEMA 4X rating, UL 50, and CSA C22.2 certifications deliver regulatory confidence and safety compliance for regulated industries. Compatibility is enhanced by wall-mounting geometry and optional external mounting feet, enabling flexible installation in constrained facilities while preserving cabinet footprints and service access. The enclosure’s stainless screws resist corrosion, supporting long-term reliability in aggressive environments and reducing rework during refurbishment projects. Seamless poured-in-place gasket technology further protects against water ingress, dust, and air leaks, improving enclosure integrity across shifts.
Get a Quick Quote for a Eaton 16148-SDF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16148-SDF?
Enquire Now
FAQs
The 16148-SDF is designed for wall mounting and offers optional external mounting feet for additional mounting flexibility. This enables secure attachment in tight spaces and simplifies retrofit or upgrade projects by preserving existing footprints while providing easy interior access for wiring and maintenance.
Important specs include dimensions: 17.58 in H, 15.96 in W, 8.34 in D; weight 11.5 lb; material fiberglass with an unfinished gray finish; NEMA rating 4X; hinged cover; medium single-door model SDF enclosure; mounting method wall; and certifications UL 50 and CSA C22.2 for compliance.
Yes. The NEMA 4X rating provides weather resistance and protection against corrosion, making it suitable for outdoor installations and washdown areas when paired with proper installation practices and seal integrity from the seamless gasket.
It carries UL 50, NEMA 4X, and CSA C22.2 certifications, signaling compliance with standard electrical enclosure safety and performance requirements. This helps streamline spec approval, vendor qualification, and end-user safety audits in regulated industries.
The fiberglass construction and corrosion-resistant stainless screws reduce maintenance intervals and component corrosion, extending service life and lowering total cost of ownership. The hinged cover and gasketed design also simplify field servicing and replacements, accelerating downtime recovery and protecting critical automation assets.
