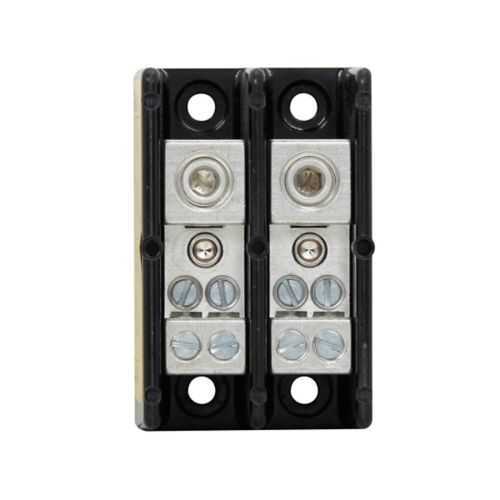

Eaton 16220-2 Power distribution block - SCCR 10 kAIC
Part Number: 16220-2
Quick Summary
Eaton 16220-2 power distribution block safely distributes 175A at 600 Vac/600 Vdc in industrial control panels. A compact two-pole design helps reduce wiring density and panel space, addressing common installation challenges and miswiring risks. The unit is RoHS compliant, with an SCCR rating of 10 kAIC and voltage ratings of 600 Vac and 600 Vdc, supporting safe operation in high-energy mains. While certifications may vary by region, consult the manufacturer for CE or UL listings. For procurement and design efficiency, this block pairs well with Bussmann series components and Eaton's power-management ecosystem, delivering reliable performance with straightforward field installation and reduced total cost of ownership.
Product Information
Extended Description
16220-2 Eaton: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 175 A, Two-pole, SCCR: 10 kAIC, Black, Molded Thermoplastic
Product Name
Eaton Bussmann series power distribution block
Catalog Number
16220-2
UPC
051712148689
Product Length/Depth
3 in
Product Height
1 in
Product Width
2 in
Product Weight
0.333 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
175A
Short-circuit rating
SCCR: 10 kAIC
Voltage rating
600 Vac, 600 Vdc
Color
Black
Material
Molded thermoplastic
Number Of Poles
Two-pole
Type
Power distribution block
Application
Power distribution
Feature: 175A amperage rating with 600 Vac/600 Vdc voltage rating and SCCR of 10 kAIC. Business Impact: Delivers robust short-circuit protection and reliable power distribution for demanding industrial panels, reducing failure risk and enabling safer startup. Application: Suitable for machine builder panels and process control enclosures where high-energy mains are present. Feature: Two-pole design in a molded thermoplastic housing, color Black. Business Impact: Simplifies wiring topology and enhances surface durability, enabling faster, error-free installations. Application: Ideal for compact control panels and modular power distribution assemblies. Feature: Compact footprint—3 in length, 2 in width, 1 in height—and weight of 0.333 lb. Business Impact: Saves valuable panel space and reduces overall machine weight, improving enclosure layout and serviceability. Application: Preferred in space-constrained industrial cabinets and tight control-panel niches. Feature: RoHS compliant with manufacturer-listed certifications. Business Impact: Supports global compliance programs and environmental responsibility while streamlining supply-chain qualification. Application: OEMs and integrators deploying in multi-region manufacturing facilities. Feature: General-purpose compatibility with Bussmann series components. Business Impact: Enables seamless integration into Eaton’s Power Management ecosystem, accelerating installation and improving maintainability. Application: Systems that require modular, compatible distribution blocks in large-scale assemblies.
Get a Quick Quote for a Eaton 16220-2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16220-2?
Enquire Now
FAQs
The 16220-2 is a compact, two-pole power distribution block rated for 175 A with 600 Vac/600 Vdc operation. For installation, mount securely in a panel using standard hardware, connect conductors to the two poles per your wiring diagram, and ensure clear labeling of input and output lines. Refer to the Eaton datasheet for wiring torque recommendations and clearance requirements.
Key ratings include 175 A amperage, voltage rating of 600 Vac and 600 Vdc, and a short-circuit rating (SCCR) of 10 kAIC. The block uses molded thermoplastic housing in black and is a two-pole design. It is RoHS compliant, supporting regulatory requirements for environmental responsibility and safe operation in high-energy mains.
Yes, the 16220-2 is designed for power distribution in industrial control panels, machine enclosures, and panel boards. It supports up to 175 A at both 600 Vac and 600 Vdc, with a compact footprint that helps save space in tight panels. Its RoHS compliance and high SCCR make it suitable for demanding manufacturing environments.
The 16220-2 is RoHS compliant, aligning with global environmental regulations. Certification specifics beyond RoHS are listed as manufacturer-dependent; for CE, UL, or regional certifications, contact Eaton to confirm current listings and any region-specific documentation or approvals required for your application.
The block requires minimal ongoing maintenance due to its solid molded thermoplastic construction and static power-distribution function. Its compact size reduces panel space, potentially lowering enclosure costs and installation time. The RoHS compliance supports sustainable sourcing, while compatibility with Bussmann series components simplifies design discipline and long-term maintenance in multi-vendor environments.
