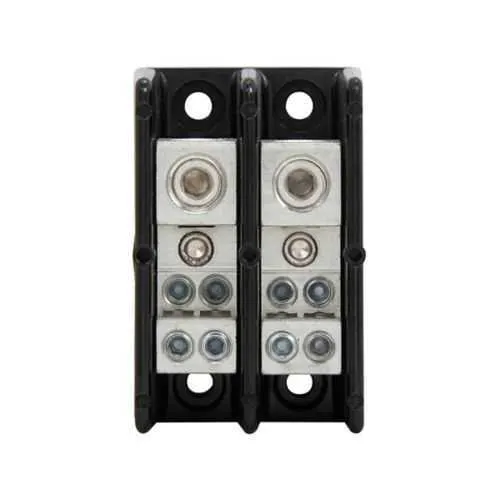

Eaton 16220-2H Power Distribution Block - RoHS Compliant
Part Number: 16220-2H
Quick Summary
Power distribution block is the core element used to split and route supply power inside electrical enclosures. The Eaton 16220-2H offers compact, two-pole distribution for control panels, helping engineers maximize space where tight footprints are the norm. RoHS compliance and manufacturer-backed certifications support regulatory alignment across projects, reducing documentation gaps. Built for rugged industrial environments, this block integrates with the Eaton Bussmann series devices to streamline protection and wiring strategies. By combining precise dimensions with reliable performance, it lowers panel depth, accelerates installation, and supports scalable configurations for future expansion. It is well suited for machine builds, packaging lines, and automated workflows where space, reliability, and compliance matter.
Product Information
Extended Description
16220-2H Eaton: Eaton Bussmann series power distribution block, Power distribution block, Two-pole - 16220-2H
Product Name
Eaton Bussmann series power distribution block
Catalog Number
16220-2H
UPC
051712203272
Product Length/Depth
2.84 in
Product Height
1.69 in
Product Width
1.81 in
Product Weight
0.3 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Number Of Poles
Two-pole
Type
Power distribution block
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - 16220-2H
The 16220-2H employs a two-pole design that simplifies circuit layout, reducing wiring complexity and panel congestion, which translates to faster commissioning and lower labor costs in new builds. Its compact footprint—2.84 inches long, 1.81 inches wide, and 1.69 inches tall—maximizes enclosure real estate while maintaining accessibility for terminations and maintenance, enabling denser, cleaner installations. At only 0.3 pounds, it eases mounting and reduces support load on internal panels, contributing to safer, more versatile installations in vibration-heavy environments. RoHS compliance ensures hazardous substance requirements are met, mitigating compliance risk across global deployments and supplier audits. Compatibility with Eaton Bussmann series devices streamlines procurement and reduces part counts, accelerating lead times and simplifying spares management for maintenance teams. In practice, these attributes support faster ROI through reduced wiring time, space savings, and improved reliability in automated systems.
Get a Quick Quote for a Eaton 16220-2H
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16220-2H?
Enquire Now
FAQs
The 16220-2H is a compact two-pole power distribution block designed for control panels and enclosures. Its small footprint supports dense panel layouts, while its compatibility with Eaton Bussmann series devices simplifies wiring, protection integration, and panel commissioning. Ensure adequate clearance for terminations and access during maintenance.
The 16220-2H measures 2.84 inches in length, 1.81 inches in width, and 1.69 inches in height, with a weight of 0.3 pounds. These dimensions enable tight enclosure fitting and lightweight installation, reducing mounting stress and simplifying relocation if needed.
The product is RoHS compliant and certifications are available from the manufacturer upon request. Useful resources include the Bussmann series catalogs and the Eaton Specification Sheet for 16220-2H, along with the downloadable data sheets and videos listed in the product downloads.
Ideal for control panels, automated machinery, and packaging lines, the 16220-2H provides reliable power distribution in restricted enclosures. Its two-pole design simplifies wiring, while its compatibility with Eaton Bussmann devices ensures a cohesive protection strategy and streamlined part management.
The block’s compact form factor and light weight shorten installation time and reduce panel depth, contributing to faster commissioning. RoHS compliance reduces regulatory risk, and compatibility with Bussmann components lowers part counts, which can lower inventory costs and improve maintenance efficiency over the equipment lifecycle.
