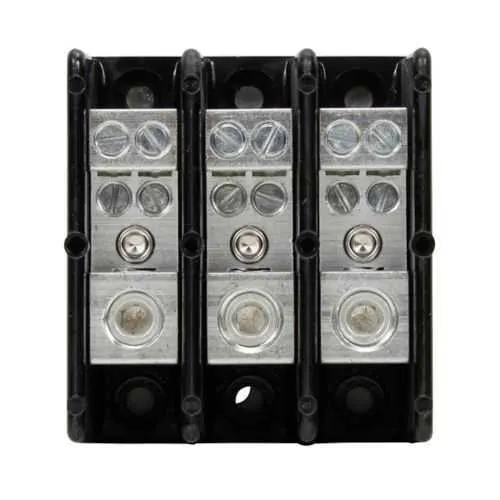

Eaton 16220-3 Power distribution block - SCCR 10 kAIC
Part Number: 16220-3
Quick Summary
The Eaton Bussmann series power distribution block provides compact, reliable power routing for industrial machinery and control panels. In dense switchgear layouts, space constraints and uncertain SCCR values can slow commissioning and raise safety risk. This block is RoHS compliant, with additional certifications available from the manufacturer upon request, reflecting a commitment to regulatory alignment in modern automation environments. While the warranty states Not Applicable in this data, users benefit from a molded thermoplastic enclosure that resists wear in typical factory settings and a robust 175 A current rating. This combination supports safer wiring, faster panel builds, and scalable power distribution for industrial power management and control systems.
Product Information
Extended Description
16220-3 Eaton: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 175 A, Three-pole, SCCR: 10 kAIC, Black, Molded Thermoplastic
Product Name
Eaton Bussmann series power distribution block
Catalog Number
16220-3
UPC
051712149273
Product Length/Depth
2.88 in
Product Height
1.69 in
Product Width
2.69 in
Product Weight
0.46 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
175A
Short-circuit rating
SCCR: 10 kAIC
Voltage rating
600 Vac, 600 Vdc
Color
Black
Material
Molded thermoplastic
Number Of Poles
Three-pole
Type
Power distribution block
Application
Power distribution
High current utilization enables a single block to distribute up to 175 A, reducing hardware count and simplifying wiring in motor control and panel assemblies, which translates to faster installs and lower maintenance. The 600 Vac and 600 Vdc voltage rating provides universal compatibility with mixed power systems, streamlining procurement and improving long-term flexibility for evolving plant architectures. The three-pole design simplifies three-phase distribution, lowering wiring complexity and enabling compact panel layouts for tighter control enclosures. With SCCR of 10 kAIC, the block supports safer operation for critical circuits, improving safety margins in mid- to high-power applications. The molded thermoplastic enclosure offers durable, lightweight protection against dust and impact, supporting efficient field installation and reduced fatigue during wiring. RoHS compliance ensures regulatory alignment for modern automation projects and helps minimize hazardous substances in legacy facilities.
Get a Quick Quote for a Eaton 16220-3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16220-3?
Enquire Now
FAQs
The 16220-3 is a three-pole power distribution block rated for 175 A and designed for compact control panels. Its dimensions (2.88 in L x 2.69 in W x 1.69 in H) and molded thermoplastic enclosure enable straightforward mounting in standard enclosures, reducing spatial conflicts and simplifying wiring in dense cabinets.
The 16220-3 provides an amperage rating of 175 A, with voltage ratings of 600 Vac and 600 Vdc. It also features a short-circuit rating (SCCR) of 10 kAIC, making it suitable for higher-energy distribution paths while maintaining robust protection for panel wiring.
Yes, the 16220-3 is RoHS compliant. Certifications beyond RoHS are listed as available from the manufacturer upon request, ensuring compatibility with your compliance program and facility-specific regulatory requirements.
This 16220-3 power distribution block is ideal for industrial power distribution in control panels, motor control centers, and other equipment requiring reliable three-pole distribution with high SCCR. Its compact form factor and durable molded thermoplastic enclosure support tight panel layouts and efficient wiring in demanding environments.
Official datasheets and media include the Eaton Specification Sheet for 16220-3, the 16220-3 data sheets, and the Bussmann series Fuseology multimedia resource. These documents provide installation guidelines, electrical ratings, and compatibility notes to support design validation and procurement decisions.
