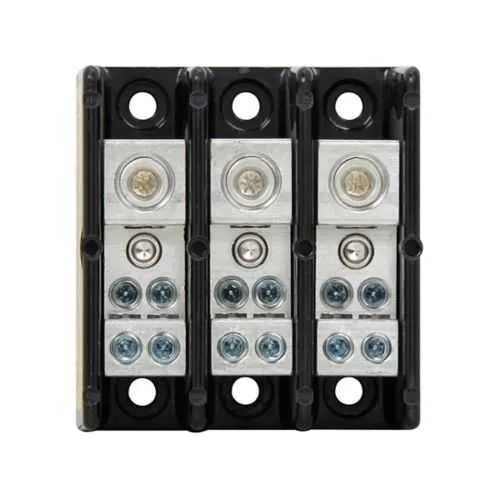

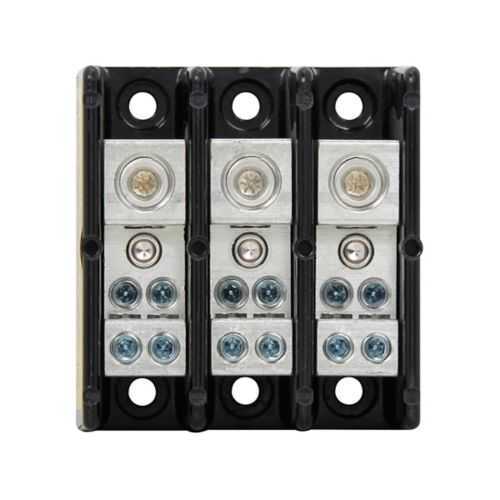

Eaton 16220-3H Power distribution block - SCCR 100 kAIC
Part Number: 16220-3H
Quick Summary
Eaton 16220-3H Power distribution block is designed to deliver reliable, compact power distribution in industrial control panels. This three-pole unit handles up to 175 A with a 600 Vac / 600 Vdc rating, helping engineers simplify wiring and reduce panel depth. In practice, teams struggle with matching high fault-current ratings to safe, accessible termination in limited space; the 100 kAIC SCCR supports heavy-duty protection while maintaining service continuity. Compliance notes include RoHS compliance and manufacturer-driven certifications; confirm CE/UL/IEC marks with the supplier as part of your qualification process. By combining robust performance with easy installation and documented compatibility, this block supports fast deployment, reduces lifecycle costs, and improves overall system reliability for manufacturing, packaging, and energy-management applications.
Product Information
Extended Description
16220-3H Eaton: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 175 A, Three-pole, SCCR: 100 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Product Name
Eaton Bussmann series power distribution block
Catalog Number
16220-3H
UPC
051712203289
Product Length/Depth
3 in
Product Height
2 in
Product Width
3 in
Product Weight
0.459 lb
Warranty
Not Applicable
Compliances
RoHS Compliant Contact factory
Certifications
Contact Manufacturer
Amperage Rating
175A
Short-circuit rating
SCCR: 100 kAIC
Voltage rating
600 Vac, 600 Vdc
Color
Black
Material
Molded thermoplastic base, tin plated aluminum connector
Number Of Poles
Three-pole
Type
Power distribution block
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - 16220-3H
Feature: Three-pole design supports true three-phase power distribution in compact form. Business Impact: Enables reliable phase-by-phase terminations in a small footprint, reducing panel depth and material costs. Application: Panel boards and control cabinets where space is at a premium. Feature: 175 A amperage rating with a 600 Vac / 600 Vdc voltage rating. Business Impact: Handles demanding loads and dual-voltage environments without needing reconfiguration. Application: Industrial automation, motor control centers, and process lines. Feature: SCCR rated at 100 kAIC. Business Impact: High fault current resilience improves safety margins and reduces nuisance trips. Application: Infrastructural power distribution and safety-critical control panels. Feature: Molded thermoplastic base and tin-plated aluminum connectors. Business Impact: Enhanced insulation, corrosion resistance, and durable contacts for long-service life. Application: Harsh industrial environments and long-term installations. Feature: Compact footprint with dimensions 3 in x 3 in x 2 in and light weight ~0.459 lb. Business Impact: Easy retrofits and simplified installation with minimal mounting footprint. Application: Retrofit projects and new builds where space and weight matter. Feature: RoHS compliant with manufacturer-certification options. Business Impact: Regulatory compliance and smoother procurement with reliable supplier support. Application: Global manufacturing environments and OEM assemblies.
Get a Quick Quote for a Eaton 16220-3H
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16220-3H?
Enquire Now
FAQs
To install the 16220-3H, mount the unit on a sturdy panel surface in a protected enclosure, align three conductors with the tin-plated aluminum connectors, and secure each termination to the rated 175 A capacity. Ensure adequate clearance for cooling and verify the 600 Vac/600 Vdc rating aligns with the panel’s supply. Confirm RoHS compliance and reference the Eaton datasheet (16220-3H) for torque and termination guidance.
Key specs include a 175 A amperage rating, voltage rating of 600 Vac and 600 Vdc, and an SCCR of 100 kAIC. It is a three-pole power distribution block with a molded thermoplastic base and tin-plated aluminum connectors, designed for robust fault-current handling and reliable terminations in industrial environments.
Yes. The three-pole design coupled with 175 A capacity and 600 Vac/600 Vdc ratings makes it suitable for industrial control panels, motor control centers, and panel boards where space is constrained but high fault-current protection is required. Its compact footprint and RoHS compliance further support diverse automation and manufacturing applications.
The product is RoHS compliant and lists manufacturer certifications as a reference. For regulated environments, verify CE/UL/IEC marks with the supplier and obtain any additional certifications required for your specific region or application. Always confirm with Eaton or an authorized distributor to ensure the latest certification status for your installation.
The block has a molded thermoplastic base and robust tin-plated connectors designed for long life with minimal maintenance. Regular inspection of connections for tightness and signs of wear is recommended in high-vibration or dusty environments. The compact design helps reduce exposure and simplifies routine checks, contributing to lower lifecycle costs.
