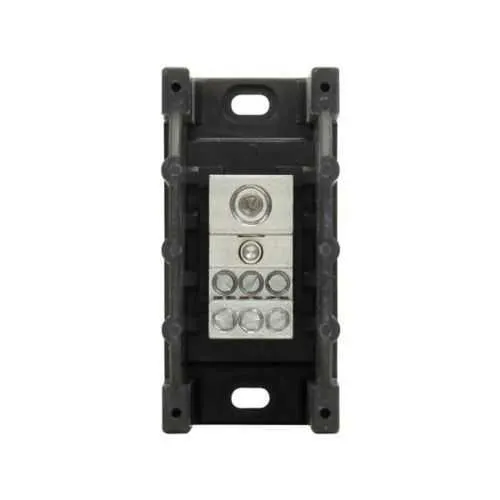

Eaton 16321-1 Power Distribution Block - SCCR 200 kAIC
Part Number: 16321-1
Quick Summary
The Eaton 16321-1 power distribution block delivers compact, high-current power routing for control panels and industrial equipment. Engineers often contend with crowded panels, heat buildup, and safety gaps when distributing power to high-demand loads. This RoHS-compliant block supports 175 A, 600 Vac, 600 Vdc, and a robust SCCR of 200 kAIC, with certifications available from the manufacturer. Its small footprint, molded thermoplastic base, and tin-plated aluminum connectors help streamline installation, reduce enclosure size, and lower total cost of ownership in modern automation systems.
Product Information
Extended Description
16321-1 Eaton: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 175 A, Single-pole, SCCR: 200 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Product Name
Eaton Bussmann series power distribution block
Catalog Number
16321-1
UPC
051712247597
Product Length/Depth
5.5 in
Product Height
3.5 in
Product Width
2.5 in
Product Weight
0.57 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
175A
Short-circuit rating
SCCR: 200 kAIC
Voltage rating
600 Vac, 600 Vdc
Color
Black
Material
Molded thermoplastic base, tin plated aluminum connector
Number Of Poles
Single-pole
Type
Power distribution block
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - 16321-1
Feature: 175 A amperage rating. Business Impact: Enables reliable, high-load distribution without derating or parallel blocks, improving panel efficiency and reducing the need for larger hardware. Application: Control panels for motors, drives, and automation assets where steady current delivery matters. Feature: 600 Vac / 600 Vdc voltage rating. Business Impact: Supports both AC and DC distribution within a single block, simplifying panel design and spare parts management. Application: Mixed-voltage power distribution in CNCs, packaging lines, and process equipment. Feature: SCCR 200 kAIC. Business Impact: Enhances safety margins and compliance for high-energy applications, reducing risk of fault-induced damage. Application: Main feeders and feeder blocks in switchgear and MCCs. Feature: Material and construction (molded thermoplastic base; tin-plated aluminum connector). Business Impact: Combines dielectric strength with corrosion resistance and durable contact interfaces, lowering maintenance. Application: Harsh factory floors and damp environments with reliable long-term performance. Feature: Physical footprint and weight (5.5 in L × 3.5 in H × 2.5 in W; ~0.57 lb). Business Impact: Saves panel space and eases handling during installation or retrofit. Application: Enclosures with limited real estate. Feature: RoHS compliance; catalog and part traceability. Business Impact: Ensures regulatory alignment and easier supplier audits, aiding procurement. Application: Compliance-driven projects and OEM integrations.
Get a Quick Quote for a Eaton 16321-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16321-1?
Enquire Now
FAQs
The 16321-1 is a single-pole power distribution block with a compact footprint (5.5 in × 3.5 in × 2.5 in) and a weight of about 0.57 lb, designed for use in Eaton Bussmann series assemblies. It provides a straightforward installation path with tin-plated aluminum connectors and a molded thermoplastic base, compatible with common control cabinet layouts and standard panel mounting schemes.
The 16321-1 is rated for 175 A with a voltage rating of 600 Vac and 600 Vdc, and a short-circuit rating (SCCR) of 200 kAIC. This combination supports high-current distribution to motors, drives, and other heavy-load devices in control panels, while maintaining fault tolerance and safe clearance within typical automation enclosures.
Yes. The 16321-1’s 175 A rating, 600 Vac/600 Vdc voltage capability, and 200 kAIC SCCR make it well-suited for motor control and power distribution tasks in industrial automation. Its robust connectors and thermoplastic body help withstand vibration and temperature variations common in motor-driven applications, while keeping wiring organized and accessible for service.
The 16321-1 is RoHS compliant, supporting regulatory requirements for restricted substances. Certifications beyond RoHS are available from the manufacturer upon request. For procurement audits or design verifications, confirm current certification documents with Eaton or authorized distributors to ensure alignment with your quality and safety programs.
Maintenance benefits come from its robust build, corrosion-resistant tin-plated connectors, and a compact footprint that reduces wiring complexity. ROI stems from improved panel reliability, easier installation, and a lower risk of fault-induced downtime due to the high SCCR rating. The block’s traceability and RoHS compliance also simplify compliance checks and part sourcing over the equipment lifecycle.
