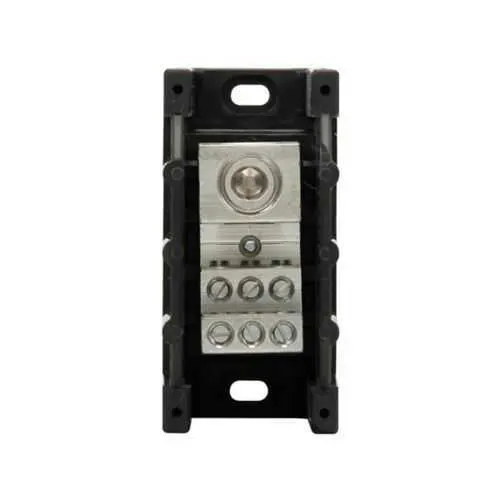

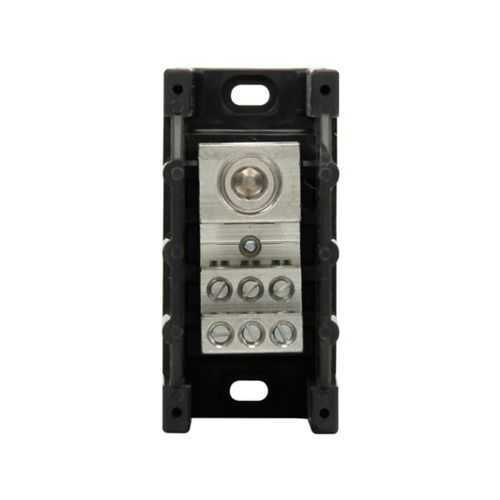

Eaton 16323-1 Power distribution block - SCCR 100 kAIC
Part Number: 16323-1
Quick Summary
Power distribution block from Eaton provides a compact, high-current bus protection solution for industrial control panels. Engineers often struggle with fitting large conductors and meeting safety ratings in constrained enclosures, which leads to compromise on performance. The 16323-1 block delivers a robust 310A rating and a 100 kAIC short-circuit rating, with 600 Vac and 600 Vdc voltage capability, while its molded thermoplastic base and tin-plated aluminum connector support reliable, long-term service. RoHS compliance helps simplify regulatory adherence, and the compact 3.95 in length, 3.18 in height, and 1.98 in width support tight panel layouts. Using Eaton Bussmann series blocks can reduce wiring complexity and improve maintainability in power distribution stages.
Product Information
Extended Description
16323-1 Eaton: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 310A, Power distribution block, Single-pole, SCCR: 100 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector - 16323-1
Product Name
Eaton Bussmann series power distribution block
Catalog Number
16323-1
UPC
051712149280
EAN
5027590191487
Product Length/Depth
3.95 in
Product Height
3.18 in
Product Width
1.98 in
Product Weight
0.64 lb
Warranty
Not Applicable
Compliances
RoHS Compliant Contact factory
Certifications
Contact Manufacturer
Amperage Rating
310A
Short-circuit rating
SCCR: 100 kAIC
Voltage rating
600 Vac, 600 Vdc
Color
Black
Material
Molded thermoplastic base, tin plated aluminum connector
Number Of Poles
Single-pole
Type
Power distribution block
High-current capability and compact footprint drive design efficiency. The 310A amperage rating paired with a single-pole configuration supports primary feeders in control panels without requiring oversized hardware, reducing enclosure footprint and material costs. This enables tighter layouts in machine automation while preserving performance and safety. The SCCR of 100 kAIC enhances fault tolerance, meaning panels are better protected during short-circuit events and compliance with electrical safety standards is easier to demonstrate. Voltage versatility is a key benefit, with a 600 Vac and 600 Vdc rating that accommodates both AC and DC control schemes across industrial installations, from motor drives to DC bus systems. The molded thermoplastic base and tin-plated aluminum connector offer durable mechanical and electrical interfaces, delivering reliable connections even in vibration-prone or harsh environments. Dimensions and weight—3.95 in L × 3.18 in H × 1.98 in W and 0.64 lb—support straightforward panel mounting and retrofit projects. RoHS compliance further simplifies regulatory conformity across global supply chains and end-user installations.
Get a Quick Quote for a Eaton 16323-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16323-1?
Enquire Now
FAQs
The 16323-1 is a single-pole power distribution block rated for 310A, with tin-plated aluminum connectors designed for 600 Vac and 600 Vdc systems. Its compact form supports tight panel layouts while maintaining robust electrical performance.
The 16323-1 provides a Short-Circuit Current Rating (SCCR) of 100 kAIC, which helps ensure safe operation during fault conditions and simplifies compliance with electrical codes in industrial environments.
Installation fits standard panel spaces with dimensions of 3.95 in L × 3.18 in H × 1.98 in W and a weight of 0.64 lb. It uses a molded thermoplastic base and tin-plated aluminum connectors, enabling reliable mounting and connections in both AC and DC power rails.
RoHS compliance is noted for this part, with additional certifications typically confirmed by the manufacturer. For full certification details, refer to the Eaton specification sheet and contact the factory if needed.
Key benefits include high current capability in a compact footprint, high fault tolerance with 100 kAIC SCCR, dual-voltage support (600 Vac/600 Vdc), and durable construction. This translates to reduced wiring complexity, improved reliability, and easier regulatory compliance in industrial automation and control panels.
