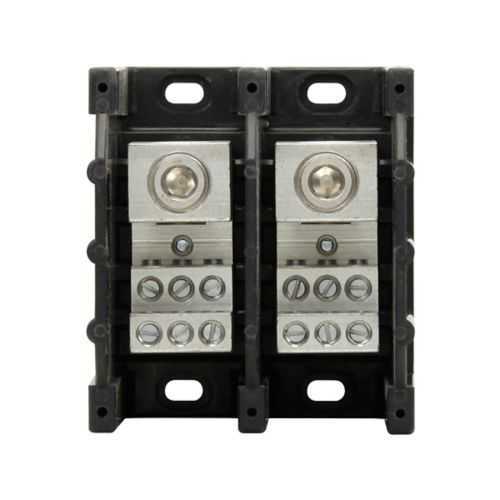

Eaton 16323-2 Power Distribution Block - SCCR 100 kAIC
Part Number: 16323-2
Quick Summary
Eaton 16323-2 Power Distribution Block safely distributes power in industrial control panels. Engineers often grapple with wiring complexity and crowded panels; this two‑pole design reduces wiring errors and saves space while meeting high short‑circuit requirements. RoHS compliant with manufacturer‑managed certifications; additional certification details are available on request. Operating at 600 Vac and 600 Vdc with a durable molded thermoplastic base and tin‑plated aluminum connectors, it delivers reliable performance for demanding automation environments.
Product Information
Extended Description
16323-2 Eaton: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 310A, Power distribution block, Two-pole, SCCR: 100 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector - 16323-2
Product Name
Eaton Bussmann series power distribution block
Catalog Number
16323-2
UPC
051712148726
Product Length/Depth
3.93 in
Product Height
3.17 in
Product Width
3.56 in
Product Weight
1.8 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
310A
Short-circuit rating
SCCR: 100 kAIC
Voltage rating
600 Vac, 600 Vdc
Color
Black
Material
Molded thermoplastic base, tin plated aluminum connector
Number Of Poles
Two-pole
Type
Power distribution block
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - 16323-2
600 Vac/600 Vdc rating provides versatile, safe operation across multiple power systems, enabling a single distribution solution for mixed voltages and reducing part counts. Business impact: simplified design and reduced wiring mistakes in control panels; application: industrial automation setups requiring robust voltage handling and reliable terminations. The 310 A amperage and 100 kA SCCR deliver high fault‑current protection, improving safety margins and minimizing downtime during faults. Business impact: enhanced protection for equipment and personnel; application: heavy‑duty machinery and process lines where high fault current is possible.Two‑pole construction with a molded thermoplastic base offers lightweight yet rugged housing that resists impact and deformation in busy panel spaces. Business impact: easier installation and lower mounting stress; application: compact enclosures and space‑constrained cabinets.Tin‑plated aluminum connectors provide corrosion resistance and durable terminations over long service life. Business impact: reduced maintenance and longer connector life; application: environments with exposure to moisture or humidity. RoHS compliance and documented material quality support regulatory adherence, supplier quality programs, and traceability in manufacturing settings. Business impact: smoother audits and fewer compliance delays; application: OEM assembly lines and repair shops.
Get a Quick Quote for a Eaton 16323-2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16323-2?
Enquire Now
FAQs
The 16323-2 is a two‑pole distribution block with a molded thermoplastic base and tin‑plated aluminum connectors. It fits compact control panels with 3.93 in length, 3.56 in width, and 3.17 in height, and is designed for 600 Vac/600 Vdc circuits up to 310 A. Plan for adequate clearance and heat dissipation, and verify panel mounting provisions align with the block’s dimensions.
This model features an SCCR of 100 kAIC, indicating it can safely interrupt or withstand high fault currents without compromising insulation or terminations. For machine controls and panel mains, this rating supports higher fault current scenarios and improves overall system safety and reliability.
Yes, the 16323-2 is RoHS compliant per the supplier’s specifications. Certification details are managed by the manufacturer; for formal certification documents or additional regulatory confirmations, contact Eaton directly or request documentation from your distributor.
Ideal for control panels, machine assemblies, and process equipment where a compact, two‑pole power distribution point is needed. Its 600 Vac/600 Vdc rating and 310 A capability support high‑power automation applications, while the compact footprint helps maximize usable panel space.
Tin‑plated aluminum connectors resist corrosion, promoting longer connector life and reducing maintenance intervals. The molded thermoplastic base provides impact resistance and stable mounting, contributing to lower replacement costs and longer service life in demanding environments.
