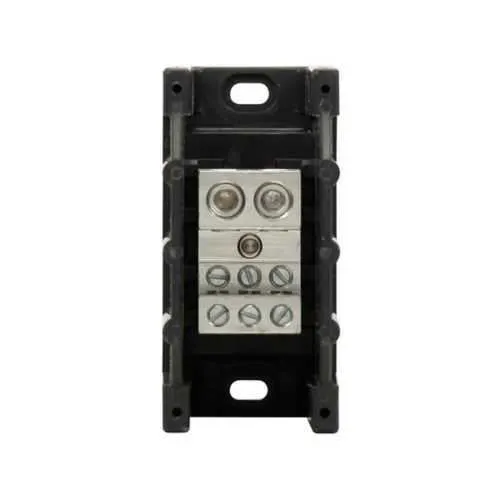

Eaton Bussmann series power distribution block - 10 kAIC
Part Number: 16325-1
Quick Summary
The Eaton Bussmann series power distribution block is a reliable solution for safe, centralized power routing in industrial control panels. Upgrading legacy panels often stalls due to insufficient short-circuit ratings, cumbersome wiring, and installation challenges. While RoHS compliant, this block provides a robust 350 A rating with SCCR of 10 kAIC and supports both 600 Vac and 600 Vdc, enabling flexible use across AC and DC systems. This combination helps engineers reduce panel footprint, simplify wiring, and meet practical safety and compliance requirements. By leveraging a compact, single-pole design with a tin-plated aluminum connector, manufacturers can streamline commissioning, improve uptime, and lower total cost of ownership in automation and power-distribution applications.
Product Information
Extended Description
16325-1 Eaton: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 350 A, Single-pole, SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Product Name
Eaton Bussmann series power distribution block
Catalog Number
16325-1
UPC
051712149297
Product Length/Depth
3.94 in
Product Height
3.19 in
Product Width
1.97 in
Product Weight
0.58 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
350 A
Short-circuit rating
SCCR: 10 kAIC
Voltage rating
600 Vac, 600 Vdc
Color
Black
Material
Molded thermoplastic base, tin plated aluminum connector
Number Of Poles
Single-pole
Type
Power distribution block
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - 16325-1
Feature → Business Impact → Application: The 350 A amperage rating with SCCR of 10 kAIC enables higher fault withstand capability, reducing the need for upstream protection devices and enabling more compact layouts in control panels used in manufacturing and process automation. Application: machine builders upgrading production lines can consolidate power routing without sacrificing safety or performance. Feature → Business Impact → Application: The 600 Vac and 600 Vdc voltage ratings provide dual compatibility for mixed-electrical environments, supporting both motor drives and DC control circuits while simplifying spare-part inventories. Application: automation cabinets requiring flexible AC/DC distribution in conveyors and packaging lines. Feature → Business Impact → Application: A molded thermoplastic base paired with a tin-plated aluminum connector delivers durable, corrosion-resistant terminals that simplify field wiring and long-term reliability. Application: panel builders needing fast, clean installations in harsh industrial settings. Feature → Business Impact → Application: Black color and compact footprint (3.94 in L × 3.19 in H × 1.97 in W) optimize panel density and aesthetics while preserving accessibility for maintenance. Application: space-constrained control enclosures in robotics and material handling. Feature → Business Impact → Application: RoHS compliance and manufacturer-backed certifications reduce compliance risk and facilitate regulatory approvals in regulated sectors. Application: aerospace, automotive, and industrial equipment where RoHS and traceability matter. Feature → Business Impact → Application: Single-pole configuration simplifies wiring topology and reduces installation errors, improving commissioning time and reducing field rework. Application: panel builders targeting high-volume installations with repeatable, scalable layouts.
Get a Quick Quote for a Eaton 16325-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16325-1?
Enquire Now
FAQs
The 16325-1 is a single-pole block with a compact footprint designed for panel mounting in industrial control cabinets. It uses a molded thermoplastic base and a tin-plated aluminum connector, supporting straightforward wiring: ensure appropriate panel cutouts and secure mounting hardware, and follow standard torque values for the connection to maximize reliability in machines and conveyors.
Yes. The block is rated for 600 Vac and 600 Vdc, with an amperage rating of 350 A and a short-circuit rating (SCCR) of 10 kAIC. This enables safe distribution in mixed-power panels, reduces the need for upstream protective devices, and supports both motor drives and DC control circuits within automation cabinets.
Absolutely. Its compact dimensions, single-pole design, and high SCCR make it well-suited for dense control panels found in robotics, material handling, and packaging lines. The combination of RoHS compliance, durable materials, and reliable connections helps maintain uptime and simplifies panel layouts in high-volume automation environments.
The 16325-1 is RoHS compliant, and manufacturer certifications are available upon request. While specific third-party certifications aren’t listed in the provided data, RoHS compliance supports regulatory alignment in many global markets, and you can obtain official certification documents from Eaton as needed for your quality and regulatory filings.
The block’s robust electrical ratings, durable materials, and compact form factor reduce wiring complexity and panel space, which lowers commissioning time and maintenance labor. Its high SCCR enhances safety margins, potentially reducing downtime from fault events and enabling simpler spare-part strategies. Overall, the 16325-1 supports faster deployments and a lower total cost of ownership in automation installations.
