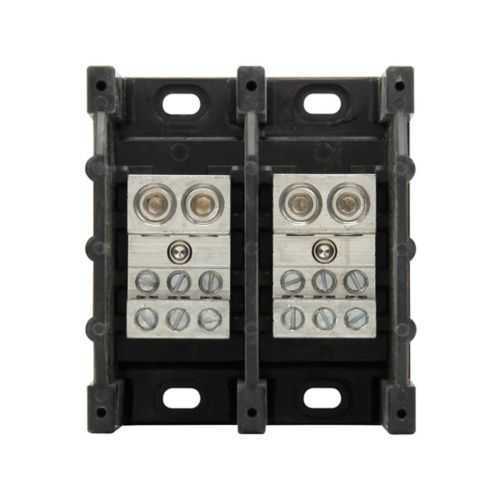

Eaton 16325-2 Power Dist Block - SCCR 10 kAIC
Part Number: 16325-2
Quick Summary
The Eaton 16325-2 Power Dist Block is a rugged power distribution block designed for industrial control panels and motor control centers. Engineers often struggle with cramped spaces, complex wiring, and insufficient short-circuit protection in critical automation deployments. This two-pole block delivers 350 A with an SCCR of 10 kAIC, compatible with both AC and DC systems, while maintaining a compact footprint. It is RoHS compliant and rated for 600 Vac and 600 Vdc, supporting reliable operation in demanding environments. By aligning with Bussmann series practices and using a molded thermoplastic base with a tin-plated aluminum connector, it enables faster installation, improved reliability, and reduced total cost of ownership for panel builders and integrators.
Product Information
Extended Description
16325-2 Eaton: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 350 A, Two-pole, SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Product Name
Eaton Bussmann series power distribution block
Catalog Number
16325-2
UPC
051712148740
Product Length/Depth
6.5 in
Product Height
3.75 in
Product Width
4.25 in
Product Weight
0.97 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
350 A
Short-circuit rating
SCCR: 10 kAIC
Voltage rating
600 Vac, 600 Vdc
Color
Black
Material
Molded thermoplastic base, tin plated aluminum connector
Number Of Poles
Two-pole
Type
Power distribution block
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - 16325-2
Feature → Business Impact → Application: High-current capability (350 A) reduces the number of required distribution blocks, lowering panel size and wiring complexity while improving reliability in MCCs and power distribution panels. Application: Heavy machinery, process automation, and batch control where high current distribution matters. Feature → Business Impact → Application: Dual AC/DC voltage rating (600 Vac, 600 Vdc) provides flexibility for mixed-supply environments, enabling universal use in facilities with both AC and DC controls. Application: Machine tools, conveyors, and control systems with mixed voltage requirements. Feature → Business Impact → Application: Short-circuit rating SCCR 10 kAIC enhances fault protection and safety margins, reducing risk of damage during faults. Application: Panels in energy-intensive processes and safety-critical applications. Feature → Business Impact → Application: Molded thermoplastic base with tin-plated aluminum connector offers corrosion resistance and durable terminations, lowering maintenance needs. Application: Harsh factory floors and service-friendly installations. Feature → Business Impact → Application: Compact two-pole design minimizes footprint, speeding layout and wire routing in constrained enclosures. Application: Small to mid-size control panels and retrofit projects. Feature → Business Impact → Application: RoHS compliant construction aligns with modern environmental standards, easing procurement and compliance audits. Application: Vehicle, automation, and factory environments requiring RoHS adherence.
Get a Quick Quote for a Eaton 16325-2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16325-2?
Enquire Now
FAQs
Yes. The 16325-2 is designed as a two-pole power distribution block compatible with Bussmann series components and standard Eaton wiring practices. Its molded thermoplastic base and tin-plated aluminum connectors ensure reliable terminations with common terminal hardware. When planning, verify enclosure clearance, conductor sizing for 350 A, and the required SCCR to match your fault-energy expectations. This reduces rework and simplifies procurement.
Key ratings include 350 A amperage, 600 Vac and 600 Vdc voltage ratings, and SCCR of 10 kAIC. These figures indicate the block can safely distribute high currents in both AC and DC control circuits while tolerating typical industrial fault currents. In panel design, this supports fewer distribution blocks and simplified wiring schemes without compromising protection margins or compliance.
Industries with demanding control panels, MCCs, conveyors, and machinery automation benefit from the 16325-2 due to its high current rating and robust fault protection. It is well-suited for machine tools, process automation, and energy-intensive systems requiring compact wiring and reliable performance under mixed voltage environments (AC/DC). Its RoHS compliance also helps in regulated manufacturing settings.
The block is RoHS compliant, aligning with environmental and material-use standards. Certifications beyond RoHS are not listed in the provided data; for formal certifications, contact Eaton to obtain the official certificates applicable to your region or project. Always verify your local electrical codes and any customer-specific standards before deployment.
The 16325-2 reduces wiring complexity with a compact two-pole footprint and straightforward terminations, cutting install time and labor costs. Its durable thermoplastic base and corrosion-resistant connectors lower maintenance intervals and rework risk. Combined with RoHS compliance, it helps streamline procurement and long-term asset management, delivering measurable total cost of ownership savings in capital projects and retrofit programs.
