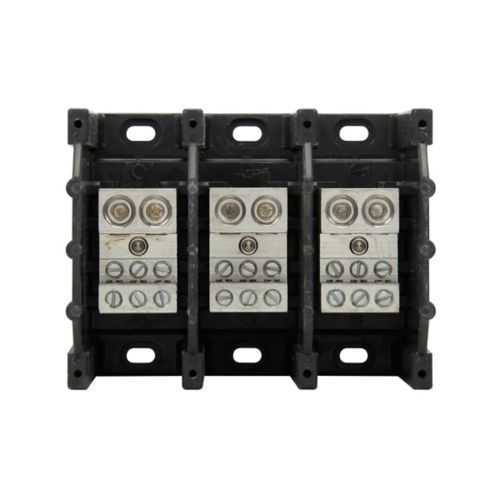

Eaton 16325-3 Power Distribution Block - SCCR 10 kAIC
Part Number: 16325-3
Quick Summary
The Eaton Bussmann series power distribution block distributes electrical power in control panels. Its compact 1 x 1 x 1 in footprint and three-pole design minimizes panel depth while simplifying wiring in space-constrained enclosures. RoHS compliant with factory certification documents and available certification documentation; rated 350 A, 600 Vac/600 Vdc, and SCCR of 10 kAIC to meet critical safety standards. This solution delivers tangible value by reducing wiring complexity, supporting faster commissioning, and improving reliability in industrial automation projects.
Product Information
Extended Description
16325-3 Eaton: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 350A, Three-pole, SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Product Name
Eaton Bussmann series power distribution block
Catalog Number
16325-3
UPC
051712148757
EAN
5027590403498
Product Length/Depth
1 in
Product Height
1 in
Product Width
1 in
Product Weight
0.089 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
350 A
Short-circuit rating
SCCR: 10 kAIC
Voltage rating
600 Vac, 600 Vdc
Color
Black
Material
Molded thermoplastic base, tin plated aluminum connector
Number Of Poles
Three-pole
Type
Power distribution block
16325-3~POWER TERM.BLK 15PK
16325-3~POWER TERM.BLK 15PK
Bussmann series Fuseology
Eaton Specification Sheet - 16325-3
Feature: 350 A Amperage Rating → Business Impact: Supports high-current loads typical of motor drives and power distribution in automation equipment → Application: Control panels and machine assemblies where robust current handling is required. Feature: 600 Vac / 600 Vdc Voltage Rating → Business Impact: Enables use with both AC and DC supplies, reducing part variety and inventory → Application: Mixed voltage panel environments in manufacturing lines. Feature: SCCR 10 kAIC → Business Impact: Improves short-circuit protection margins, lowering risk of damage and downtime → Application: High-energy equipment and safety-critical control circuits. Feature: Three-pole design with Molded Thermoplastic Base and Tin-Plated Aluminum Connectors → Business Impact: Durable, corrosion-resistant conduction with easy-term wiring and compact form factor → Application: Dense enclosures and retrofits in legacy systems. Feature: 1 in x 1 in x 1 in Footprint and 0.089 lb Weight → Business Impact: Space-saving integration reduces panel depth and shipping/installation effort → Application: Space-constrained control cabinets in packaging, material handling, and process automation. Feature: RoHS Compliant; Catalog 16325-3; 350 A, 600 Vac/600 Vdc, Black finish → Business Impact: Compliance-ready, traceable procurement with minimal compliance risk → Application: Regulatory-conscious industrial environments seeking reliable, standardized distribution blocks.
Get a Quick Quote for a Eaton 16325-3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16325-3?
Enquire Now
FAQs
The 16325-3 is a three-pole power distribution block designed for panel mounting with a compact 1 in x 1 in x 1 in footprint. It uses a molded thermoplastic base and tin-plated aluminum connectors, supporting standard wiring methods in control panels. Its specifications include 350 A amperage, 600 Vac/600 Vdc voltage rating, and SCCR of 10 kAIC, ensuring safe integration in space-limited enclosures.
Yes. The 16325-3 is rated for 600 Vac and 600 Vdc, with a 350 A amperage rating and an SCCR of 10 kAIC. These specs support high-current distribution in mixed-voltage control systems, reducing the need for multiple blocks. The tin-plated aluminum connectors and thermoplastic base are designed for reliable, long-term operation under demanding industrial conditions.
Industries such as industrial automation, machine building, packaging, and material handling benefit from the 16325-3. Its compact form factor suits dense control panels, while the 350 A rating and 10 kAIC SCCR support motor drives, power management centers, and machine controls where space is at a premium and reliability is critical.
RoHS compliance is documented for the 16325-3, with certification details available from the manufacturer upon request. Catalog and specification sheets are provided by Eaton, and additional approvals or certifications can be requested as needed to meet specific regulatory or customer requirements for your application.
The 16325-3 offers a compact footprint and simple wiring, which reduces installation time and panel space, contributing to lower labor costs and easier future upgrades. Its robust copper-free thermoplastic base and tin-plated aluminum connectors provide durable electrical performance, minimizing maintenance and reducing downtime in high-availability automation systems.
