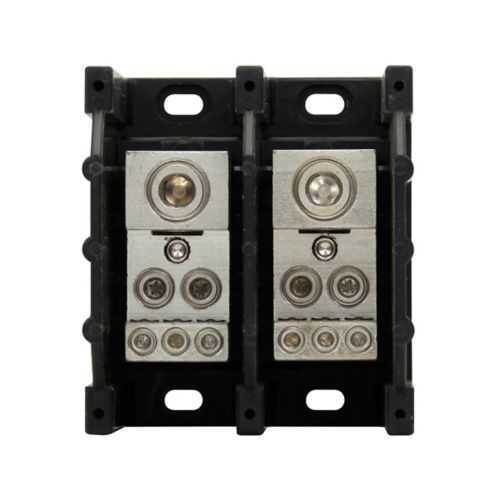

Eaton 16332-1 Power Distribution Block - SCCR 10 kAIC
Part Number: 16332-1
Quick Summary
The Eaton 16332-1 Power Distribution Block is a high-current solution designed to safely distribute power within industrial control panels and automation equipment. Engineers often struggle with limited space, complex wiring, and the need for reliable current handling in compact enclosures. This block delivers a robust 310 A rating, operates at 600 Vac or 600 Vdc, and supports an SCCR of 10 kAIC, with RoHS compliance for modern manufacturing environments. For panel builders and integrators, it translates to faster assembly, improved safety margins, and easier compliance across mixed AC/DC applications. Its thermoplastic base and tin-plated aluminum connector simplify installation, reduce maintenance overhead, and enable dependable service in harsh industrial settings.
Product Information
Extended Description
16332-1 Eaton: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 310A, Power distribution block, Single-pole, SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector - 16332-1
Product Name
Eaton Bussmann series power distribution block
Catalog Number
16332-1
UPC
051712269001
EAN
5027590216227
Product Length/Depth
3.94 in
Product Height
3.19 in
Product Width
3.59 in
Product Weight
1.9 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
310A
Short-circuit rating
SCCR: 10 kAIC
Voltage rating
600 Vac, 600 Vdc
Color
Black
Material
Molded thermoplastic base, tin plated aluminum connector
Number Of Poles
Single-pole
Type
Power distribution block
16332-1~POWER DISTRIBUTION BLOCK
16332-1~POWER DISTRIBUTION BLOCK
Bussmann series Fuseology
Eaton Specification Sheet - 16332-1
Feature: High current rating of 310 A. Business impact: Enables safe distribution of heavy loads in a single device, reducing the need for multiple interconnects and simplifying panel layouts. Application: Motor drives, presses, and other high-current automation stations benefit from a compact, centralized power block. Long-tail keywords: high current distribution block, 310A power block, industrial control panel efficiency. Feature: Wide voltage support of 600 Vac and 600 Vdc. Business impact: Supports both AC and DC control circuits within the same footprint, lowering part counts and inventory costs. Application: Hybrid systems and mixed-control environments in manufacturing lines. Long-tail keywords: 600 Vac power block, 600 Vdc control block, AC/DC compatible distribution block. Feature: Short-circuit rating of SCCR 10 kAIC. Business impact: Improves safety margins and reduces the risk of damage during fault conditions, aiding regulatory compliance. Application: High-energy panels and safety circuits in automated equipment. Long-tail keywords: SCCR 10 kAIC block, fault current rating, electrical safety in panels. Feature: Durable construction with molded thermoplastic base and tin-plated aluminum connectors. Business impact: Enhances environmental resilience and ensures reliable terminations, lowering maintenance and rework. Application: Harsh industrial environments with exposure to contaminants and vibration. Long-tail keywords: molded thermoplastic base, tin-plated connectors, corrosion resistance. Feature: Compact dimensions and light weight (3.94 in L Ă— 3.59 in W Ă— 3.19 in H; 1.9 lb). Business impact: Facilitates tight panel layouts and easier retrofits in existing equipment. Application: Enclosures with space constraints and retrofit projects. Long-tail keywords: compact power distribution block, space-saving panel components, lightweight electrical block. Feature: RoHS compliance and cataloged product. Business impact: Supports regulatory compliance and traceable procurement for approved supplier programs. Application: Automotive, machinery, and process industries with sustainability requirements. Long-tail keywords: RoHS compliant block, regulatory compliant electrical components, certified manufacturing.
Get a Quick Quote for a Eaton 16332-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16332-1?
Enquire Now
FAQs
The 16332-1 is a compact single-pole power distribution block designed for panel integration. It features a molded thermoplastic base and tin-plated aluminum connectors for reliable terminations. When installing, ensure adequate clearance for the 3.94 in length and allow space for wiring and cooling in the control panel. Verify RoHS compliance requirements for your assembly and secure appropriate mounting hardware as per panel design specifications.
The 16332-1 supports 310 A with a voltage rating of 600 Vac and 600 Vdc, and an SCCR of 10 kAIC, enabling high fault-current safety margins. It is RoHS compliant, reducing hazardous substances in the build. These specifications support safe, compliant distribution of power in industrial automation panels and mixed AC/DC systems.
Yes, the 16332-1 is rated for both AC and DC operation, with a voltage rating of 600 Vac and 600 Vdc. This makes it suitable for DC control circuits, motor drives, and other automation components that require reliable high-current distribution in DC systems as well as AC environments.
Industries such as automotive, industrial automation, manufacturing, packaging, and material handling benefit from the 16332-1. It supports panel builders and machine builders needing a compact, high-current distribution solution with reliable terminations and RoHS compliance for regulated environments.
The combination of a durable molded base and tin-plated connectors reduces corrosion risk and maintenance needs, while the block’s compact footprint simplifies installation and future upgrades. This can lower lifecycle costs, reduce downtime during wiring changes, and improve overall uptime in critical automation and control systems.
