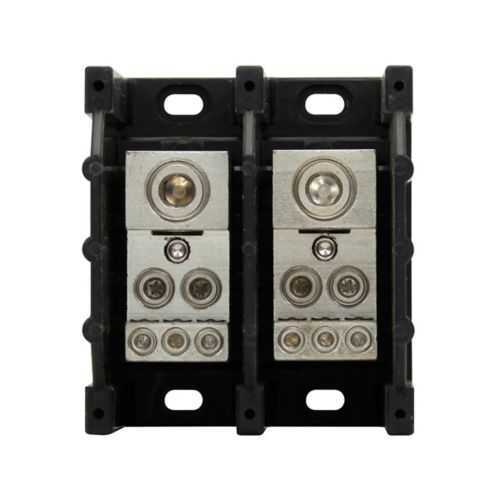

Eaton 16332-2 Power Dist Block - SCCR 10 kAIC
Part Number: 16332-2
Quick Summary
Power Distribution Block by Eaton 16332-2 delivers reliable power routing for control panels, machine builds, and other industrial applications. Engineers face space constraints, voltage diversity, and the challenge of maintaining a clear, safe, and compliant wiring scheme in tight panels. Key certifications and standards referenced include RoHS compliance and a short-circuit capability rated SCCR 10 kAIC, while the manufacturer notes to confirm CE or IP-specific certifications directly. This Bussmann series block supports a molded thermoplastic base, tin-plated aluminum connectors, 310A rating, and dual voltage (600 Vac and 600 Vdc), delivering efficiency gains, easier installation, and a scalable path for future panel expansions.
Product Information
Extended Description
16332-2 Eaton: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 310 A, Two-pole, SCCR: 10 kAIC, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Product Name
Eaton Bussmann series power distribution block
Catalog Number
16332-2
UPC
051712269018
Product Length/Depth
3.94 in
Product Height
3.19 in
Product Width
3.59 in
Product Weight
1.9 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
310A
Short-circuit rating
SCCR: 10 kAIC
Voltage rating
600 Vac, 600 Vdc
Color
Black
Material
Molded thermoplastic base, tin plated aluminum connector
Number Of Poles
Two-pole
Type
Power distribution block
16332-2~TERMINAL BLOCK
16332-2~TERMINAL BLOCK
Bussmann series Fuseology
Eaton Specification Sheet - 16332-2
Feature: 310A amperage rating. Benefit: Enables handling of high-current loads without overloading, improving reliability in main feeders and motor control circuits. Application: Large control panels and machine assemblies where peak currents approach system limits. Long-tail keywords: high-current power distribution block, 310A rating, Bussmann series block. Feature: 600 Vac / 600 Vdc voltage rating. Benefit: Supports both AC and DC control circuits from a single block, reducing component counts and simplifying wiring. Application: Mixed-voltage environments in industrial automation. Long-tail keywords: dual voltage distribution block, AC/DC rated block, panel wiring. Feature: SCCR 10 kAIC. Benefit: High fault-current capability enhances safety margins and protects equipment, minimizing downtime during faults. Application: Panels with motor drives or high-inertia loads. Long-tail keywords: SCCR 10 kAIC, short-circuit rating. Feature: Material and construction. Benefit: Molded thermoplastic base with tin-plated aluminum connectors provides robust mechanical integrity and corrosion resistance. Application: Harsh manufacturing environments and long service life. Long-tail keywords: molded thermoplastic base, tin-plated connectors. Feature: Compact footprint. Benefit: 3.94 in L Ă— 3.59 in W Ă— 3.19 in H with 1.9 lb weight enables dense panel layouts and easier enclosure access. Application: Space-constrained control cabinets. Long-tail keywords: compact power distribution block, space-saving panel component. Feature: RoHS compliance. Benefit: Supports regulatory compliance in electronics manufacturing and end-of-line assembly. Application: Regulated industries requiring RoHS. Long-tail keywords: RoHS compliant block, regulatory compliance in electrical components.
Get a Quick Quote for a Eaton 16332-2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16332-2?
Enquire Now
FAQs
To install the 16332-2, first de-energize the panel and verify compatibility with your enclosure. Mount the block using standard hardware, then terminate conductors to the tin-plated aluminum connectors following Eaton’s datasheet guidance. Ensure proper clearance and protective covers are in place. Verify the wiring meets the 600 Vac/600 Vdc rating and maintain the SCCR 10 kAIC capability for fault conditions. Adhere to all safety procedures and torque specs from the manufacturer to ensure reliable operation.
The 16332-2 is a two-pole power distribution block rated for 310 A with voltage ratings of 600 Vac and 600 Vdc. It provides SCCR protection up to 10 kAIC, enabling safe operation in high fault-current environments. The block uses a molded thermoplastic base with tin-plated aluminum connectors, and comes in black. It is RoHS compliant and designed for compact control panels with space-saving considerations.
Yes, the 16332-2 is well-suited for space-constrained panels due to its compact footprint: 3.94 in length, 3.59 in width, and 3.19 in height, with a weight of about 1.9 lb. Its two-pole design and dual voltage capability help reduce part counts. When used in high-density layouts, ensure proper mounting clearances and cable routing to maintain serviceability and thermal performance.
The 16332-2 is RoHS compliant, aligning with regulatory requirements for electronics manufacturing. The short-circuit rating is specified as SCCR 10 kAIC, indicating protection against high fault currents. For additional certifications such as CE or IP ratings, it is recommended to confirm directly with Eaton, as certain regional or application-specific certifications may vary by production lot.
Adopting the 16332-2 can lower maintenance and wiring complexity in control panels by consolidating power distribution into a single, robust block. The high SCCR and dual-voltage support reduce the need for multiple components, improving reliability and uptime. The RoHS compliance and durable materials minimize replacement costs and downtime due to environmental wear and connectivity issues.
