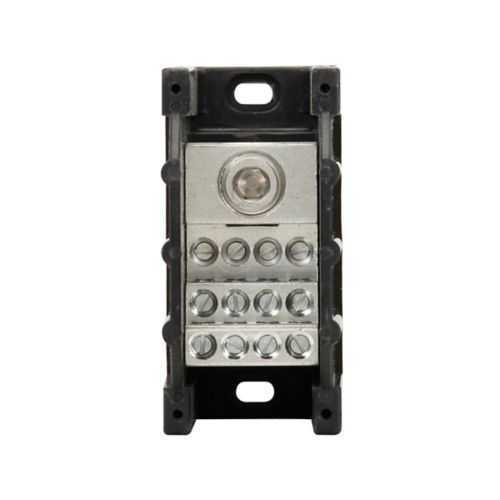

Eaton 16370-1 Power Distribution Block - SCCR 100 kAIC
Part Number: 16370-1
Quick Summary
Eaton 16370-1 power distribution block provides reliable power distribution for industrial control panels and motor control centers. These environments often struggle with space constraints, wiring complexity, and meeting high fault-current requirements in compact enclosures. It supports 600 Vac and 600 Vdc, 310 A, with SCCR of 100 kAIC, and uses a molded thermoplastic base with tin-plated aluminum connectors. RoHS compliant options support regulatory programs, while its compact footprint helps reduce enclosure size and wiring tangles. By combining robust electrical ratings with straightforward installation, it enables faster panel builds, easier maintenance, and a lower total cost of ownership in automation projects.
Product Information
Extended Description
16370-1 Eaton: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 310 A, Single-pole, SCCR: 100 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Product Name
Eaton Bussmann series power distribution block
Catalog Number
16370-1
UPC
051712271349
Product Length/Depth
3.97 in
Product Height
3.18 in
Product Width
1.95 in
Product Weight
0.75 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
310A
Short-circuit rating
SCCR: 100 kAIC
Voltage rating
600 Vac, 600 Vdc
Color
Black
Material
Molded thermoplastic base, tin plated aluminum connector
Number Of Poles
Single-pole
Type
Power distribution block
High-current capability and voltage range: 310 A with 600 Vac and 600 Vdc support, SCCR of 100 kAIC. Business impact: reduces the need for multiple blocks and simplifies fault-current handling. Application: motor control centers and high-demand power distribution in industrial panels. Durable construction: molded thermoplastic base with tin-plated aluminum connectors provides insulation and corrosion resistance. Business impact: improves long-term reliability and maintains low contact resistance. Application: harsh manufacturing environments and outdoor enclosures where reliability matters. Compact footprint: 3.97 in L Ă— 1.95 in W Ă— 3.18 in H and 0.75 lb weight. Business impact: frees panel space and simplifies installation, improving accessibility. Application: space-constrained control panels and compact assemblies. Single-pole design: straightforward wiring with reduced wiring complexity. Business impact: faster wiring, easier troubleshooting, and lower labor costs. Application: centralized single-circuit distribution within panels. RoHS compliance: ensures regulatory alignment and easier supplier qualification. Business impact: supports sustainability goals and procurement requirements. Application: compliance-focused automation projects. Documentation availability: specification sheets and data packs support engineering reviews. Business impact: reduces design risk and accelerates BOM decisions. Application: engineering and procurement workflows in automation projects.
Get a Quick Quote for a Eaton 16370-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16370-1?
Enquire Now
FAQs
The 16370-1 is designed for single-pole distribution with a 310 A rating and 600 Vac/600 Vdc voltage. Install on a suitable panel substrate using standard terminal connections with tin-plated aluminum conductors. Ensure the enclosure and wiring comply with RoHS requirements and verify SCCR conditions before energizing. The compact 3.97 in length helps fit tight panels and reduces wiring complexity.
Key ratings include 600 Vac and 600 Vdc voltage, a 310 A amperage rating, and an SCCR of 100 kAIC. It is a single-pole power distribution block with a black molded thermoplastic base and tin-plated aluminum connectors. Compliance is RoHS-based, and certification details should be confirmed with the manufacturer for specific regulatory needs.
Yes. The part is RoHS compliant per factory documentation. This supports regulatory compliance in modern production environments. When sourcing, reference the 16370-1 catalog number and verify RoHS status with Eaton during supplier qualification to ensure alignment with your sustainability and electronics-recycling programs.
Best suited for industrial control panels and motor control centers that require reliable high-current distribution in a compact footprint. The 600 Vac/600 Vdc rating, 310 A capacity, and 100 kAIC SCCR enable efficient power distribution for demanding equipment while reducing the number of components in a panel. Its compact form supports space-constrained automation layouts.
Official resources include the Eaton Specification Sheet for 16370-1 and the 16370-1~POWER DIST. BLOCK 24PK data sheet. You can also view the Bussmann series Fuseology multimedia resource for integration context. These documents provide sizing, installation guidance, and compatibility details to support engineering reviews and BOM decisions.
