Eaton 16372-1 Power Distribution Block - SCCR 10 kAIC
Part Number: 16372-1
Quick Summary
Eaton Bussmann series power distribution block 16372-1 provides compact, safe power distribution for industrial control panels. Engineers often struggle with space constraints, high current demands, and reliable termination in harsh environments. With a 600 Vac/600 Vdc rating, SCCR of 10 kAIC, and RoHS compliance, this block meets critical safety and regulatory expectations. Its single-pole design minimizes wiring complexity while enabling scalable, chassis-friendly panel layouts for motor drives and automation, reducing downtime and total cost of ownership. When paired with other Eaton Bussmann power-management components, it supports reliable, cost-efficient panel wiring across diverse industrial applications.
Product Information
Extended Description

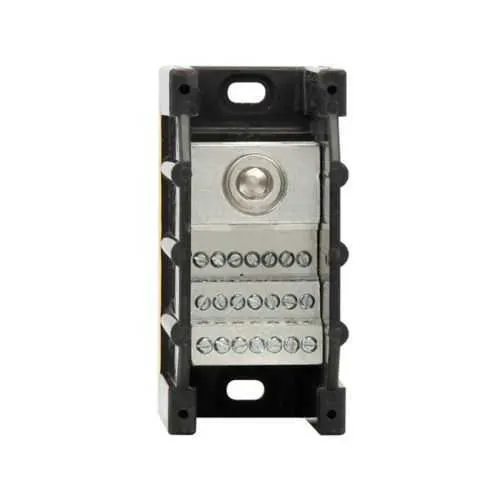

16372-1 Eaton: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 310A, Power distribution block, Single-pole, SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector - 16372-1
Product Name
Eaton Bussmann series power distribution block
Catalog Number
16372-1
UPC
051712148870
Product Length/Depth
1.84 in
Product Height
1.6 in
Product Width
1.99 in
Product Weight
0.74 lb
Warranty
Not Applicable
Compliances
RoHS Compliant Contact factory
Amperage Rating
310A
Short-circuit rating
SCCR: 10 kAIC
Voltage rating
600 Vac, 600 Vdc
Color
Black
Material
Molded thermoplastic base, tin plated aluminum connector
Number Of Poles
Single-pole
Type
Power distribution block
Feature: High current and voltage ratings deliver capacity for demanding control panels. Benefit: Supports 310 A continuous loads with 600 Vac and 600 Vdc, reducing the need for multiple smaller blocks and simplifying protection schemes. Application: Panel feeders for servo drives and variable-frequency drives in automation lines. Feature: SCCR 10 kAIC provides robust short-circuit protection. Benefit: Improves safety and minimizes arc-flash risk while allowing downstream protective devices to be coordinated more efficiently. Application: Motor control centers and power distribution within industrial plants. Feature: Molded thermoplastic base with tin-plated aluminum connector. Benefit: Offers durable insulation and reliable termination with low contact resistance, improving long-term performance and reducing maintenance. Application: Harsh manufacturing environments with exposure to dust and humidity. Feature: Compact footprint and single-pole configuration. Benefit: Enables dense panel layouts and easier retrofit in existing cabinets, saving real estate and installation time. Application: Retrofits in legacy control panels and new machine builds. Feature: RoHS compliant with data-sheet ready disclosures. Benefit: Ensures regulatory compliance and eases cross-border procurement, supporting green design initiatives. Application: Global manufacturing facilities needing compliant electrical components. Feature: Clear specifications and compatibility notes (600 Vac/600 Vdc, 310 A, 1.84 in length, 1.6 in height, 1.99 in width). Benefit: Predictable form factor simplifies BOMs and installation planning. Application: Panel design and enclosure planning for automation and distribution.
Get a Quick Quote for a Eaton 16372-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16372-1?
Enquire Now
FAQs
To install 16372-1, mount the device in a clean, ventilated panel area with minimal vibration. Ensure the mounting surface is flat and use appropriate hardware to secure the single-pole block. Leave enough clearance for termination access and future maintenance. Termination should follow manufacturer torque recommendations and use compatible lugs or connectors designed for tin-plated aluminum contacts.
SCCR 10 kAIC indicates the short-circuit current rating the block can withstand without failure. This enhances safety by limiting arc energy during faults and supports proper coordination with upstream protective devices. For motor drives and automation panels, it reduces the need for excessive protective devices and helps meet system-level safety requirements.
Yes, the 16372-1 is rated for 600 Vdc and single-pole configurations, making it suitable for DC bus distribution in appropriate braking or energy recovery sections of a panel. Always verify wiring, insulation, and connector compatibility with your DC bus design and confirm with the datasheet for your specific application.
The unit is RoHS compliant and designed for modern electrical assemblies. For additional certifications beyond RoHS, contact the factory to confirm availability. This helps ensure regulatory alignment for global manufacturing and simplifies cross-border procurement in equipment builds.
The 16372-1 reduces wiring complexity and improves termination reliability, leading to lower maintenance needs and reduced downtime. Its durable thermoplastic base and tin-plated aluminum connector provide long service life under industrial conditions, translating to lower replacement frequency and improved uptime in automation environments.
