Eaton 16373-3 Power Distribution Block - SCCR 10 kAIC
Part Number: 16373-3
Quick Summary

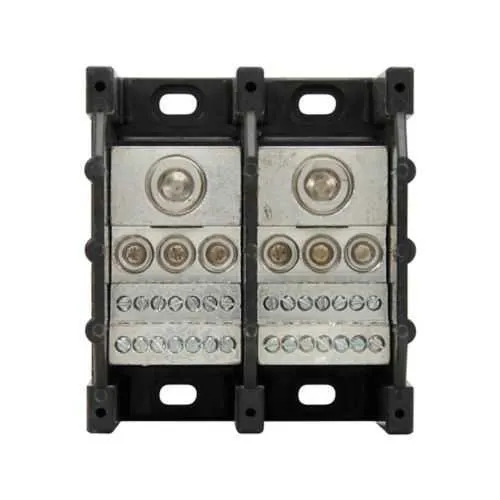

Eaton 16373-3 Power Distribution Block delivers compact high-current power distribution for industrial panels and control cabinets. Design engineers often struggle with space, wiring errors, and regulatory compliance when building reliable control systems. This block supports 600 Vac and 600 Vdc, a 310 A rating, and SCCR of 10 kAIC, while RoHS compliance helps streamline procurement. With a molded thermoplastic base and tin-plated aluminum connectors, it offers insulation, durability, and corrosion resistance in challenging environments. Its three-pole design enables clean, safe distribution across three phases, reducing installation time and spare-part complexity. In short, 16373-3 accelerates safer deployments in automation projects and aligns with Bussmann fuse strategies for unified protection.
Product Information
Extended Description
16373-3 Eaton: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 310A, Power distribution block, Three-pole, SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector - 16373-3
Product Name
Eaton Bussmann series power distribution block
Catalog Number
16373-3
UPC
051712556224
Product Length/Depth
3.98 in
Product Height
3.22 in
Product Width
3.35 in
Product Weight
1.26 lb
Warranty
Not Applicable
Compliances
RoHS Compliant Contact factory
Amperage Rating
310A
Short-circuit rating
SCCR: 10 kAIC
Voltage rating
600 Vac, 600 Vdc
Color
Black
Material
Molded thermoplastic base, tin plated aluminum connector
Number Of Poles
Three-pole
Type
Power distribution block
Feature → Three-pole design supports balanced three-phase distribution, enabling predictable electrical performance and straightforward wiring. Business Impact → Reduces panel complexity and wiring errors, speeding installation and improving first-pass commissioning in automated systems. Application → Ideal for industrial control panels and machine builds requiring reliable three-phase power routing and clear phase separation. Feature → 310 A amperage rating provides substantial current capacity without oversized housings. Business Impact → Improves load handling while maintaining a compact footprint, lowering enclosure size needs and cooling requirements. Application → Suitable for motor controls and high-current feeder blocks in automation racks. Feature → 600 Vac / 600 Vdc voltage ratings ensure versatility across AC and DC bus configurations. Business Impact → Simplifies multi-voltage panel design and reduces parts diversity, cutting procurement costs. Application → Used in servo drives, power racks, and mixed-voltage control architectures. Feature → SCCR of 10 kAIC enhances short-circuit protection capability. Business Impact → Supports safer panel designs and reduces upstream protective device requirements. Application → Critical for high-energy automation lines and safety-rated installations. Feature → Molded thermoplastic base with tin-plated aluminum connectors offers durable insulation and reliable terminations. Business Impact → Delivers corrosion resistance and long-term reliability in harsh environments while maintaining low weight. Application → Front-end Power Distribution blocks in rugged industrial environments. Feature → RoHS compliance with manufacturer datasheets supports compliant procurement and easy sourcing. Business Impact → Simplifies supply chain and regulatory alignment while enabling compatibility with Eaton Bussmann fuse products. Application → Broadly suitable for modern automation installations seeking unified protection strategies.
Get a Quick Quote for a Eaton 16373-3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16373-3?
Enquire Now
FAQs
Install by mounting the unit in a suitable enclosure, align with three-pole terminations, and connect conductors to the tin-plated aluminum terminals. Use the molded thermoplastic base for insulation and short-circuit containment. Always follow the manufacturer’s torque specs and refer to the Eaton 16373-3 datasheet during layout to ensure proper clearance and secure termination.
The 16373-3 is rated for 600 Vac and 600 Vdc with a 310 A capacity and SCCR of 10 kAIC, enabling safe power distribution for both AC and DC buses in industrial controls. Its three-pole design supports balanced phase distribution, while the molded base and tin-plated connectors provide reliable insulation and corrosion resistance in challenging environments.
This block is well-suited for industrial control panels, motor control centers, and machine-build enclosures where high-current, three-phase distribution is needed. Its compact footprint and robust construction support efficient panel layouts, quicker wiring, and easier maintenance within automation and process control environments.
The 16373-3 carries RoHS compliance and data suggests UL-recognized documentation from Eaton's datasheets. For CE or additional third-party certifications, consult the factory. The block also features a high SCCR of 10 kAIC, which supports safe operation in demanding industrial applications.
The combination of a three-pole design, 310 A rating, and 10 kAIC SCCR reduces wiring errors and protective-device coordination complexity, lowering commissioning time and maintenance costs. The tin-plated aluminum terminations improve durability, while RoHS compliance simplifies sourcing, contributing to lower total cost of ownership in automation projects.
