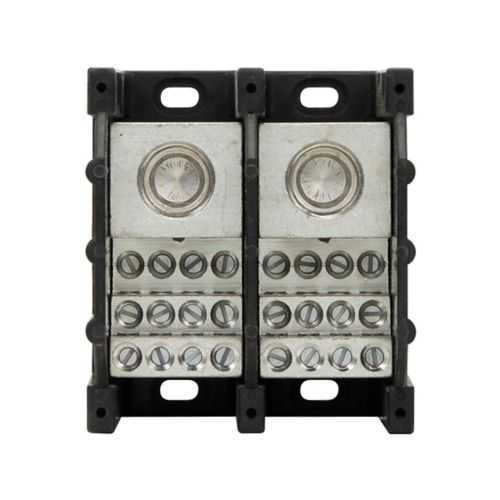

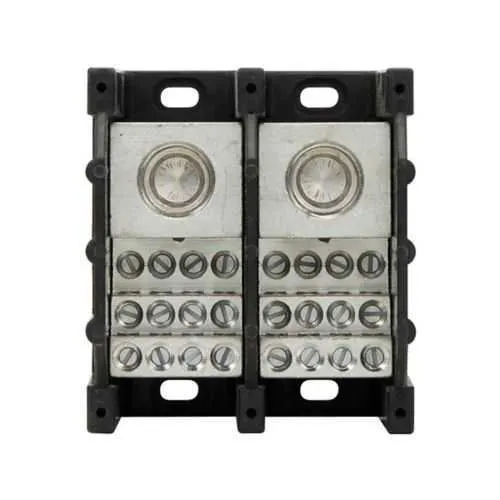

Eaton 16375-1 Power distribution block - 10 kAIC
Part Number: 16375-1
Quick Summary
The Eaton 16375-1 power distribution block provides compact, single-pole power distribution for 420 A in industrial control panels. Engineers often battle crowded control enclosures, wiring errors, and the challenge of meeting high fault-current ratings in demanding environments. This Bussmann-series block offers a 600 Vac/600 Vdc rating and a 10 kAIC SCCR, with RoHS compliance and manufacturer certifications to validate suitability. By combining a rugged molded thermoplastic base with a tin-plated aluminum connector, it delivers reliable connectivity while helping reduce maintenance costs and save valuable panel space in automation, motor control, and power-distribution networks.
Product Information
Extended Description
16375-1 Eaton: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 420 A, Single-pole, SCCR: 10 kAIC, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Product Name
Eaton Bussmann series power distribution block
Catalog Number
16375-1
UPC
051712271493
Product Length/Depth
6.5 in
Product Height
3.7 in
Product Width
4 in
Product Weight
1.47 lb
Warranty
Not Applicable
Compliances
RoHS Compliant Contact factory
Certifications
Contact Manufacturer
Amperage Rating
420A
Short-circuit rating
SCCR: 10 kAIC
Voltage rating
600 Vac, 600 Vdc
Color
Black
Material
Molded thermoplastic base, tin plated aluminum connector
Number Of Poles
Single-pole
Type
Power distribution block
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - 16375-1
Feature → Business Impact → Application: Amperage rating of 420 A enables safe, centralized power distribution for high-load automation panels, reducing the number of parallel blocks and simplifying circuit protection coordination. This translates to lower wiring complexity and faster assembly in control cabinets for manufacturing lines and packaging equipment. Application: automation panels, CNC machines, and robotic work cells. Feature → Business Impact → Application: Voltage rating of 600 Vac and 600 Vdc supports dual‑voltage applications with a single device, minimizing component counts and enabling simpler maintenance in mixed electrical environments. Application: process automation and machine controls. Feature → Business Impact → Application: Short-circuit rating of SCCR 10 kAIC provides robust protection against fault currents, improving safety margins and compliance in high-energy systems. Application: motor drives and switchgear interfaces. Feature → Business Impact → Application: Molded thermoplastic base and tin‑plated aluminum connector deliver durable, corrosion-resistant connections with reliable conductivity, reducing contact resistance and maintenance frequency. Application: harsh manufacturing floors and outdoor equipment enclosures. Feature → Business Impact → Application: Compact footprint (6.5 in L x 4 in W x 3.7 in H) and weight of 1.47 lb streamline panel layout, enabling easier retrofits and scalable expansion in control rooms and automation racks.
Get a Quick Quote for a Eaton 16375-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16375-1?
Enquire Now
FAQs
The 16375-1 uses a single-pole design with a molded thermoplastic base and tin-plated aluminum connectors. Its footprint is 6.5 in long, 4 in wide, and 3.7 in high, with a weight of 1.47 lb. Install with standard terminal torque per Eaton datasheet and ensure conductor sizing supports up to 420 A, keeping clearances and labeling compliant with panel requirements.
The block is rated for 420 A, with voltage ratings of 600 Vac and 600 Vdc, and a short-circuit rating (SCCR) of 10 kAIC. These specs support high-current distribution in automation panels while maintaining safe fault-current performance and enabling coordinated protection with upstream devices.
Yes, the 16375-1 is RoHS compliant per general specifications. Certifications are listed as 'Contact Manufacturer' for formal documentation, so verify CE, SIL, or IP requirements with Eaton. The unit uses a robust connector system and a durable molded base to withstand industrial environments while supporting compliance workflows.
The compact form factor and single-pole design simplify wiring topology, reducing harness complexity and potential miswiring. Tin-plated aluminum connectors provide reliable contact and ease of torque control, while RoHS compliance helps future-proof procurement. These features translate to faster commissioning, fewer maintenance events, and lower total cost of ownership in panel builds.
Ideal for automation panels, motor control centers, and other power-distribution points in manufacturing, packaging, and process industries. Its high current rating, dual voltage capability, and robust SCCR support reliable operation in harsh environments, making it well-suited for new installations or retrofits in industrial machinery and control systems.
