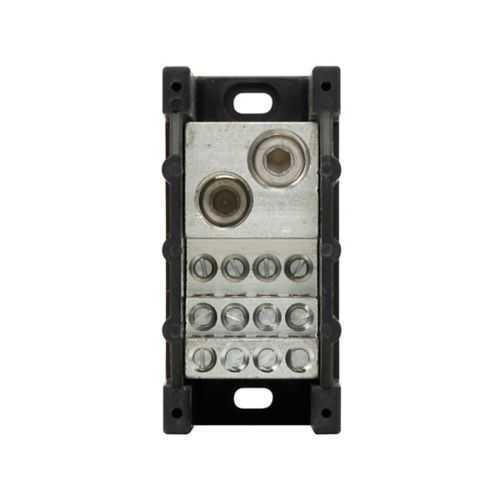

Eaton 16377-1 Power Distribution Block - SCCR 10 kAIC
Part Number: 16377-1
Quick Summary
Power distribution block from Eaton 16377-1 provides reliable, high-current distribution for industrial control panels. Engineers often struggle with limited SCCR ratings and wiring flexibility in compact enclosures, driving the need for a robust block. With 570 A amperage, 600 Vac/600 Vdc voltage ratings, SCCR of 10 kAIC, and RoHS compliance, it supports safe, code-conforming installations. The single-pole Bussmann series block uses a molded thermoplastic base and tin-plated aluminum connectors for durable performance in harsh environments. At just 0.83 lb and a compact footprint, it simplifies panel layouts and reduces assembly time, delivering tangible total cost of ownership benefits.
Product Information
Extended Description
16377-1 Eaton: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 570 A, Single-pole, SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Product Name
Eaton Bussmann series power distribution block
Catalog Number
16377-1
UPC
051712556415
EAN
5027590191517
Product Length/Depth
3.96 in
Product Height
3.21 in
Product Width
1.97 in
Product Weight
0.83 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
570A
Short-circuit rating
SCCR: 10 kAIC
Voltage rating
600 Vac, 600 Vdc
Color
Black
Material
Molded thermoplastic base, tin plated aluminum connector
Number Of Poles
Single-pole
Type
Power distribution block
16377-1~POWER DIST. BLOCK 24PK
16377-1~POWER DIST. BLOCK 24PK
Bussmann series Fuseology
Eaton Specification Sheet - 16377-1
Feature: The 570 A amperage rating supports large downstream loads without needing multiple blocks. Business Impact: Fewer components mean shorter install times and fewer potential failure points, lowering total costs. Application: Ideal for machine power distribution in presses, conveyors, and integrated packaging lines. Feature: Dual voltage capability (600 Vac and 600 Vdc) offers flexibility across AC and DC control circuits. Business Impact: Simplifies design and reduces part counts when serving mixed-supply equipment. Application: Integration in industrial control panels and drive systems where both AC and DC feeders exist. Feature: SCCR 10 kAIC with a single-pole design provides robust short-circuit protection in shared bus environments. Business Impact: Improves panel safety margins and code compliance without dedicated fuse blocks. Application: Protective distribution in power cabinets within heavy manufacturing. Feature: Molded thermoplastic base and tin-plated aluminum connectors enhance durability and corrosion resistance. Business Impact: Longer service life in harsh environments with reduced maintenance. Application: Enclosures subject to vibration, humidity, and dust. Feature: RoHS compliant, lightweight design at 0.83 lb with a compact footprint of 3.96 in x 3.21 in x 1.97 in. Business Impact: Regulatory compliance and space savings, enabling easier retrofits and new builds in space-constrained panels. Application: Control panels in automotive, packaging, and material handling environments.
Get a Quick Quote for a Eaton 16377-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16377-1?
Enquire Now
FAQs
For installation, ensure adequate clearance around the block for heat dissipation and access to contacts. Verify panel knockout placement aligns with the 3.96 in length and 1.97 in width, then secure the molded thermoplastic base to a rigid mounting surface. Use the tin-plated aluminum connectors for reliable, corrosion-resistant connections and follow Eaton datasheet guidelines for torque specs and wiring practices.
The 16377-1 supports up to 570 A continuous current, with voltage ratings of 600 Vac and 600 Vdc. It provides an SCCR of 10 kAIC and is a single-pole block in a compact housing. Applications span industrial control panels and machine power distribution, ensuring high-current performance within a small footprint.
Yes, the 16377-1 is RoHS compliant, meaning it limits hazardous substances in its construction to support regulatory compliance and safer disposal. This is beneficial for cost-effective procurement, environmental responsibility, and meeting customer and project-specific green initiatives in industrial equipment assemblies.
Industries such as automotive, packaging, material handling, and general machine builders benefit due to the block’s high current rating, compact form, and robust connectors. It suits control panels, drives, and power distribution within rugged environments, enabling design simplification and faster installation in space-constrained enclosures.
Official documentation including the Eaton 16377-1 datasheet and Bussmann catalogs are available from Eaton’s site and partner portals. These resources provide wiring diagrams, torque specs, mounting guidelines, and application notes to support compliant, efficient installations in industrial control panels.
