Eaton 16377-2 Power dist block - SCCR 10 kAIC
Part Number: 16377-2
Quick Summary
The Eaton Bussmann series power distribution block 16377-2 delivers reliable high-current distribution for industrial panels. Engineers often wrestle with space constraints, complex wiring, and meeting stringent safety ratings in compact control cabinets. RoHS compliant; certification specifics vary by region and should be confirmed with the manufacturer. Regional CE and other standards may apply depending on installation, and the unit supports up to 570 A at 600 Vac/600 Vdc. This combination enables efficient power routing in modular automation environments.
Product Information
Extended Description

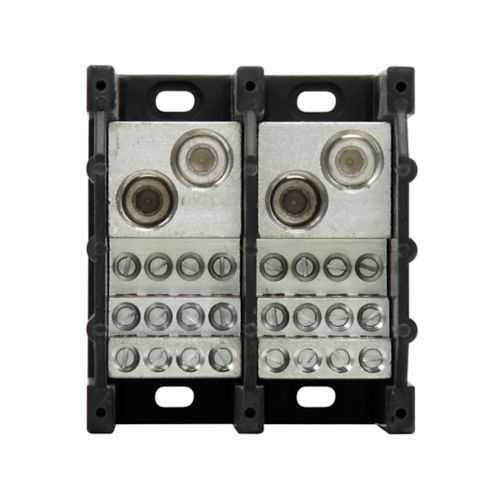

16377-2 Eaton: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 570 A, Two-pole, SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Product Name
Eaton Bussmann series power distribution block
Catalog Number
16377-2
UPC
051712556422
EAN
5027590141925
Product Length/Depth
3.57 in
Product Height
3.96 in
Product Width
3.19 in
Product Weight
1.37 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
570A
Short-circuit rating
SCCR: 10 kAIC
Voltage rating
600 Vac, 600 Vdc
Color
Black
Material
Molded thermoplastic base, tin plated aluminum connector
Number Of Poles
Two-pole
Type
Power distribution block
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - 16377-2
The 16377-2 delivers high-current capability in a compact footprint, enabling electricians to route feeders without sacrificing panel space. The 570 A rating and 600 Vac/600 Vdc voltage support robust automation loads while the SCCR of 10 kAIC enhances safety during fault scenarios. The molded thermoplastic base provides insulation and resistance to mechanical wear, while the tin-plated aluminum connector ensures reliable, low-resistance contacts, reducing maintenance and heat generation in dense panels. Its two-pole design simplifies wiring and reduces terminal count, improving installation speed and reducing errors during cabling. Weighing just 1.37 lb with a 3.19 in width, 3.57 in depth, and 3.96 in height, it fits neatly in compact enclosures. Compliance with RoHS lowers hazardous substance exposure, and compatibility with Bussmann catalogs aids spare-parts logistics for maintenance teams.
Get a Quick Quote for a Eaton 16377-2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16377-2?
Enquire Now
FAQs
The 16377-2 is a two-pole block with a molded thermoplastic base and tin-plated aluminum connectors. Its footprint 3.19 W x 3.57 D x 3.96 H and weight of 1.37 lb suit compact control panels. Use standard Bussmann series mounting hardware; plan for adequate clearance and RoHS compliance during wiring.
The block is rated for 570 A, with voltage ratings of 600 Vac and 600 Vdc, and an SCCR of 10 kAIC. It is a two-pole device designed to safely distribute power in demanding automation environments while maintaining reliable connections.
Ideal for panel power distribution in control cabinets and compact machinery, especially where space is at a premium. Its high current capability and robust connectors support feeders for CNC machines, robotics, and process equipment in automated lines.
The 16377-2 is RoHS compliant, with manufacturer-provided certification details. Region-specific CE or other standards may be available; confirm current approvals with Eaton to ensure compliance for your installation.
Its compact footprint and light weight simplify mounting in tight panels, while tin-plated aluminum connectors offer reliable, low-resistance contacts. The simple two-pole design reduces wiring complexity, and RoHS compliance minimizes hazardous substance handling, aiding long-term maintenance and spare-parts planning.
