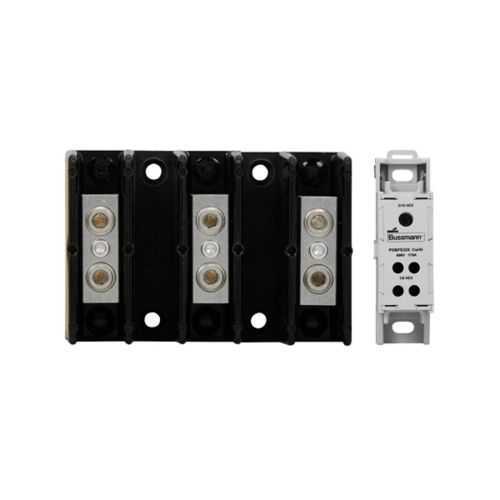

Eaton 16400-G1 Power Distribution Block - SCCR 10 kAIC
Part Number: 16400-G1
Quick Summary
Eaton Bussmann series power distribution block streamlines high‑current panel wiring for industrial power distribution. Engineers often struggle with achieving reliable short‑circuit ratings and compact layouts in heavy‑duty electrical cabinets. Notable considerations include SCCR performance, voltage rating, and material durability; the 16400-G1 addresses these with a 10 kAIC SCCR, 600 Vac/600 Vdc ratings, and a robust molded thermoplastic base with tin‑plated aluminum connectors. This solution also supports scalable installations in tight spaces and aligns with high‑density control panels, delivering safety and efficiency for plant automation and power management applications.
Product Information
Extended Description
16400-G1 Eaton: Eaton Bussmann series power distribution block, Barrier, 1520 A, 600 Vac, 600 Vdc, Black, Molded thermoplastic base material, 10 kAIC short circuit rating, Tin-plated aluminum connector material
Product Name
Eaton Bussmann series power distribution block
Catalog Number
16400
UPC
051712577113
EAN
5704057000093
Product Length/Depth
0.001 in
Product Height
3.32 in
Product Width
4 in
Product Weight
2.1 lb
Warranty
Not Applicable
Compliances
Contact factory
Certifications
Contact Manufacturer
Amperage Rating
1520A
Short-circuit rating
SCCR: 10 kAIC
Voltage rating
600 Vac, 600 Vdc
Color
Black
Material
Molded thermoplastic base, tin plated aluminum connector
Type
Power distribution block
Feature: 1520A amperage rating enables handling large feeder currents without needing multiple blocks in parallel. Impact: reduces wiring complexity, lowers footprint, and improves system reliability. Application: main feeders and large distribution circuits in manufacturing lines and data centers. Feature: 10 kAIC short‑circuit rating (SCCR) enhances upstream protection coordination and safety, allowing simpler protection schemes and fewer upstream components. Impact: lowers total installed cost while boosting protection margins. Application: panel boards and switchgear assemblies in harsh industrial environments. Feature: 600 Vac / 600 Vdc voltage rating supports both AC and DC distribution in mixed‑voltage systems, enabling universal integration with motor drives and DC buses. Impact: versatile use across equipment, reducing part counts. Application: machine controls, feeders, and utility‑grade power centers. Feature: Black molded thermoplastic base with tin‑plated aluminum connectors provides durable isolation and corrosion resistance in demanding settings. Impact: long‑term reliability and reduced maintenance. Application: outdoor enclosures and humid plant environments. Feature: Compact 3.32 in height and 4 in width footprint with a barrier design improves installation density and simplifies panel layout. Impact: higher wiring density and easier routing. Application: confined control panels and compact electrical cabinets. Feature: Includes industry documentation and access to Eaton specification sheets for quick engineering reference, aiding standardization and procurement. Impact: faster specification, lower project risk, and consistent performance across sites. Application: engineering design reviews and procurement workflows in automation projects.
Get a Quick Quote for a Eaton 16400-G1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16400-G1?
Enquire Now
FAQs
Start with de‑energizing the panel and verifying enclosure clearance. Align the 16400‑G1 with the barrier provisions, secure the molded thermoplastic base to the panel surface, and terminate feeders with the tin‑plated aluminum connectors. Use proper torque per Eaton guidelines, route conductors to minimize cross‑talk, and ensure clear labeling for safe operation and future maintenance.
The 16400-G1 is rated at SCCR 10 kAIC with 600 Vac and 600 Vdc. This matters because it defines the maximum fault current the block can safely interrupt, influencing protection coordination and component selection upstream. Accurate SCCR ratings help prevent nuisance tripping and improve overall system reliability in high‑current applications.
Yes. With a 1520A amperage rating and 10 kAIC SCCR, the 16400‑G1 supports large feeders within robust control panels. Its barrier design and durable connectors minimize resistance and heat buildup, enabling reliable operation in demanding environments such as manufacturing cells and processing lines.
Compliances and certifications for the 16400‑G1 are noted as 'Contact factory' and 'Contact Manufacturer' in the data, so confirm with Eaton for the latest certifications (SCCR compliance, material safety, and regional standards). This ensures alignment with your local regulatory requirements and installation standards.
The 16400‑G1 delivers long‑term reliability through a durable thermoplastic base and corrosion‑resistant tin‑plated connectors, reducing contact resistance and maintenance. Its high current rating and compact footprint lower panel space needs and wiring complexity, which translates to faster assembly, reduced downtime, and lower total cost of ownership over the system life cycle.
