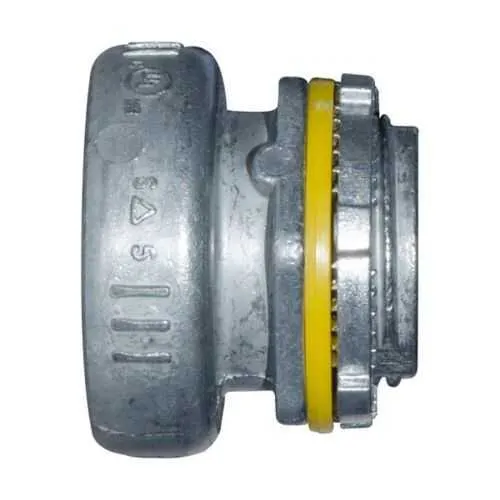

Eaton 1651RTQ Push-in Raintight Connector - EMT
Part Number: 1651RTQ
Quick Summary
1651RTQ push-in raintight connector delivers fast, reliable EMT terminations for industrial electrical enclosures. In harsh environments, manual threading or disassembly can slow installations and invite moisture ingress. This unit is NEC/CEC compliant, UL listed for both U.S. and Canadian use, and designed for ordinary/non-hazardous locations, giving you confidence in field performance. The 3/4" trade size, zinc die-cast body, and insulated profile support durable, weather-resistant connections with no disassembly required. By streamlining fit-up and reducing rework, it shortens panel assembly cycles and lowers field-maintenance costs while keeping safety and compliance front and center. Engineers appreciate the push-in feature for quick termination during panel builds, minimizing torque concerns and wire damage.
Product Information
Extended Description
1651RTQ Eaton: Eaton Crouse-Hinds series push-in raintight connector, EMT, Straight, Insulated, Zinc die cast, 3/4"
Product Name
Eaton Crouse-Hinds series push-in raintight connector
Catalog Number
1651RTQ
UPC
662276540392
Product Length/Depth
1.18 in
Product Height
1.18 in
Product Width
1.5 in
Product Weight
0.02 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
EMT
Style
Push-in
Connector type
Straight
Insulator
Insulated
Trade size
3/4"
Material
Zinc die cast
Special features
Raintight, no disassembly
Crouse-Hinds series Push-in Raintight Connectors and Couplings - EMT catalog page
Push-in Raintight Connectors and Couplings - EMT UL certification
Push-in Raintight Connectors and Couplings - EMT UL certification
Eaton Specification Sheet - 1651RTQ
Push-in design enables rapid terminations with minimal tooling and no disassembly, translating to shorter installation windows and lower labor costs. The 1651RTQ supports straight EMT conduits in a 3/4 inch trade size with a zinc die-cast, insulated body that delivers consistent electrical contact in busy panel builds. Use it in control panels and equipment enclosures where you need fast, repeatable connections without compromising reliability. Raintight construction protects outdoor and damp locations from moisture ingress, improving long-term reliability and reducing field service calls. The no-disassembly feature minimizes conductor damage during termination and eases maintenance checks, supporting preventive maintenance programs in harsh environments. This combination is ideal for weather-exposed installations in industrial facilities. Durability comes from the zinc die-cast housing and insulated design, which resist impact and arcing in tight spaces. The connector is designed to meet NEC/CEC standards, providing a clear path to compliance during regulatory audits and project approvals. Its rugged construction also helps withstand vibration and temperature cycling common in manufacturing settings. Compact dimensions—1.18 in long and tall, 1.5 in wide—keep panel layouts uncluttered while reducing stockroom footprint. At roughly 0.02 lb, it’s light enough for simple hand assembly yet sturdy enough for repeated field installations. The 1651RTQ remains compatible with standard EMT fittings, enabling easy retrofits and upgrades without changing existing conduit runs. With UL listings for both U.S. and Canada and NEC/CEC compliance, you gain confidence in safety, traceability, and documentation for audits. The combination of raintight performance and push-in convenience helps facilities meet uptime targets and cut maintenance costs over the life of the installation.
Get a Quick Quote for a Eaton 1651RTQ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1651RTQ?
Enquire Now
FAQs
To install, prepare the EMT conduit end, insert the stripped conductor into the push-in receptacle until seated, and ensure the connector is fully engaged without the need to disassemble. Verify alignment with the straight 1651RTQ, confirm the 3/4 inch trade size matches the conduit, and re-check for secure contact. This approach minimizes tool use and reduces potential conductor damage during terminations.
Yes. The 1651RTQ is UL listed for both the United States and Canada, with UL certification pages referenced in support materials. It is designed to meet NEC/CEC standards and is suitable for ordinary/non-hazardous locations in both markets, helping streamline cross-border projects and compliance documentation.
Key specs include a 3/4 inch trade size, EMT conduit compatibility, a straight connector type, and an insulated zinc die-cast housing. It is a push-in, raintight design intended for non-hazardous locations, with dimensions around 1.18 in in length and height and 1.5 in in width, weighing about 0.02 lb.
The 1651RTQ adheres to NEC/CEC standards and carries UL listings for US and Canada. It is classified for Ordinary/Non-Hazardous Locations and features raintight construction, insulating materials, and a no-disassembly design to simplify compliance documentation and field audits.
The push-in raintight design reduces installation time and labor costs by eliminating disassembly steps, while the raintight performance lowers downtime and maintenance calls in harsh environments. Its small footprint and compatibility with standard EMT fittings support efficient panel upgrades, faster commissioning, and a lower total cost of ownership over the equipment life cycle.
