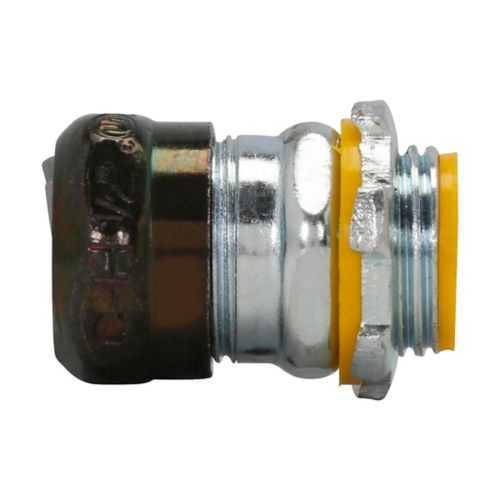

Eaton 1653RT Raintight Compression Connector - EMT
Part Number: 1653RT
Quick Summary
Eaton 1653RT raintight compression connector for EMT conduit terminations. This robust solution is designed to deliver secure, weather-resistant terminations in industrial settings. Installing in damp, high-vibration environments often leads to moisture ingress and field failures; 1653RT mitigates these risks with a raintight, steel body. The connector adheres to NEC/CEC standards and is UL-listed for Canadian certification, providing confidence across code jurisdictions. By pairing fast, tool-free installation with reliable sealing, it helps reduce commissioning time and maintenance costs. The 1-1/4" trade size, insulated construction, and compact form factor also simplify inventory management and installation logistics for engineering teams and installers alike.
Product Information
Extended Description
1653RT Eaton: Eaton Crouse-Hinds series raintight compression connector, EMT, Straight, Insulated, Steel, Threadless, 1-1/4"
Product Name
Eaton Crouse-Hinds series raintight compression connector
Catalog Number
1653RT
UPC
784564004598
Product Length/Depth
3.96 in
Product Height
1.13 in
Product Width
2.66 in
Product Weight
0.41 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
EMT
Style
Compression
Connector type
Straight
Insulator
Insulated
Trade size
1-1/4"
Thread
Threadless
Material
Steel
Special features
Raintight
Crouse-Hinds series Raintight Connectors and Couplings - EMT catalog page
Raintight Connectors and Couplings - EMT Canadian certification
Raintight Connectors and Couplings - EMT Canadian certification
Eaton Specification Sheet - 1653RT
Feature: Raintight compression design. Business Impact: Prevents moisture ingress and corrosion, reducing field failures and warranty costs. Application: Outdoor or wet-location EMT terminations in control panels and equipment rooms. Feature: Straight, threadless connector. Business Impact: Speeds up installation with fewer parts and tools, improving labor efficiency. Application: Route runs where space is constrained and quick termination is required. Feature: Insulated steel construction. Business Impact: Provides robust mechanical protection and electrical insulation to minimize arcing risk. Application: Enclosures near energized equipment in industrial facilities. Feature: Precise 1-1/4 inch trade size. Business Impact: Ensures compatibility with standard EMT conduits and existing assemblies, reducing rework. Application: Medium-radius conduit runs in machine bays and service rooms. Feature: Compact dimensions (3.96 in L, 1.13 in H, 2.66 in W) and weight (0.41 lb). Business Impact: Easier handling, lower transport costs, and simpler installation in tight spaces. Application: Retrofit projects and panel upgrades where space is at a premium. Feature: Compliance and certification. Business Impact: Supports regulatory approvals with NEC/CEC standards and UL Canada listing, accelerating project sign-off. Application: Facilities adhering to multi-jurisdiction codes and Canadian requirements.
Get a Quick Quote for a Eaton 1653RT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1653RT?
Enquire Now
FAQs
To install the 1653RT, ensure the EMT fits the 1-1/4" trade size and clean the mating surfaces. Insert the conduit into the connector, align the insulation, and tighten the compression mechanism until seated. Maintain a raintight seal by following Eaton's torque recommendations in the 1653RT datasheet and verify the installation with a simple moisture test after assembly.
Key specs include EMT conduit compatibility, straight connector style, threadless design, insulated steel construction, 1-1/4" trade size, 3.96" length, 1.13" height, 2.66" width, and a weight of 0.41 lb. The connector is intended for ordinary/non-hazardous locations, aligning with NEC/CEC standards.
Yes. The 1653RT is specified for Ordinary/Non-Hazardous Locations and supports NEC/CEC compliance. Its raintight design helps protect terminations from moisture and dust in standard indoor and outdoor installations, making it suitable for control panels, equipment enclosures, and general wiring runs in non-hazardous environments.
The 1653RT meets NEC/CEC standards and is UL-listed for Canada, reflecting compliance with regional electrical codes. Its raintight performance also aligns with industry expectations for moisture-resistant terminations in EMT conduit systems, helping facilities pass inspections and maintain reliable operation.
The raintight design reduces moisture-related issues, lowering field maintenance needs. Its quick, threadless compression enables faster installations, reducing labor costs. Durable steel construction extends service life in busy industrial environments, delivering lower replacement and downtime costs and improving overall return on investment for conduit terminations.
