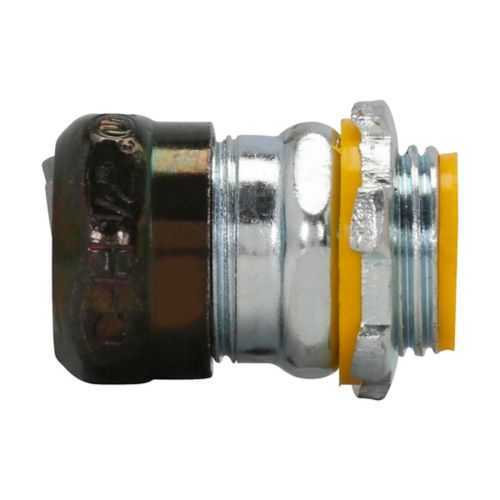

Eaton 1656RT Raintight Compression Connector - Raintight
Part Number: 1656RT
Quick Summary
The Eaton 1656RT Raintight compression connector is a rugged EMT termination designed for reliable field installation in industrial environments. Electricians often struggle with moisture ingress and slow wiring when mounting raintight fittings in damp or outdoor locations. This model adheres to NEC/CEC standards and UL-listed documentation, while its Ordinary/Non-Hazardous area classification supports broad commercial use. By combining a threadless, insulated steel design with a compact 2-1/2 in trade size, it speeds installs and reduces maintenance, enabling efficient panel layouts. Engineers and contractors appreciate the straightforward integration with standard EMT fittings and common hand tools, while procurement benefits from consistent cataloging and predictable lifecycle costs. The result is a versatile solution for reliable, code-compliant terminations in challenging environments.
Product Information
Extended Description
1656RT Eaton: Eaton Crouse-Hinds series raintight compression connector, EMT, Straight, Insulated, Steel, Threadless, 2-1/2"
Product Name
Eaton Crouse-Hinds series raintight compression connector
Catalog Number
1656RT
UPC
784564004628
Product Length/Depth
5.22 in
Product Height
3.42 in
Product Width
3.42 in
Product Weight
1.63 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
EMT
Style
Compression
Connector type
Straight
Insulator
Insulated
Trade size
2-1/2"
Thread
Threadless
Material
Steel
Special features
Raintight
Crouse-Hinds series Raintight Connectors and Couplings - EMT catalog page
Raintight Connectors and Couplings - EMT Canadian certification
Raintight Connectors and Couplings - EMT Canadian certification
Eaton Specification Sheet - 1656RT
Feature: Raintight compression design with insulated steel construction. Business Impact: Provides moisture sealing and durability, reducing water ingress risk and long-term corrosion concerns. Application: Ideal for outdoor enclosures, damp indoor areas, and any raintight installation where reliability matters. Feature: EMT conduit compatibility with straight connector form factor. Business Impact: Enables fast, vibration-resistant terminations using standard tools, shortening installation time and labor costs. Application: Wiring runs in panels and field junctions where a straight, compression-based fit improves routing. Feature: Trade size of 2-1/2 inches and threadless interface. Business Impact: Simplifies preparation and assembly, lowering misalignment risk and enabling quicker splices. Application: Commercial and light-industrial installations requiring a robust, medium-size connector. Feature: Insulated steel body and compact footprint (5.22 in x 3.42 in x 3.42 in, 1.63 lb). Business Impact: Balances mechanical protection with space efficiency, easing enclosure packing and reducing cabinet crowding. Application: dense control panels and distributed equipment with limited mounting space. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous area classification. Business Impact: Aids regulatory approvals and reduces inspection cycles, ensuring safe operation in non-hazardous environments. Application: Facilities and machinery that require code-aligned terminations in commercial spaces. Feature: Availability of official catalogs and data sheets. Business Impact: Streamlines design verification and procurement through consistent references and approved specifications. Application: Engineering design reviews, bidding, and supplier qualification processes.
Get a Quick Quote for a Eaton 1656RT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1656RT?
Enquire Now
FAQs
To install the 1656RT, prepare the EMT conduit run and ensure the straight, compression-style coupling is clean and free of burrs. Insert the conduit, align the connector, and tighten the compression mechanism until the joint is solid and watertight. The threadless design minimizes threading steps, speeding up the process while maintaining a secure seal and mechanical integrity in non-hazardous locations.
The 1656RT is designed for NEC/CEC compliance and is listed for Ordinary/Non-Hazardous Locations. Documentation and certifications are available through UL-related pages and Eaton’s specification sheets. This alignment supports code-approved installations in commercial and industrial settings, simplifying inspection and reducing project risk when wiring with raintight EMI connectors.
Yes. The 1656RT is a raintight, insulated steel connector designed to seal against moisture in raintight installations. Its compression mechanism and threadless interface provide a robust seal suitable for damp and exterior environments, helping to prevent ingress in exposed conduit runs while maintaining structural integrity under vibration and movement.
The threadless design eliminates the need for thread engagement, reducing installation time and the risk of misalignment. It simplifies field assembly, especially in tight or crowded panels, while delivering a reliable, moisture-resistant connection. This is particularly beneficial for 2-1/2" trade-size EMT runs where space and speed are critical.
The 1656RT delivers long-term durability through insulated steel construction and raintight sealing, which minimizes corrosion and moisture-related failures. This translates to lower maintenance costs, fewer re-terminations, and extended service intervals in demanding environments, delivering a favorable total cost of ownership for industrial wiring and control systems.
