Eaton 1659RED EMT compression connector - NEC/CEC
Part Number: 1659RED
Quick Summary
1659RED is an EMT compression connector that joins EMT conduit in straight, insulated configurations for reliable field installations. Engineers and technicians often battle misaligned joints, corrosion-prone materials, and non-compliant terminations that slow projects and increase risk. This Eaton Crouse-Hinds series part delivers NEC/CEC compliance and is rated for Ordinary/Non-Hazardous Locations, providing predictable performance in typical plant environments. With its steel construction, red insulated profile, and threadless design, it simplifies installation while maintaining a secure, code-ready connection. By pairing this connector with standard EMT fittings, electrical teams can reduce commissioning time and improve lifecycle reliability, supporting safer, more maintainable conduit networks and faster ROI through reduced rework.
Product Information
Extended Description

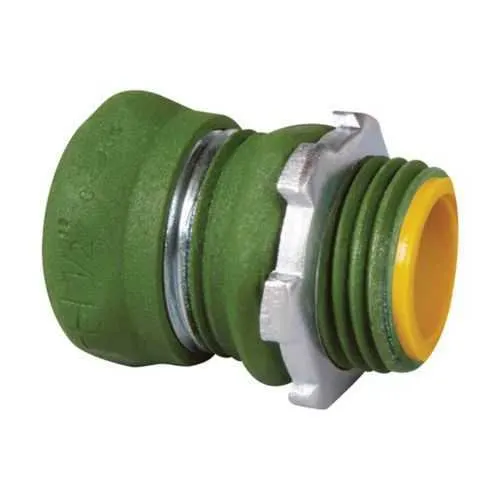

1659RED Eaton: Eaton Crouse-Hinds series EMT compression connector, Red, EMT, Straight, Insulated, Steel, Threadless, 4"
Product Name
Eaton Crouse-Hinds series EMT compression connector
Catalog Number
1659RED
UPC
662277097932
Product Length/Depth
3.84 in
Product Height
5.59 in
Product Width
5.59 in
Product Weight
3.6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
EMT
Connector type
Straight
Style
Compression
Insulator
Insulated
Trade size
4"
Color
Red
Thread
Threadless
Material
Steel
Eaton Crouse-Hinds 1659RED 3D drawing
Crouse-Hinds series Connectors and Couplings - EMT catalog page
Connectors and Couplings - EMT UL certification
Connectors and Couplings - EMT UL certification
Eaton Specification Sheet - 1659RED
Feature: Straight EMT compression connector, insulated steel, red color. Benefit: Ensures a clean, secure electrical joint that resists corrosion and vibration, while simplifying identification in color-coded installations. Application: Ideal for control panels, motors, and equipment enclosures where quick, reliable field assembly is required. Feature: Threadless design. Benefit: Reduces risk of cross-threading and speeds up installation, lowering labor costs on large conduit runs. Application: Compatible with standard EMT fittings across Eaton’s Crouse-Hinds line for consistent performance. Feature: 4 inch trade size, 3.84 inch length, 5.59 inch width, 3.6 lb weight. Benefit: Predictable fit in compact enclosures and dashboards, with robust mechanical strength for demanding environments. Application: Suitable for ordinary/non-hazardous locations per NEC/CEC, ensuring compliance across common industrial settings. Feature: Insulated steel construction. Benefit: Resistance to environmental exposure and electrical shock while maintaining conductor integrity. Application: Supports durable service in factory floors and assembly lines. Feature: Availability of 3D CAD, catalogs, and UL certification references. Benefit: Accelerates design validation, reduces procurement risk, and streamlines approvals. Application: Helpful for engineering reviews and BIM workflows in large projects.
Get a Quick Quote for a Eaton 1659RED
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1659RED?
Enquire Now
FAQs
Yes. The 1659RED is designed for 4" trade size EMT conduit and uses a threadless connection compatible with standard EMT fittings in the Eaton Crouse-Hinds family, simplifying field assembly and reducing alignment issues during installation.
Key specs include steel construction with insulated red housing, straight connector type, 4 inch trade size, threadless design, 3.84 in depth, and 3.6 lb weight. It supports EMT conduit and is intended for ordinary/non-hazardous locations under NEC/CEC guidelines.
It excels in control panels, machine enclosures, and field wiring runs within manufacturing and processing environments where reliability, quick installation, and NEC/CEC compliance are critical for safety and performance.
The connector adheres to NEC/CEC standards for ordinary locations. It is supported by UL certification reports for EMT fittings, with area classification indicating Ordinary/Non-Hazardous locations, ensuring regulatory compliance across the US and Canada.
The threadless, insulated steel design reduces installation effort and maintenance risk, while providing durable resistance to environmental exposure. Color coding and standardized compatibility streamline inspections and future upgrades, delivering lower lifecycle costs and faster project ROI.
