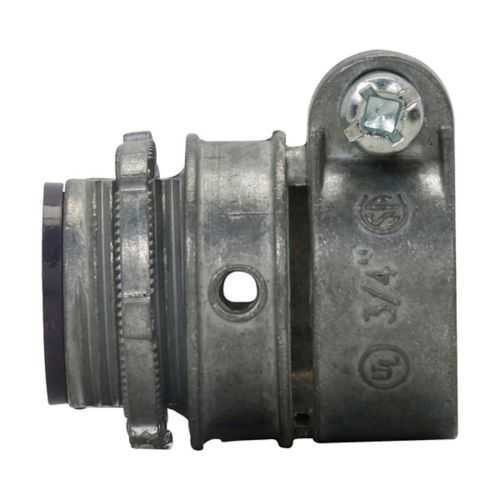

Eaton 1707DC Squeeze Type Connector - FMC, Zinc Die Cast
Part Number: 1707DC
Quick Summary
The Eaton 1707DC squeeze-type connector provides reliable FMC connections for straight, insulated wiring. Engineers often struggle to secure consistent electrical continuity in FMC conduit runs when dust, moisture, or vibration challenge fittings. This connector supports NEC/CEC compliance and is rated for Ordinary/Non-Hazardous Locations, helping teams avoid rework and code issues. With a zinc die‑cast body and insulated design, it resists corrosion and delivers long-term reliability in harsh environments. The compact 1.06 in length and 0.75 in width fit tight panel cavities, while the 3/8-inch trade size supports common FMC wiring. By combining fast installation with proven performance, it reduces field labor and maintenance costs across industrial control applications.
Product Information
Extended Description
1707DC Eaton: Eaton Crouse-Hinds series squeeze type connector, FMC, Straight, Insulated, Zinc die cast, 3/8"
Product Name
Eaton Crouse-Hinds series squeeze type connector
Catalog Number
1707DC
UPC
784564003430
Product Length/Depth
1.06 in
Product Height
0.75 in
Product Width
0.75 in
Product Weight
0.05 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
FMC
Style
Squeeze
Material
Zinc die cast
Connector type
Straight
Insulator
Insulated
Trade size
3/8"
Crouse-Hinds series Connectors and Couplings - FMC catalog page
Connectors and Couplings - FMC Canadian certification
Connectors and Couplings - FMC Canadian certification
Eaton Specification Sheet - 1707DC
Feature: FMC conduit compatibility and straight, insulated design. Business Impact: Delivers robust, corrosion-resistant connectivity for control panels and machines, reducing failure risk in harsh environments. Application: Use in FMC wiring runs where moisture and dust are present. Feature: Squeeze-type installation. Business Impact: Speeds up assembly, lowers labor costs, and minimizes field torque variations. Application: Quick field terminations on production lines and packaging equipment. Feature: Zinc die-cast body. Business Impact: Enhances durability and mechanical strength while resisting wear from repeated assembly cycles. Application: Industrial machinery and outdoor enclosures with exposure to temperature swings. Feature: 3/8" trade size with precise dimensions (1.06 in L, 0.75 in W/H). Business Impact: Enables compact fit in constrained panels, improving enclosure density and ease of routing. Application: Control panels with tight footprint constraints. Feature: NEC/CEC standards alignment and Ordinary/Non-Hazardous Location classification. Business Impact: Ensures regulatory compliance and safer wiring practices, reducing inspection issues. Application: OEMs and integrators targeting standard electrical codes. Feature: Lightweight profile (0.05 lb) with insulated construction. Business Impact: Minimizes overall weight in assemblies, aiding in vibration-sensitive installations. Application: Automotive and robotics control systems in non-hazardous environments.
Get a Quick Quote for a Eaton 1707DC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1707DC?
Enquire Now
FAQs
To install the 1707DC, align the straight FMC conduit with the insulated squeeze-type connector, ensure the 3/8" trade size matches the wiring, and apply a suitable squeezing action using a compatible tool. Verify a secure contact seal and clear the assembly from dust and moisture before powering. The process is designed to minimize torque and reduce field rework while providing a durable, code-compliant termination for control panels.
Key specs include conduit type FMC, material zinc die cast, insulation, straight connector style, 3/8" trade size, and overall compact dimensions (1.06 in length, 0.75 in width and height) with a weight of 0.05 lb. The UPC is 784564003430, and the part supports NEC/CEC standards for ordinary/non-hazardous locations, facilitating reliable, code-compliant wiring.
Yes. The 1707DC is specified for Ordinary/Non-Hazardous Locations and adheres to NEC/CEC standards, making it appropriate for standard electrical installations in control panels and machinery operating in non-hazardous environments without additional protective measures.
The product aligns with NEC/CEC standards and is positioned for ordinary/non-hazardous locations. Certification resources include Canadian FMC certification references and UL-listed documentation for relevant Canadian approvals, ensuring regulatory compliance across North American markets.
The 1707DC offers quick installation with a squeeze-type mechanism, reducing field labor and installation time. Its zinc die-cast, insulated construction provides durable performance in harsh environments, lowering maintenance needs and extending service life, which translates to lower lifecycle costs for control panels and machinery wiring projects.
