Eaton 1709 Squeeze Type Connector - FMC, Insulated NEC/CEC
Part Number: 1709
Quick Summary
The Eaton 1709 Squeeze Type Connector is designed for reliable FMC conduit terminations in industrial control panels. Tight spaces, misalignment, and loose terminations can cause downtime and maintenance cost, especially in rugged facilities. This connector aligns with NEC/CEC standards and UL certification, and its ordinary/non-hazardous area classification supports compliant installations in commercial and light-industrial environments. The malleable iron body delivers durable, vibration-resistant performance, while the insulated design reduces arcing risks. With a 3/4" trade size, it fits common FMC runs, and its straight configuration simplifies wiring in tight enclosures. For engineers seeking faster commissioning, lower failure rates, and easier serviceability, this connector offers a practical, code-ready solution that scales from panel builds to large control architectures.
Product Information
Extended Description

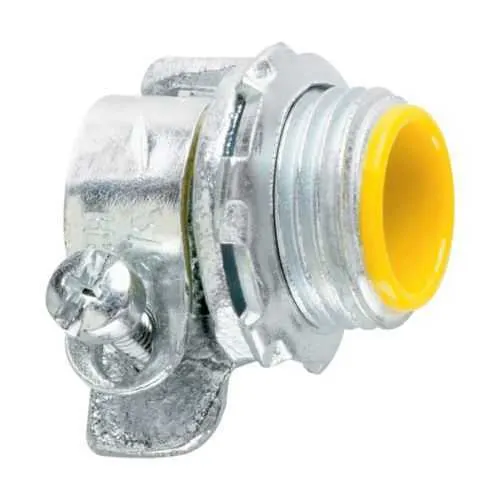

1709 Eaton: Eaton Crouse-Hinds series squeeze type connector, FMC, Straight, Insulated, Malleable iron, 3/4"
Product Name
Eaton Crouse-Hinds series squeeze type connector
Catalog Number
1709
UPC
784564117090
Product Length/Depth
1.69 in
Product Height
1.75 in
Product Width
1.75 in
Product Weight
0.17 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
FMC
Style
Squeeze
Material
Malleable iron
Connector type
Straight
Insulator
Insulated
Trade size
3/4"
Crouse-Hinds series Connectors and Couplings - FMC catalog page
Connectors and Couplings - FMC UL certification
Connectors and Couplings - FMC UL certification
Eaton Specification Sheet - 1709
The squeeze-type design provides steady, high-precision compression that keeps conductors firmly seated, reducing movement over vibration. This directly lowers the risk of loose terminations and intermittent faults in control panels. Used in FMC conduit assemblies, it supports fast, repeatable installations in restricted spaces. Malleable iron construction delivers rugged durability, resisting impact and corrosion in tough industrial environments. The result is fewer service calls and longer service life for critical equipment. Ideal for wet or oily plant floors where connectors face mechanical stress. Insulated housing minimizes arcing risk and helps meet NEC/CEC insulation requirements. It also improves safety during maintenance and wiring. Works with a 3/4" trade size FMC runs. UL certification and NEC/CEC compliance give engineers confidence for code-compliant installations. No-hassle area classification as Ordinary/Non-Hazardous Locations expands applicability into standard industrial facilities. Compatibility with Eaton's Crouse-Hinds FMC catalog pages ensures design continuity. Installation advantages include a straightforward straight configuration that eases wiring in narrow enclosures. The 3/4" trade size aligns with common FMC fittings, reducing part variety and stocking costs. Overall, this connector balances performance and total-cost-of-ownership for ongoing plant operations.
