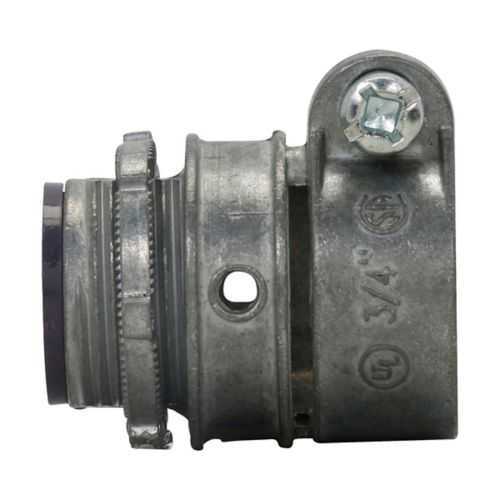

Eaton 1709DC Squeeze Type Connector - FMC Rated
Part Number: 1709DC
Quick Summary
Eaton 1709DC squeeze type connector provides secure FMC conduit joints for rugged industrial installations. When field conditions demand compact, insulated, zinc-die-cast hardware that resists corrosion and misalignment, this connector delivers reliable performance. It aligns with NEC/CEC standards and UL certification for FMC products, and it supports ordinary/non-hazardous area classifications, ensuring safe, compliant installations. For panel builders and integrators, the 1709DC enables faster assembly, reduced inventory complexity, and long service life in demanding environments. By leveraging a proven Crouse-Hinds design, you gain compatibility with standard FMC fittings and predictable, repeatable results across automation projects.
Product Information
Extended Description
1709DC Eaton: Eaton Crouse-Hinds series squeeze type connector, FMC, Straight, Insulated, Zinc die cast, 3/4"
Product Name
Eaton Crouse-Hinds series squeeze type connector
Catalog Number
1709DC
UPC
784564003454
Product Length/Depth
1.68 in
Product Height
1.23 in
Product Width
1.23 in
Product Weight
0.1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
FMC
Style
Squeeze
Material
Zinc die cast
Connector type
Straight
Insulator
Insulated
Trade size
3/4"
Crouse-Hinds series Connectors and Couplings - FMC catalog page
Connectors and Couplings - FMC UL certification
Connectors and Couplings - FMC UL certification
Eaton Specification Sheet - 1709DC
Feature: Squeeze-type connector design enables fast, tool-light assembly, reducing field labor and installation time. Business Impact: Shorter commissioning cycles and lower labor costs. Application: Ideal for high-volume panel builds in automation lines where downtime must be minimized and reliability is critical. Feature: Zinc die cast body provides robust mechanical strength and corrosion resistance. Business Impact: Longer service life in harsh industrial environments reduces replacement and maintenance costs. Application: Outdoor or energized enclosures where exposure to contaminants occurs. Feature: Insulated construction enhances electrical safety by maintaining clearances and reducing the risk of arcing. Business Impact: Improves safety compliance and reduces inspection findings. Application: Control panels in ordinary locations with NEC/CEC requirements. Feature: Straight connector geometry supports straightforward alignment with FMC conduit runs. Business Impact: Simplifies routing in tight spaces and improves repeatable terminations. Application: Tight-format installations in machine interfaces and field wiring. Feature: 3/4" trade size aligns with common FMC fittings and standard conduit schedules. Business Impact: Streamlines procurement and stocking with widely used sizes. Application: General purpose FMC wiring in automation and process equipment. Feature: UL FMC certifications and NEC/CEC compliance ensure regulatory readiness. Business Impact: Eases compliance audits and accelerates project approvals. Application: Factory and industrial installations demanding formal certification.
Get a Quick Quote for a Eaton 1709DC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1709DC?
Enquire Now
FAQs
The 1709DC is a straight, squeeze-type FMC connector designed for 3/4 inch trade-size flexible metal conduit. It supports straightforward straight-length connections in non-hazardous environments, enabling quick field assembly with compatible FMC fittings and standard enclosure layouts common in automation panels.
The squeeze-type design provides a fast, tool-light assembly, reducing torque requirements and eliminating the need for complex clamping hardware. This translates to shorter installation times, lower labor costs, and more consistent terminations across multiple panels in automated systems.
Yes. The 1709DC is certified for Ordinary/Non-Hazardous Locations under NEC/CEC standards, making it appropriate for standard industrial environments. Its insulated construction also enhances safety in control cabinets and equipment rooms, aligning with typical regulatory expectations in automation deployments.
The 1709DC adheres to NEC/CEC standards and carries UL certification for FMC connectors, including listings applicable to US and Canada. This combination supports compliant installation in regulated facilities and helps with passing internal and external audits for electrical hardware.
Constructed from zinc die cast, the connector delivers robust mechanical strength and corrosion resistance, reducing replacement frequency. Its simple, reliable squeeze installation minimizes field errors, lowers maintenance needs, and contributes to faster project ROI through reduced downtime and longer service life in demanding environments.
