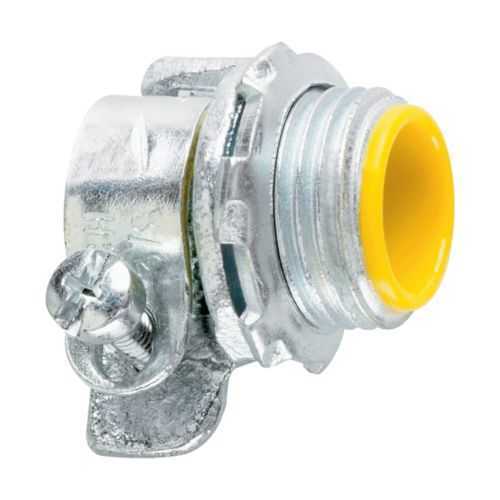

Eaton 1714 Squeeze Type Connector - FMC Insulated
Part Number: 1714
Quick Summary
Eaton 1714 squeeze type connector is a rugged FMC connection for secure conduit terminations in industrial control panels. Maintenance teams struggle with misalignment, corrosion, and improper insulation that cause downtime during terminations. It meets NEC/CEC standards and is rated for ordinary/non-hazardous locations, with UL certifications available. As a malleable iron, insulated FMC connector, it accelerates install efficiency while meeting industry compliance. The straight connector style simplifies alignment in tight spaces, while compatibility with FMC cable runs reduces inventory complexity. With the availability of catalogs and datasheets, engineers can specify 1714 with confidence for cost-effective, compliant installations.
Product Information
Extended Description
1714 Eaton: Eaton Crouse-Hinds series squeeze type connector, FMC, Straight, Insulated, Malleable iron, 2-1/2"
Product Name
Eaton Crouse-Hinds series squeeze type connector
Catalog Number
1714
UPC
784564117144
Product Length/Depth
3 in
Product Height
3.313 in
Product Width
3.313 in
Product Weight
1.6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
FMC
Style
Squeeze
Material
Malleable iron
Connector type
Straight
Insulator
Insulated
Trade size
2-1/2"
Crouse-Hinds series Connectors and Couplings - FMC catalog page
Connectors and Couplings - FMC UL certification
Connectors and Couplings - FMC UL certification
Eaton Specification Sheet - 1714
Feature: Squeeze-type FMC connector in a straight, insulated, malleable iron housing. Business impact: Delivers secure terminations with reduced risk of loosening or damage in vibration-prone environments. Application: Ideal for straight FMC conduit terminations in control panels and equipment housings. Feature: Durable malleable iron material with insulation. Business impact: Enhances mechanical protection and electrical insulation, lowering maintenance costs and extending service life in harsh industrial settings. Application: Suitable for continuous operation in non-hazardous locations where durability matters. Feature: NEC/CEC compliance and ordinary/non-hazardous area classification. Business impact: Simplifies code approvals and regulatory audits, speeding project timelines. Application: Widely applicable in standard industrial installations without hazardous environments. Feature: 2-1/2 inch trade size with a 3 inch length and 3.313 inch width/height footprint. Business impact: Predictable footprint supports efficient enclosure layout and easier inventory planning. Application: Fits within compact panels and crowded wiring ducts. Feature: Compatibility with FMC systems and Eaton Crouse-Hinds catalog ecosystem. Business impact: Reduces part proliferation and streamlines procurement through familiar, verified components. Application: Ideal for engineering specifications in control rooms and machine builds. Feature: Availability of specification sheets, catalogs, and UL certifications. Business impact: Lowers project risk with accessible documentation and validated compliance. Application: Supports fast quoting, design validation, and commissioning activities.
Get a Quick Quote for a Eaton 1714
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1714?
Enquire Now
FAQs
The Eaton 1714 squeeze type FMC connector is designed for straightforward installation with standard FMC cables. Begin by confirming conduit size 2-1/2" and ensuring clean, deburred conduit ends. Align the connector with the FMC run, apply appropriate compression or squeezing force per the Eaton spec sheet, and verify a secure, insulated seal. Local torque guidance and cross-reference with the Crouse-Hinds FMC catalog page will help ensure repeatable results across panels and enclosures.
The 1714 is designed to meet NEC/CEC standards for ordinary/non-hazardous locations. This makes it suitable for non-hazardous industrial control panel installations. UL certification documents are available to validate compliance for specific market regions. When selecting for a project, verify the UL listings and NEC/CEC requirements relevant to your jurisdiction to streamline approvals and avoid last-minute redesigns.
Yes. The 1714 is specifically rated for ordinary/non-hazardous locations, aligning with NEC/CEC protocols. Its insulated malleable iron construction offers reliable protection in typical factory or workshop settings and reduces the risk of moisture and corrosion-related failures. For projects with stricter environmental criteria, consult the certifications and product datasheets to confirm suitability.
Common objections include difficulty achieving a secure termination in tight spaces and managing a complex inventory. The 1714’s straight, squeeze-style design simplifies alignment in crowded enclosures, while the 2-1/2" trade size and 3 in length provide a predictable footprint. The insulated malleable iron housing adds durable protection, reducing rework and maintenance costs over the equipment lifecycle.
Using the 1714 can lower lifecycle costs through faster installations, reduced rework due to secure terminations, and longer service life from a robust housing. The product’s NEC/CEC compliance minimizes compliance-related delays, and UL data supports regulatory audits. Overall, the combination of durability, ease of installation, and certified performance translates into lower maintenance and labor costs over time.
