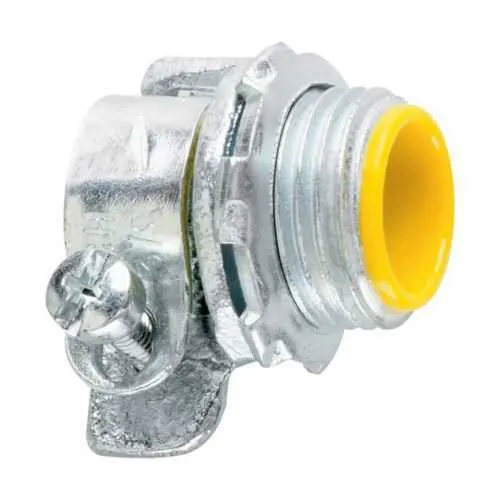

Eaton 1715 Squeeze Connector - FMC
Part Number: 1715
Quick Summary
The Eaton 1715 Squeeze Connector provides secure FMC connections for industrial control panels and equipment enclosures. Tight spaces and misaligned fittings often drive installation delays and runoff costs, but this connector is designed to simplify mounting and alignment. It carries NEC/CEC compliance and UL certification context for safer, regulated installations in ordinary/non-hazardous locations. By combining rugged malleable iron construction with a straight, insulated squeeze design, it delivers reliable performance in demanding environments while reducing maintenance cycles. This solution also aligns with broader FMC conduit strategies and spares teams from juggling multiple adapter options in tight fixtures.
Product Information
Extended Description
1715 Eaton: Eaton Crouse-Hinds series squeeze type connector, FMC, Straight, Insulated, Malleable iron, 3"
Product Name
Eaton Crouse-Hinds series squeeze type connector
Catalog Number
1715
UPC
784564117151
Product Length/Depth
3.25 in
Product Height
3.875 in
Product Width
3.875 in
Product Weight
2.05 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
FMC
Style
Squeeze
Material
Malleable iron
Connector type
Straight
Insulator
Insulated
Trade size
3"
Crouse-Hinds series Connectors and Couplings - FMC catalog page
Connectors and Couplings - FMC UL certification
Connectors and Couplings - FMC UL certification
Eaton Specification Sheet - 1715
Feature → Business Impact → Application: The squeeze-type design delivers quick, secure terminations, reducing installation time and labor costs on busy factory floors. This translates to faster panel builds and improved project timelines in FMC conduit systems. Application notes include straight connector geometry and 3-inch trade size suitable for control panels and equipment housings that require robust, non-hazardous location fittings. Feature → Business Impact → Application: Malleable iron construction provides superior mechanical strength, improving long-term durability in harsh environments and minimizing replacement cycles in industrial plants. Application notes include compatibility with FMC conduit and insulated fittings, ideal for outdoor or damp locations where corrosion resistance is essential. Feature → Business Impact → Application: NEC/CEC compliance and ORD/Non-Hazardous classification reduce regulatory risk, simplify procurement, and streamline audits across multi-site operations. Application notes include UL certification references and standard-conforming connectors for data and power distribution trunks. Feature → Business Impact → Application: 3.25 in length and 3.875 in height provide predictable footprint for panel interiors, enabling consistent spacing and easier routing of cables in compact enclosures. Application notes include layout planning for dense electrical assemblies. Feature → Business Impact → Application: Straight connector geometry limits bending radii requirements and improves termination accessibility, enhancing installation ergonomics in panel fabrication and field retrofits. Application notes include compatibility with standard FMC components and existing Crouse-Hinds catalog offerings. Feature → Business Impact → Application: Insulated design supports electrical safety by preventing incidental contact with live conductors, aiding compliance in restricted spaces and maintenance zones. Application notes include use in ordinary/non-hazardous environments where insulation is mandatory.
Get a Quick Quote for a Eaton 1715
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1715?
Enquire Now
FAQs
The 1715 is a straight, insulated squeeze-type connector designed for FMC conduit in ordinary/non-hazardous locations. Use the 3" trade size and align the fitting with the conduit to ensure a secure squeeze and proper enclosure seal. Refer to Eaton’s specification sheet for step-by-step mounting guidance and compatible accessory options.
Yes. The 1715 is listed for NEC/CEC standards and is classified for Ordinary/Non-Hazardous Locations. It supports UL certifications, making it appropriate for compliant panel wiring and industrial installations in non-hazardous settings.
Key specifications include a length of 3.25 inches, height of 3.875 inches, width of 3.875 inches, and a weight of 2.05 pounds, with a 3-inch trade size. These dimensions help plan panel footprint and cable routing in confined enclosures.
The 1715 is constructed from malleable iron and is designed for FMC (flexible metal conduit) with an insulated, squeeze-type connector body. This combination provides durability and reliable grounding paths in industrial wiring within non-hazardous environments.
Best suited for control panels, industrial equipment, and FMC conduit runs in ordinary/non-hazardous locations where robust mechanical strength and compliant electrical fittings are required. It’s ideal for applications needing a straight, insulated connection with straightforward installation and dependable service life.
