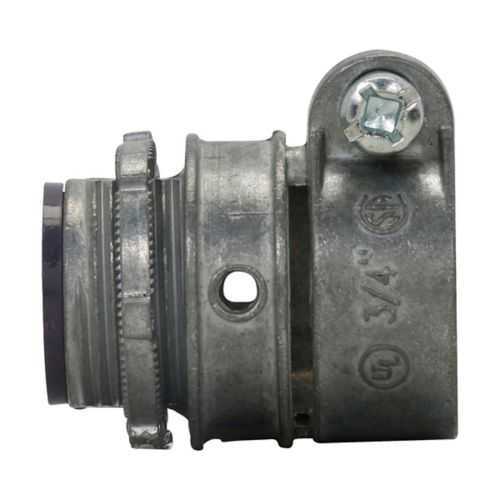

Eaton 1722DC Squeeze Type Connector - FMC, Insulated, 4 in
Part Number: 1722DC
Quick Summary
The Eaton 1722DC is a squeeze type connector designed for FMC conduit in industrial control and wiring applications. Engineers often face reliability challenges in tight panels where terminations must hold up to vibration, temperature swings, and dirty environments. This part aligns with NEC/CEC standards for ordinary/non-hazardous locations and carries UL Canada certification support for added regulatory assurance. Built with a zinc die cast body and insulated construction, it delivers durable terminations without sacrificing ease of installation. For workflow efficiency, its straight configuration and 4-inch trade size simplify panel layouts while enhancing field serviceability and long-term maintenance planning.
Product Information
Extended Description
1722DC Eaton: Eaton Crouse-Hinds series squeeze type connector, FMC, Straight, Insulated, Zinc die cast, 4"
Product Name
Eaton Crouse-Hinds series squeeze type connector
Catalog Number
1722DC
UPC
784564003539
Product Length/Depth
4.1 in
Product Height
4.73 in
Product Width
4.73 in
Product Weight
1.61 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
FMC
Style
Squeeze
Material
Zinc die cast
Connector type
Straight
Insulator
Insulated
Trade size
4"
Crouse-Hinds series Connectors and Couplings - FMC catalog page
Connectors and Couplings - FMC Canadian certification
Connectors and Couplings - FMC Canadian certification
Eaton Specification Sheet - 1722DC
Feature: Squeeze-type connector design for FMC conduit → Business Impact: Fast, secure terminations reduce installation time and field rework, boosting panel build efficiency. Application: Ideal for machine wiring in control panels where space is tight and reliability matters. Feature: Insulated construction with zinc die cast body → Business Impact: Improved electrical protection and corrosion resistance, lowering lifecycle costs and downtime. Application: Suitable for harsh automotive or industrial environments requiring durable enclosures. Feature: Straight connector with 4" trade size → Business Impact: Predictable routing in wiring harnesses and seamless integration with common FMC runs, decreasing routing errors. Application: Industrial automation installations and panel assemblies with standard FMC sizes. Feature: NEC/CEC compliance for ordinary/non-hazardous locations → Business Impact: Regulatory confidence and streamlined approvals, reducing project risk. Application: Construction and plant-wide projects following North American electrical codes. Feature: UL Canada certification support → Business Impact: Expanded market eligibility and cross-border installation confidence, easing procurement. Application: Canadian facilities and multinational plants needing certified components. Feature: Durable zinc die cast material → Business Impact: Robust mechanical integrity under vibration and temperature variations, extending service life. Application: Enclosures and equipment exposed to frequent motion or shocks in manufacturing settings.
Get a Quick Quote for a Eaton 1722DC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1722DC?
Enquire Now
FAQs
The 1722DC supports a 4 inch trade size for FMC conduit and is a straight, insulated squeeze-type connector. To install, align the FMC conduit with the connector, insert fully, and operate the squeeze mechanism to secure the grip. The zinc die cast body provides a durable, high- integrity termination suitable for control panels.
The 1722DC is designed for NEC/CEC compliance in ordinary/non-hazardous locations and carries UL Canada certification support for FMC connectors. Canadian certification details are available through UL listings (e.g., AWSX7.E19188 pages) and Eaton documentation, ensuring cross-border regulatory alignment for panel assemblies.
Yes. The 1722DC is purpose-built for FMC conduit in straight, insulated terminations, making it well-suited for control panels and machine wiring. Its durable zinc die cast body and insulated design enhance reliability under vibration and temperature variation typical of automation environments.
In addition to NEC/CEC standards, the 1722DC is supported by UL Canada certification listings for FMC connectors. The Canadian certification pages (e.g., AWSX.E19188) confirm suitability for Canadian installations, while NEC/CEC compliance covers US and other North American use in ordinary locations.
The squeeze-type mechanism enables faster, more reliable terminations with fewer adjustments, reducing installation time and rework. Its insulated, corrosion-resistant zinc die cast body lowers maintenance costs and downtime, contributing to a favorable ROI in panel builds and ongoing automation maintenance.
