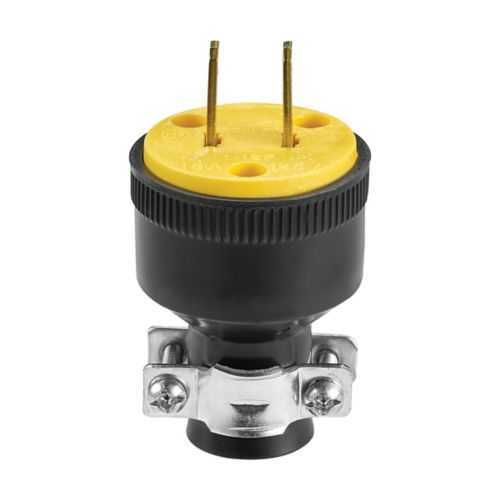

Eaton 1723 Straight Blade Plug - UL NOM 6221 02
Part Number: 1723
Quick Summary
Eaton 1723 straight blade plug is a 15A, 125V device designed for commercial wiring. In busy electrical environments, back-wire terminations and non-grounding, non-polarized design can slow installs and invite miswirings. Certified to UL NOM Federal Specification 6221 02, this plug uses brass contacts and a thermoplastic rubber body for durable, safe connections. For engineers and technicians, the 1723 supports quick terminations and reliable performance in standard receptacle assemblies, aligning with back-wire and two-pole configurations. Its core-pack packaging and straightforward screw connections streamline stocking and field deployment, delivering consistent quality in commercial wiring devices.
Product Information
Extended Description
1723 Eaton: Eaton straight blade plug , #18-10 AWG, 15A, Commercial, 125V, Back wire, Black, Brass, Thermoplastic, 1-15P, Two-pole, two-wire, non grounding, Screw, Thermoplastic rubber, Core pack
Product Name
Eaton straight blade plug
Catalog Number
1723
UPC
032664752315
Product Length/Depth
1.5 in
Product Height
2.88 in
Product Width
1.5 in
Product Weight
0.115 lb
Certifications
UL NOM Federal Specification Classification 6221 02
Device type
Plug
Special features
Non-groundingNon-polarized
Type
Rubber plug
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Non-grounding Non-polarized
Application
Commercial
Device grade
Commercial
Wiring method
Back wire
Number of wires
2
Number Of Poles
Two-pole
Style type
Straight body
Material
Thermoplastic rubber
Packaging type
Core pack
Color
Black
Connection type
Screw
Allowable wire size
#18-10 AWG
NEMA configuration
1-15P
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Thermoplastic
Receptacle type
Two-pole, two-wire, non grounding
Wiring Devices Buyer’s Guide
Commercial and residential straight blade vinyl receptacles
Eaton Specification Sheet - 1723
Feature: Amperage Rating 15A and Voltage Rating 125V. Business Impact: Aligns with common commercial branch circuits, helping meet NEC/CSA expectations and reduce overcurrent risk. Application: Ideal for 18-10 AWG back-wire terminations in 1-15P configurations within commercial panels. Feature: Brass contact material and thermoplastic rubber body. Business Impact: Delivers durable, corrosion-resistant connections with low contact resistance, reducing maintenance calls. Application: Suitable for daily cycling in commercial outlets. Feature: Back-wire wiring method. Business Impact: Speeds installation by allowing direct conductors, lowering field torque on screws and minimizing wiring errors. Application: Preferred in high-volume electrical rooms and new-builds. Feature: NEMA configuration 1-15P; two-pole. Business Impact: Ensures compatibility with standard non-grounding plugs, simplifying design and inventory. Application: Used in both residential and commercial non-grounding installations. Feature: Certifications UL NOM 6221 02. Business Impact: Demonstrates compliance with federal safety standards, reducing regulatory risk. Application: Specified for regulated facilities and OEM assemblies, especially where commercial-grade wiring devices are required.
Get a Quick Quote for a Eaton 1723
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1723?
Enquire Now
FAQs
The 1723 supports back-wire termination with #18-10 AWG conductors and uses a two-pole, non-grounding configuration (1-15P). When planning a panel or receptacle assembly, verify space for the thermoplastic rubber body and ensure torque is applied within the 14 lbf-inch specification to secure brass contacts without damage.
Key specs include a 15A amperage rating, 125V voltage rating, brass contact material, thermoplastic rubber body, NEMA configuration 1-15P, and a torque rating of 14 lbf-in. It is designed for back-wire termination and supports 18-10 AWG conductors.
Best used in commercial wiring devices and back-wire terminations within panel assemblies, junction boxes, and non-grounding receptacle configurations. Its core-pack packaging aids stocking for OEM and contractor deployments, delivering reliable performance in high-volume construction and retrofit projects.
The 1723 carries UL NOM Federal Specification Classification 6221 02, signaling compliance with federal safety and performance standards. This matters for regulated facilities, OEM manufacturing, and projects requiring verifiable safety certification to meet code and procurement mandates.
Expect durable, low-resistance connections due to brass contacts and thermoplastic rubber housing, which reduces maintenance calls. Back-wire terminations promote stable terminations, while the 14 lbf-in torque spec helps prevent loosening—a notable ROI in terms of reduced field service and improved panel reliability.
