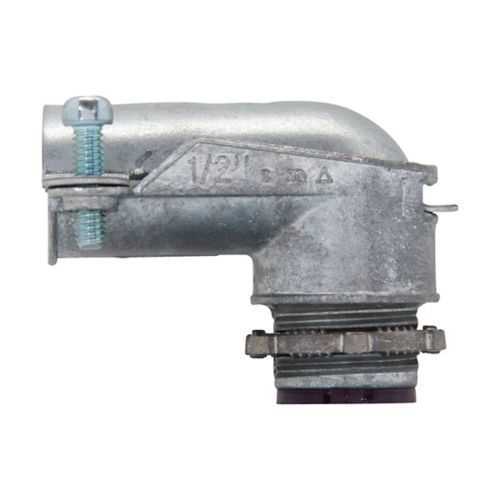

Eaton 1736DC squeeze type connector - FMC 90°
Part Number: 1736DC
Quick Summary
The Eaton 1736DC squeeze type connector is a high-reliability FMC connector designed for 1/2 inch trade-size wiring in non-hazardous industrial environments. Engineers often struggle with space constraints and misalignment in 90° FMC connections, and this part addresses those challenges with a compact zinc die-cast insulated body and a precise 90° elbow that promotes quick, accurate terminations. It aligns with NEC/CEC standards and carries an Ordinary/Non-Hazardous area classification, supporting safe, compliant installations across general purpose panels and junction boxes. For procurement and maintenance, the 1736DC integrates smoothly with existing Crouse-Hinds FMC catalogs and remains lightweight at about 0.104 lb, reducing field fatigue. This combination delivers reliable performance, predictable terminations, and lower total installed cost for panel builders and machine builders.
Product Information
Extended Description
1736DC Eaton: Eaton Crouse-Hinds series squeeze type connector, FMC, 90° angle, Insulated, Zinc die cast, 1/2"
Product Name
Eaton Crouse-Hinds series squeeze type connector
Catalog Number
1736DC
UPC
784564003669
Product Weight
0.104 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
FMC
Style
Squeeze
Material
Zinc die cast
Connector type
90° angle
Insulator
Insulated
Trade size
1/2"
Crouse-Hinds series Connectors and Couplings - FMC catalog page
Connectors and Couplings - FMC UL certification
Connectors and Couplings - FMC UL certification
Eaton Specification Sheet - 1736DC
Squeeze-type design delivers a secure, compression-based termination that minimizes field adjustments. This approach translates to measurable time savings, lower termination variability, and improved connection reliability in busy panel builds. In applications where technicians must quickly terminate conductors inside control cabinets, the 1736DC provides a clean, consistent grip that reduces rework and late-stage failures. 90° angle geometry enables space-saving routing in tight enclosures. Business impact includes easier cable management and fewer sharp bends that can degrade signal integrity. The connector is well suited for panel boards, motor starters, and compact control boxes where right-angle FMC terminations are required. Zinc die-cast housing provides rugged durability and corrosion resistance. This translates to longer service life in dirty, humid, or shop-floor environments and lowers maintenance cost. The insulated body also helps meet insulation and clearance requirements in standard panel wiring. 1/2 inch trade size and insulated construction simplify stock management and field matching. Impact: technicians can rely on consistent termination dimensions, simplify spare-part inventories, and reduce misfit risk. Applications include general-purpose control wiring and equipment wiring in non-hazardous areas. NEC/CEC compliance and ordinary/non-hazardous location rating support regulatory readiness and faster approvals. This compatibility reduces project risk, accelerates commissioning, and ensures compatibility with existing Eaton Crouse-Hinds FMC catalogs and standard panel assemblies. Additional value comes from reliable weight performance and straightforward installation workflows that shorten project timelines.
Get a Quick Quote for a Eaton 1736DC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1736DC?
Enquire Now
FAQs
The 1736DC is designed for FMC conduit with a 1/2" trade size. Its 90° angle and insulated zinc die-cast body provide a compact, reliable termination suitable for general purpose panel wiring and machine wiring in ordinary locations.
The squeeze-type design reduces torque variability and speeds up terminations, lowering rework and field downtime. Its lightweight 0.104 lb form helps installers manage cable routing in confined panels and boxes.
Yes. The connector meets NEC/CEC standards and carries an Ordinary/Non-Hazardous Locations area classification, facilitating compliant installations in general environments without specialized hazardous-area approvals.
A 90° elbow supports tight routing and neat cable management, but ensure correct alignment with FMC conduit runs, proper strain relief, and compatible panel footprints to avoid bending stresses or misfit terminations.
Control panels, machine wiring, and general plant installations in non-hazardous settings benefit from the 1736DC, especially where space is limited, standard 1/2" FMC is used, and NEC/CEC compliance is required.
