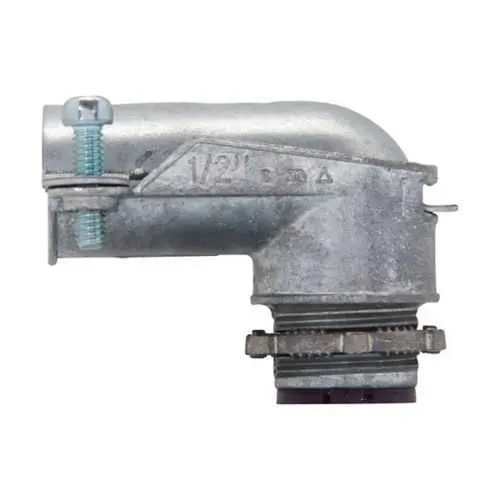

Eaton 1744DC Squeeze Type Connector - NEC/CEC
Part Number: 1744DC
Quick Summary
Eaton 1744DC squeeze type connector is designed for FMC conduits, delivering fast, secure terminations in control panels and machine enclosures. When space is limited or fittings must align precisely, installation delays and miswiring can erode uptime and budgets. This 2-1/2 in. trade-size device provides a compact 90° solution that simplifies routing in tight panels. It adheres to NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations, with UL certification documentation available to support regulatory audits. The combination of insulated zinc die-cast housing and a squeeze-style mechanism translates into predictable assembly, reduced rework, and long-term reliability, helping you meet project schedules and maintain consistent electrical performance in industrial environments.
Product Information
Extended Description
1744DC Eaton: Eaton Crouse-Hinds series squeeze type connector, FMC, 90° angle, Insulated, Zinc die cast, 2-1/2"
Product Name
Eaton Crouse-Hinds series squeeze type connector
Catalog Number
1744DC
UPC
784564003720
Product Weight
3.1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
FMC
Style
Squeeze
Material
Zinc die cast
Connector type
90° angle
Insulator
Insulated
Trade size
2-1/2"
Crouse-Hinds series Connectors and Couplings - FMC catalog page
Connectors and Couplings - FMC UL certification
Connectors and Couplings - FMC UL certification
Eaton Specification Sheet - 1744DC
Feature: Squeeze-type 90° connector, zinc die cast, insulated housing. Business Impact: Faster, vibration-resistant terminations with fewer loose parts and reduced torque requirements. Application: Control panels and machine enclosures in automation lines. The design delivers consistent contact pressure and a secure seal, cutting installation time and post-install checks. Feature: 2-1/2 inch trade size for FMC conduit. Business Impact: Aligns with standard FMC sizing, minimizing field adaptation and part count. Application: Wiring runs in conveyors and equipment housings where space is constrained. Feature: 90° angle configuration. Business Impact: Enables neat, compact routing in crowded panels, reducing bending stress on conductors. Application: Enclosures with tight clearance and right-angle terminations. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Location classification. Business Impact: Simplifies regulatory approvals and reduces risk exposure. Application: Industrial facilities requiring formal standards alignment. Feature: UL certification documentation availability. Business Impact: Supports quality assurance audits and customer-facing compliance records. Application: End-user facilities with formal vendor approvals. Feature: Durable zinc die-cast construction. Business Impact: Enhanced mechanical protection against impact and corrosion. Application: Harsh factory environments with frequent vibration. Feature: Easy field installation with reliable fit. Business Impact: Reduces downtime and rework, improving overall project ROI. Application: Panel wiring upgrades and new equipment installations.
Get a Quick Quote for a Eaton 1744DC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1744DC?
Enquire Now
FAQs
Yes. The 1744DC is a squeeze type connector designed for FMC conduits with a 2-1/2 in. trade size. Its 90° angle and insulated zinc die-cast housing streamline the fitment in tight panel spaces, reducing alignment errors. Proper installation uses standard FMC termination practices and the squeeze mechanism to ensure consistent electrical contact and a secure seal, minimizing field adjustments and rework.
The 1744DC is aligned with NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations. Documentation and UL certification references are available to support compliance during audits and inspections. This combination helps ensure regulatory readiness for control panels and machinery installations in typical industrial environments.
Yes. The 1744DC is designed for FMC conduit terminations in Ordinary/Non-Hazardous Locations, offering an insulated zinc die-cast body and a 90° squeeze design. Its robust construction supports reliable operation under typical factory vibrations, while NEC/CEC compliance helps meet panel wiring standards and reduces compliance-related risk.
Install with standard FMC procedures for squeeze-type connectors. Align the conduit, insert fully, and operate the squeeze mechanism to achieve constant contact pressure. Use appropriate hand or powered tools per your facility’s guidelines. The 2-1/2 in. trade size and 90° angle configuration simplify routing in tight spaces, and the zinc die-cast housing resists deformation during tightening and vibration.
The 1744DC offers faster installation due to its squeeze design and reduced parts count, translating to lower labor costs and shorter downtime. Its durable zinc die-cast housing improves long-term reliability in non-hazardous environments, helping compliance and maintenance teams avoid rework. For automation projects, these factors collectively support on-time delivery and predictable maintenance cycles.
