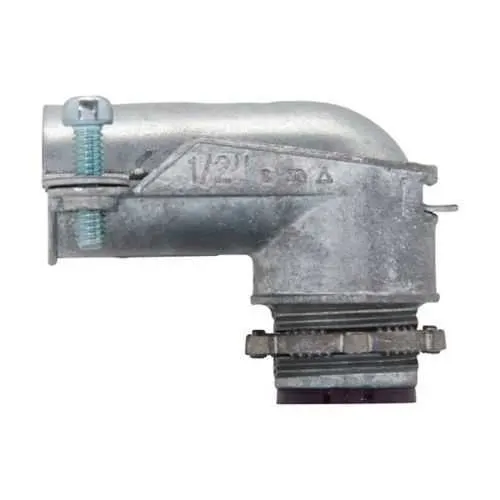

Eaton 1745DC Squeeze Type Connector - FMC
Part Number: 1745DC
Quick Summary
Eaton 1745DC squeeze type connector is a high-reliability FMC connector used to secure flexible metal conduit in industrial electrical installations. End users often struggle with loose fittings, non-insulated terminations, and corrosion risk that drive downtime. This connector meets NEC/CEC standards and is rated for ordinary/non-hazardous locations. Durable zinc die cast construction and a 3" trade size support reliable field installations while reducing replacement frequency. In practice, teams value fast, compliant connections that withstand routine vibration and frequent maintenance checks. Designed for FMC conduit systems found in manufacturing lines, process automation, and control cabinets, the 1745DC streamlines installation without sacrificing safety. Its insulated design helps maintain electrical integrity and reduces arcing risks in crowded panels.
Product Information
Extended Description
1745DC Eaton: Eaton Crouse-Hinds series squeeze type connector, FMC, 90° angle, Insulated, Zinc die cast, 3"
Product Name
Eaton Crouse-Hinds series squeeze type connector
Catalog Number
1745DC
UPC
784564003737
Product Weight
4.863 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
FMC
Style
Squeeze
Material
Zinc die cast
Connector type
90° angle
Insulator
Insulated
Trade size
3"
Crouse-Hinds series Connectors and Couplings - FMC catalog page
Connectors and Couplings - FMC UL certification
Connectors and Couplings - FMC UL certification
Eaton Specification Sheet - 1745DC
Feature: 90° angle squeeze design enables direct elbow routing for FMC conduit, reducing cabinet footprint and minimizing extra fittings. Business Impact: Shorter install times, fewer part counts, and improved cable management translate to lower labor costs and quicker project commissioning. Application: Ideal for machine panels and control cabinets in automated lines where space is at a premium. Feature: Zinc die cast body with insulated construction delivers rugged durability and reliable isolation. Business Impact: Enhanced corrosion resistance and electrical integrity extend service life in non-hazardous environments, reducing maintenance frequency. Application: Suitable for indoor industrial spaces with moderate exposure. Feature: 3" trade size supports common FMC configurations while ensuring consistent performance across assemblies. Business Impact: Streamlines stocking and installation, improving interchangeability in panel wiring. Application: Process automation and packaging lines. Feature: NEC/CEC compliance and ordinary location rating provide regulatory confidence. Business Impact: Simplifies design approvals and reduces compliance risk across US and Canadian facilities. Application: Electrical control rooms and non-hazardous production areas. Feature: Quick mounting and secure tightening with standard fittings improves field serviceability. Business Impact: Faster rework and reduced downtime during panel upgrades. Application: Retrofitting and new builds in industrial settings with frequent maintenance cycles.
Get a Quick Quote for a Eaton 1745DC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1745DC?
Enquire Now
FAQs
The 1745DC is designed specifically for FMC conduits and provides a 90° squeeze connection with insulated zinc die cast housing. It supports a 3" trade size and is compatible with standard FMC fittings and mounting methods, enabling quick, secure panel wiring in manufacturing and process automation environments.
The 1745DC adheres to NEC/CEC standards and is rated for ordinary/non-hazardous locations. UL certification information is available for FMC connectors, and Eaton’s catalog pages provide specification sheets that confirm compliance for Canadian and US installations.
Key specs include conduit type FMC, style Squeeze, material zinc die cast, insulator, 90° connector angle, and 3" trade size. The product weight is 4.863 lb, with a compact footprint suitable for dense control panels and machine housings.
Yes. The 1745DC is specified for Ordinary/Non-Hazardous Locations under NEC/CEC, making it appropriate for standard manufacturing floors, non-hazardous process environments, and typical control cabinet applications.
The 1745DC’s 90° squeeze design reduces routing complexity and part count, while the insulated zinc die cast body ensures durable, vibration-resistant connections. This translates to faster installations, fewer maintenance issues, and improved electrical integrity in automated systems.
