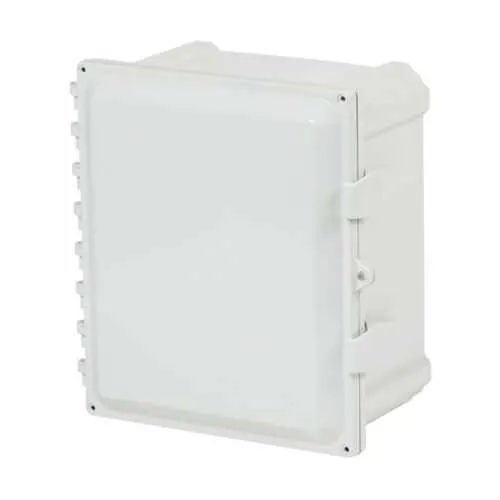

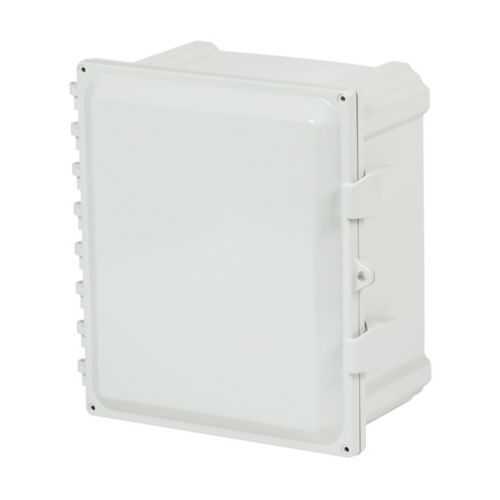

Eaton 181610-4XPCQR JIC Panel Enclosure - NEMA 4X
Part Number: 181610-4XPCQR
Quick Summary
Eaton 181610-4XPCQR JIC panel enclosure protects electrical panels in harsh industrial environments. Technicians struggle with moisture ingress, corrosion, and limited mounting options in rugged facilities. Its NEMA 4X protection and polycarbonate construction address these challenges, providing reliable corrosion resistance and impact protection in outdoor or damp settings. Wall-mount design with a hinged access and padlock provision supports secure, service-friendly installations, while optional external mounting feet add mounting flexibility. This enclosure pairs with the Eaton B-Line series to deliver a cohesive, durable solution for demanding electrical infrastructure and automation projects.
Product Information
Extended Description
181610-4XPCQR Eaton: Eaton B-Line series JIC panel enclosure, 19.4" height, 11.9" length, 18.7" width, NEMA 4X, Hinged cover, 4XPCQR enclosure, Wall mount, Medium single door, Optional external mounting feet, Polycarbonate
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
181610-4XPCQR
UPC
799038775300
Product Length/Depth
11.9 in
Product Height
19.4 in
Product Width
18.7 in
Product Weight
11.3 lb
Compliances
Not Applicable
Certifications
Not Applicable
Material
Polycarbonate
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
4XPCQR enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Optional external mounting feet
Locking provisions
Padlock provision
Closure type
Hinged
Special features
Polycarbonate pull drawn catch
NEMA Rating
4X
Country of origin
US
NEMA 4X protection with polycarbonate construction delivers robust corrosion and moisture resistance, reducing maintenance cycles and field failures in outdoor or washdown environments. The lightweight yet tough enclosure lowers handling and installation costs while maintaining critical control and power protection for industrial automation panels. Hinged cover with padlock provisions improves security and speeds routine servicing, minimizing downtime in high-traffic facilities. Wall mounting with optional external mounting feet provides installation flexibility, enabling quick retrofits or new builds in tight spaces without sacrificing mounting stability. The medium single door design and polycarbonate pull drawn catch deliver reliable operation and easy access for technicians, supporting efficient plant operations and long-term lifecycle cost reductions.
Get a Quick Quote for a Eaton 181610-4XPCQR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 181610-4XPCQR?
Enquire Now
FAQs
For wall-mount installations, verify a solid wall surface and clearance for a hinged door. Use the optional external mounting feet if you require additional stability on uneven substrates. Ensure sufficient ventilation and avoid obstructing the padlock area to maintain quick access during maintenance.
NEMA 4X indicates protection against corrosion, wind-driven rain, splashing water, and hose-down environments. This makes the enclosure suitable for outdoor, washdown, and challenging industrial settings, helping to extend equipment life and reduce enclosure-related failures.
Yes. The JIC panel enclosure is designed for wall mounting with a hinged cover and padlock provisions, offering secure, accessible housing for control wiring, relays, and small automation panels in factory environments.
The enclosure is rated NEMA 4X and originates from the US. While CE/SIL certifications are not listed in the provided data, the NEMA 4X rating and US origin provide strong regulatory alignment for many North American industrial applications.
Benefits include reduced maintenance due to superior moisture and corrosion protection, fewer ingress-related failures, and faster service thanks to the hinged door and padlock security. The lighter polycarbonate construction also lowers handling costs during installation and relocation, contributing to lower lifecycle costs in automation projects.
