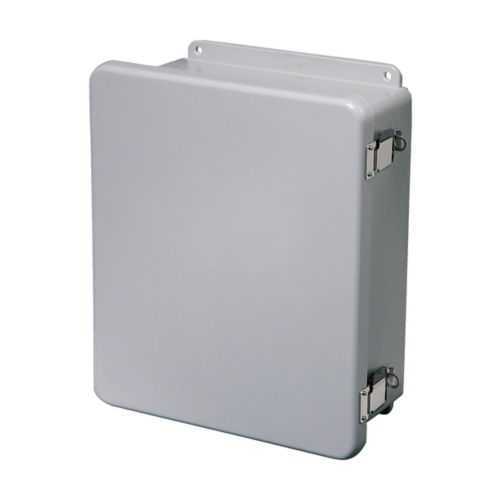

Eaton 18168-4XFCHQRC JIC Panel Enclosure - NEMA 4X
Part Number: 18168-4XFCHQRC
Quick Summary
The Eaton 18168-4XFCHQRC JIC panel enclosure is a fiberglass, wall-mounted housing designed for rugged control panels in industrial environments. For engineers confronting moisture, dust, or outdoor exposure, enclosure integrity can be a bottleneck; this unit addresses that with a seamless poured-in-place gasket and corrosion-resistant construction. It carries UL 50, NEMA 4X, and CSA C22.2 certifications, ensuring weatherproof performance and safe operation in demanding settings. The combination of external mounting feet, a hinged cover, and padlock provisions simplifies installation and security, while the stainless pull-drawn catch supports reliable latching and long-term maintenance. This medium, single-door enclosure delivers practical value for uptime, maintenance readiness, and regulatory compliance in manufacturing and process environments.
Product Information
Extended Description
18168-4XFCHQRC Eaton: Eaton B-Line series JIC panel enclosure, 19.62" height, 8.82" length, 17.61" width, NEMA 4X, Hinged cover, 4XFCHQRC enclosure, Wall mount, Medium single door, External mounting feet, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
18168-4XFCHQRC
UPC
782051524000
Product Length/Depth
8.82 in
Product Height
19.62 in
Product Width
17.61 in
Product Weight
19.3 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
4XFCHQRC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Locking provisions
Padlock provision
Closure type
Hinged
Special features
Stainless pull drawn catch
NEMA Rating
4X
Country of origin
US
Feature: Fiberglass construction provides corrosion resistance and non-conductive properties. Benefit: Extends service life in harsh environments and reduces electrical interference, enabling reliable control panel operation in chemical plants and outdoor installations. Application: Industrial facilities with exposure to moisture or chemicals. Feature: NEMA 4X rating with UL 50 and CSA C22.2 certifications. Benefit: Ensures weatherproof, dust-tight, and secure performance, meeting stringent regulatory requirements. Application: Outdoor equipment housings, washdown areas, and harsh production floors. Feature: Seamless poured-in-place gasket system. Benefit: Creates a robust barrier against ingress, lowering maintenance downtime and protecting sensitive electronics. Application: Environments with frequent washdowns or high humidity. Feature: Hinged cover with padlock provisions and stainless pull-drawn catch. Benefit: Improves access control and quick servicing while maintaining secure enclosure closure. Application: Facilities requiring restricted access to control gear and fast, reliable latching. Feature: External mounting feet and wall-mount capability. Benefit: Flexible installation options, simplifying retrofits and new installations alike. Application: Wall-mounted control cabinets in limited spaces across manufacturing floors. Feature: Medium single-door configuration with dimensions 19.62 in H × 17.61 in W × 8.82 in D and weight around 19.3 lb. Benefit: Provides ample internal space without excessive weight, easing handling and mounting. Application: Retrofit projects where existing cabinets require compact yet capable housing.
Get a Quick Quote for a Eaton 18168-4XFCHQRC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 18168-4XFCHQRC?
Enquire Now
FAQs
The enclosure is designed for wall mounting with external mounting feet, providing flexible installation in tight spaces. The hinged cover and padlock provisions allow secure, service-friendly access, making retrofits or new installs straightforward for control cabinets in manufacturing or process environments.
Yes. It carries a NEMA 4X rating and UL 50/CSA C22.2 certifications, signaling weatherproof and corrosion-resistant performance suitable for outdoor installations, washdowns, and aggressive environments typical of industrial facilities.
The enclosure measures 19.62 inches in height, 17.61 inches in width, and 8.82 inches in depth, with an approximate weight of 19.3 pounds. This size provides ample internal space for typical panel assemblies while remaining manageable for installation.
Yes. It features a padlock provision, a hinged cover, and a stainless pull-drawn catch for reliable, one-hand operation. These features support secure access control and straightforward maintenance without compromising enclosure integrity.
The unit is UL 50, NEMA 4X, and CSA C22.2 certified, ensuring compliance with common electrical and environmental standards. It is manufactured in the United States, aligning with US-based sourcing and quality expectations for Eaton B-Line enclosures.
