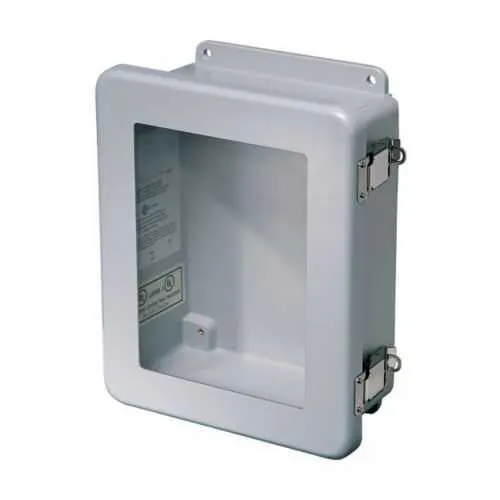

Eaton 18168-4XFCHQRCW JIC panel enclosure - NEMA 4X
Part Number: 18168-4XFCHQRCW
Quick Summary
Eaton B-Line series JIC panel enclosure protects electrical gear in industrial control panels and wall-mounted cabinets. Facilities often struggle with moisture ingress, corrosion, and security concerns that disrupt uptime and safety. This model carries NEMA 4X, UL 50, and CSA C22.2 certifications, ensuring weather resistance, electrical compliance, and long service life. In addition to weatherproof performance, the fiberglass construction and hinged cover simplify maintenance, while external mounting feet enable flexible, code-compliant installation. For engineers and procurement teams, that translates to reduced downtime, lower maintenance costs, and a reliable housing for critical control gear.
Product Information
Extended Description
18168-4XFCHQRCW Eaton: Eaton B-Line series JIC panel enclosure, 19.62" height, 8.82" length, 17.61" width, NEMA 4X, Hinged cover, 4XFCHQRCW enclosure, Wall mount, Medium single door, External mounting feet, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
18168-4XFCHQRCW
UPC
782051524130
Product Length/Depth
8.82 in
Product Height
19.62 in
Product Width
17.61 in
Product Weight
19.3 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
4XFCHQRCW enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Locking provisions
Padlock provision
Closure type
Hinged
Special features
Stainless pull drawn catch
NEMA Rating
4X
Country of origin
US
Feature: Fiberglass construction provides exceptional corrosion and moisture resistance. Business Impact: Extends service life and reduces maintenance costs in outdoor and damp environments. Application: Ideal for outdoor substations, water treatment facilities, and chemical processing plants where weather and chemical exposure are a concern. Feature: External mounting feet and wall-mount capability enable quick, code-compliant installation. Business Impact: Shortens installation time, improves mounting security, and simplifies retrofit projects. Application: Suitable for wall-mounted control panels in crowded electrical rooms or outdoor equipment housings. Feature: Seamless poured-in-place gasket and hinged cover deliver weather-tight sealing. Business Impact: Maintains internal component integrity, lowers ingress-related failures, and enhances safety. Application: PLC housings, drives, and relays in harsh environments requiring reliable seals. Feature: Padlock provisions and stainless pull drawn catch improve security and reliability. Business Impact: Reduces tampering risk and provides fast, secure access for authorized maintenance. Application: Industrial automation panels on manufacturing lines and in outdoor installations. Feature: Compliance with NEMA 4X, UL 50, and CSA C22.2 standards. Business Impact: Regulatory alignment minimizes risk, simplifies purchasing across locations, and supports QA programs. Application: Any sector needing rugged, code-compliant enclosures with durable fiberglass construction.
Get a Quick Quote for a Eaton 18168-4XFCHQRCW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 18168-4XFCHQRCW?
Enquire Now
FAQs
The enclosure is designed for wall mounting with external mounting feet, enabling secure surface installation and adaptable positioning in tight spaces or retrofit projects. This supports code-compliant wiring layouts and simplifies panel integration.
NEMA 4X provides weatherproof and corrosion-resistant protection, making the enclosure suitable for outdoor use and harsh environments. Combined with the fiberglass body and seamless gasket, it reduces ingress of water, dust, and chemicals.
Yes. The combination of fiberglass material, NEMA 4X rating, and UL 50/CSA C22.2 certifications makes it appropriate for chemical processing environments, where moisture, humidity, and chemical exposure are common.
Plan for appropriate mounting hardware and surface clearance to accommodate the doors and gasket. External feet require stable anchoring and level mounting to ensure seal integrity and serviceability during maintenance.
While initial cost reflects rugged fiberglass construction and corrosion resistance, long-term ROI comes from reduced maintenance, fewer downtime events, and extended service life in demanding environments.
