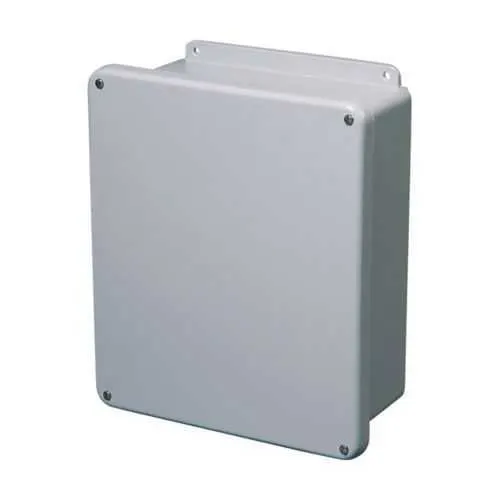

Eaton 18168-4XFLC JIC panel enclosure - NEMA 4X
Part Number: 18168-4XFLC
Quick Summary
The Eaton B-Line series JIC panel enclosure is designed to protect electrical controls in harsh industrial environments. Maintenance teams often face weather ingress, corrosion, and restricted access that drive downtime and service costs. This enclosure earns UL 50, NEMA 4X, and CSA C22.2 certifications, supporting safe operation, rugged durability, and cross-industry compatibility. Its fiberglass body provides corrosion resistance in challenging environments, while the seamless gasket keeps dust and moisture out. With a wall-mount design and external mounting feet, installation is straightforward in confined spaces and retrofit projects. This combination of material, protection, and mounting versatility makes it a dependable choice for industrial control panels in water, chemical, and manufacturing settings.
Product Information
Extended Description
18168-4XFLC Eaton: Eaton B-Line series JIC panel enclosure, 19.62" height, 8.82" length, 17.61" width, NEMA 4X, Screw cover, 4XFLC enclosure, Wall mount, Medium single door, External mounting feet, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
18168-4XFLC
UPC
782051523744
Product Length/Depth
8.82 in
Product Height
19.62 in
Product Width
17.61 in
Product Weight
19.3 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
4XFLC enclosure
Cover type
Screw
Mounting method
Wall
Mounting hole details
External mounting feet
NEMA Rating
4X
Country of origin
US
Fiberglass construction delivers excellent corrosion resistance and a lighter footprint compared to steel enclosures, reducing handling and installation time while extending service life in chemical and washdown environments. Feature → Business Impact → Application: The fiberglass material plus a sealed gasket means longer intervals between maintenance and lower operational risk, ideal for process plants and outdoor installations where exposure to moisture and chemicals is common. Application: Use in manufacturing lines and outdoor control panels where sturdy, low-maintenance housing is required. Feature → Business Impact → Application: NEMA 4X rating provides weatherproof and moisture-resistant protection, ensuring compliant operation in harsh environments and reducing field fault rates. Application: Suitable for washdown areas, outdoor installations, and plants with demanding environmental conditions. Feature → Business Impact → Application: Seamless poured-in-place gasket and screw cover enable quick access to wiring while maintaining a tight seal, cutting service time and supporting safer inspections. Application: retrofit projects and new builds needing reliable, easy-maintenance enclosures. Feature → Business Impact → Application: Wall mounting with external feet offers flexible mounting options and improved clearance in tight spaces, enabling faster installation and easier line routing. Application: control panels in space-constrained electrical rooms. Feature → Business Impact → Application: Medium single door design provides convenient access for wiring and component replacement, improving maintenance workflows. Application: process controls and automation panels requiring straightforward operator access without compromising security.
Get a Quick Quote for a Eaton 18168-4XFLC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 18168-4XFLC?
Enquire Now
FAQs
Plan for wall mounting using the external feet provided, ensuring the enclosure sits level and clear of obstructions. The screw-cover design allows quick access during commissioning and maintenance, while the dimensions (19.62 in H, 17.61 in W, 8.82 in D) fit standard control panel footprints. Consider gasket integrity and seal checks during installation to maintain NEMA 4X protection.
Dimensions are 19.62 in height, 17.61 in width, 8.82 in depth; weight is 19.3 lb. Material is fiberglass with an unfinished gray finish. It features a medium single door, screw cover, wall mounting, external mounting feet, and a NEMA 4X rating. Catalog number is 18168-4XFLC, with UPC 782051523744.
Yes. The NEMA 4X rating provides protection against water, corrosion, and certain chemicals, making it suitable for outdoor and washdown environments. The fiberglass construction further enhances corrosion resistance, though consider environmental exposure and color finish needs for specific installations.
The enclosure is certified to UL 50, NEMA 4X, and CSA C22.2 standards, ensuring electrical safety, robust weatherproofing, and compatibility with process control applications. It is manufactured in the United States.
The screw cover enables rapid access to internal wiring, while external mounting feet simplify mounting alignment. The wall-mount design and gasketed seam provide reliable protection while allowing straightforward integration with standard JIC panel configurations in automation and process control environments.
