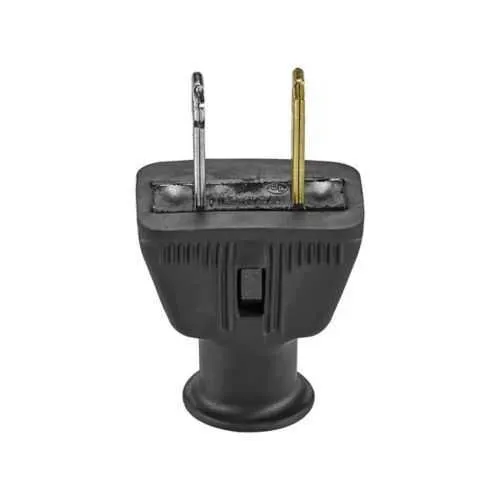

Eaton straight blade plug 183-6BK-BOX - UL NOM 6221-02 compliant
Part Number: 183-6BK-BOX
Quick Summary
Eaton straight blade plug 183-6BK-BOX is a polarized, two-wire plug designed for commercial 125V circuits and NEMA 1-15P configurations. This design minimizes miswiring and speeds installation in ed box environments by offering a robust back-wire termination plus a secure screw connection. It carries safety and compliance credentials such as UL NOM Federal Specification Classification 6221-02, reinforcing reliability in harsh commercial settings. With brass contact材 materials and a durable thermoplastic rubber body, it delivers long-term performance. For procurement teams, this plug combines conventional compatibility with a compact ED Box packaging, reducing field RF and inventory complexity while meeting standard electrical codes.
Product Information
Extended Description
183-6BK-BOX Eaton: Eaton straight blade plug , #18-10 AWG, 15A, Commercial, 125V, Back wire, Black, Brass, Thermoplastic, 1-15P, Two-pole, two-wire, non grounding, Screw, 0.328" diameter, Thermoplastic rubber, ED Box, polarized
Product Name
Eaton straight blade plug
Catalog Number
183-6BK-BOX
UPC
032664215209
Product Length/Depth
0.73 in
Product Height
1.98 in
Product Width
1.17 in
Product Weight
0.038 lb
Certifications
UL NOM Federal Specification Classification 6221 02
Device type
Plug
Special features
Polarized
Type
Rubber plug
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Polarized
Application
Commercial
Device grade
Standard grade
Wiring method
Back wire
Number of wires
2
Number Of Poles
Two-pole
Style type
Straight body
Cord range
0.328" diameter
Material
Thermoplastic rubber
Packaging type
ED Box
Color
Black
Connection type
Screw
Allowable wire size
#18-10 AWG
NEMA configuration
1-15P
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Thermoplastic
Receptacle type
Two-pole, two-wire, non grounding
Residential Buyers Guide B-52
Commercial and residential straight blade vinyl receptacles
Eaton Specification Sheet - 183-6BK-BOX
Feature → Business Impact → Application: Polarized design reduces cross-wiring errors in 125V circuits, improving safety and first-pass wiring success in commercial fixtures. This is paired with a back-wire termination method that speeds installation and minimizes tool requirements, cutting field labor time for frequent receptacle replacements in office buildings and retail spaces. Feature → Application: Two-wire, non-grounding configuration (1-15P) aligns with standard non-grounded circuits, supporting common non-IS lighting and appliance extensions without need for grounding adapters, simplifying compliance reviews in commercial fit-outs. Feature → Business Impact → Application: 15A rating with 125V rating and 0.328 inch wire-branch compatibility (#18-10 AWG) ensures robust load handling for typical equipment, reducing nuisance trips and warranty calls in constant-use environments such as classrooms, corridor lighting, and convenience outlets. Feature → Installation Advantage → Application: Brass contact material and thermoplastic rubber body deliver corrosion resistance and durable mating performance, improving lifecycle cost and lowering maintenance in high-use commercial installations. Feature → Compatibility & Packaging → Application: ED Box packaging and polarized design streamline field stocking and installation workflows, promoting standardization across projects and accelerating procurement cycles for electrical contractors and facilities teams. Feature → Objection Handling → Application: Torque rating of 14 lbf-in provides a defined torque target for secure connections, addressing concerns about loose terminations in busy electrical rooms and enabling consistent re-assembly during retrofit projects. Feature → Industry Context → Application: Part of Eaton’s wide ED Box line, this plug supports widespread compatibility with brass terminals and standard NEMA 1-15P outlets, ensuring easy integration into existing commercial wiring schemes and reducing total cost of ownership.
Get a Quick Quote for a Eaton 183-6BK-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 183-6BK-BOX?
Enquire Now
FAQs
To install the 183-6BK-BOX, prepare two #18-10 AWG conductors, strip to the correct length, and insert into the back-wire terminals per the device’s polarised configuration. Tighten the screw terminals to the 14 lbf-in torque specification to ensure a secure connection. Mount in an ED Box with the 1-15P receptacle alignment, and verify polarity before energizing.
Yes. The device is designed for back-wire termination with #18-10 AWG conductors, accommodating a 0.328 inch cord diameter. It supports two wires in a non-grounding, two-pole configuration (1-15P) and is intended for 15A at 125V applications.
The 183-6BK-BOX carries UL NOM Federal Specification Classification 6221-02, indicating compliance with recognized safety and performance standards for commercial wiring devices. This helps ensure regulatory alignment, reduces risk during inspections, and supports reliability in office, retail, and industrial facilities.
Its polarized two-wire design, back-wire termination, and 15A at 125V rating suit many commercial loads. Brass contacts provide durable conductivity, while the thermoplastic body and ED Box packaging enable quick installation, resistance to environment factors, and straightforward field servicing in offices, schools, and retail environments.
Routine checks should verify that the back-wire terminals are tight (14 lbf-in torque), the brass contacts show no signs of pitting or corrosion, and the thermoplastic body remains intact with no cracks. Given standard use in commercial environments, replace the plug if wear or overheating occurs to maintain safety and performance.
