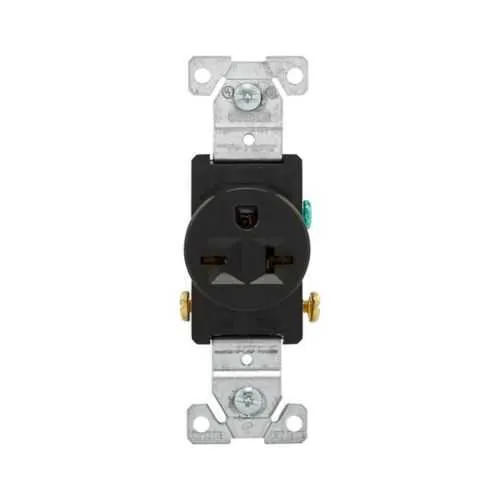

Eaton 1876BK Receptacle - cULus Listed, 20A 250V
Part Number: 1876BK
Quick Summary
The Eaton 1876BK Receptacle is a commercial-grade single receptacle for commercial power distribution. Installers often face compatibility issues, grounding challenges, and compliance hurdles when upgrading legacy outlets. This model addresses those pain points with RoHS compliance, cULus listing, and Federal Specification Classification 6233 01 to help ensure safe, code-compliant installations. Built for 20A at 250V and supporting #14-10 AWG side-wire connections, it offers durable brass contact material and a nylon face with PVC bottom for long-lasting performance in busy environments. The combination of a flush mounting design and auto-grounding feature reduces installation time, minimizes field failures, and supports high-traffic commercial applications, making it a reliable choice for contractors and facility managers.
Product Information
Extended Description
1876BK Eaton: Eaton commercial specification grade single receptacle, #14-10 AWG, 20A, Commercial, Flush, 250V, Side wire, Black, Brass, Nylon face, PVC bottom, 6-20R, Single, Screw, PVC, Core pack
Product Name
Eaton commercial specification grade single receptacle
Catalog Number
1876BK
UPC
032664563553
Product Length/Depth
1.31 in
Product Height
4.19 in
Product Width
0.83 in
Product Weight
0.15 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM Federal Specification Classification 6233 01
Device type
Receptacle
Type
Single receptacle
Amperage Rating
20A
Voltage rating
250V
Contact material
Brass
Features
Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
Core pack
Color
Black
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
6-20R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Nylon face PVC bottom
Receptacle type
Single
Residential straight blade receptacles
Eaton Specification Sheet - 1876BK
Eaton Specification Sheet - 1876BK
High current rating of 20A at 250V ensures reliable power delivery for medium-duty loads, improving circuit utilization and reducing nuisance trips in busy commercial spaces. This NEMA 6-20R configuration enables straightforward integration with common 6-20 plugs, supporting durable, code-compliant outlets in wall and panel installations. Side-wire wiring method supports secure terminations with #14-10 AWG, speeding up installs and reducing field wiring errors, while screw connections provide proven reliability in commercial environments. Auto-grounding enhances safety by ensuring a solid ground path with minimal installer steps, and brass contact material offers high conductivity and wear resistance in high-use outlets. The flush mounting design yields a sleek finish suitable for visible commercial applications, complemented by a nylon face and PVC bottom for abrasion resistance. Core pack packaging helps reduce waste and streamline procurement on large projects, aligning with modern sustainability goals. Combined certifications and material choices support compliance, maintenance predictability, and lower long-term costs.
Get a Quick Quote for a Eaton 1876BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1876BK?
Enquire Now
FAQs
The 1876BK supports side-wire wiring with #14-10 AWG conductors and screw terminals. This combination enables secure terminations, reduces installer effort, and improves reliability in commercial installations. The design accommodates three conductors for a two-pole receptacle configuration, ensuring proper grounding and load distribution in wall outlets and mounting positions.
Yes. The Eaton 1876BK is RoHS Compliant and carries multiple certifications, including cULus Listed, NOM, and Federal Specification Classification 6233 01. These certifications validate safety, regulatory compliance, and suitability for use in commercial electrical applications, helping you meet project requirements and code expectations with confidence.
The 1876BK is ideal for commercial power distribution in offices, retail spaces, and other high-traffic areas. Its 20A, 250V rating and NEMA 6-20R configuration make it suitable for mid-range electrical loads, while the flush-mount design provides a clean finished look in walls and panels, supporting code-compliant installations across commercial facilities.
Auto-grounding simplifies safety and compliance by providing an inherent ground path as the receptacle is installed. This reduces the risk of missing or poor grounding during field wiring, speeds up commissioning, and minimizes post-installation adjustments. Combined with durable brass contacts, it enhances longevity and reduces maintenance needs in busy environments.
Durable materials (brass contacts, nylon face, PVC bottom), a robust 14 lbf-inch torque, and a 6-20R configuration reduce failure rates and replacement costs in high-use spaces. RoHS and cULus certifications simplify regulatory compliance, while core-pack packaging supports efficient procurement. Together, these factors lower lifecycle costs and improve uptime for facilities and contractors.
