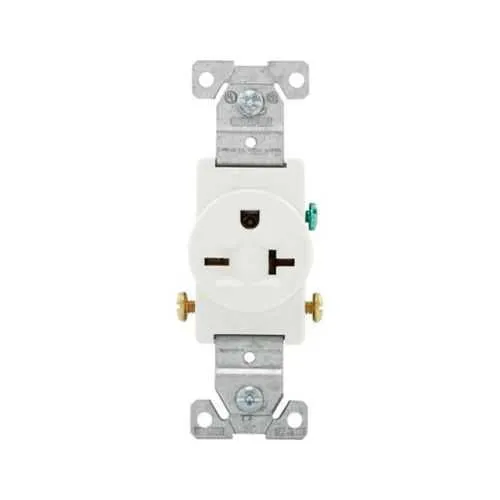

Eaton 1876W-BOX Receptacle - RoHS & cULus Listed
Part Number: 1876W-BOX
Quick Summary
1876W-BOX is an Eaton commercial specification grade single receptacle designed for flush-mount installations in commercial spaces. In busy electrical rooms and demanding installations, reliability and correct wiring are critical to project timelines and ongoing maintenance costs. This receptacle meets RoHS compliance and is cULus listed, with Federal Specification 6233 01 ensuring traceability and performance in regulated environments. It supports #14-10 AWG wiring, 250V operation, and a 20A rating, delivering robust power delivery without compromising safety. By combining durable nylon face, PVC bottom, and auto-grounding, it reduces retrofit needs and simplifies field service while aligning with common procurement specs and building codes.
Product Information
Extended Description
1876W-BOX Eaton: Eaton commercial specification grade single receptacle, #14-10 AWG, 20A, Commercial, Flush, 250V, Side wire, White, Brass, Nylon face, PVC bottom, 6-20R, Single, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade single receptacle
Catalog Number
1876W-BOX
UPC
032664752582
Product Length/Depth
1.31 in
Product Height
4.19 in
Product Width
0.83 in
Product Weight
0.001 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM Federal Specification Classification 6233 01
Device type
Receptacle
Type
Single receptacle
Amperage Rating
20A
Voltage rating
250V
Contact material
Brass
Features
Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
White
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
6-20R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Nylon face PVC bottom
Receptacle type
Single
Residential straight blade receptacles
Eaton Specification Sheet - 1876W-BOX
Eaton Specification Sheet - 1876W-BOX
Feature: 20A at 250V rating; Business Impact: supports reliable power delivery for standard commercial equipment and reduces nuisance trips; Application: offices, retail spaces, light industrial areas. Feature: NEMA configuration 6-20R with side-wire termination; Business Impact: simplifies wiring while maintaining code-compliant power distribution; Application: flush-mounted wall outlets in commercial panels. Feature: Auto-grounding and brass contact materials; Business Impact: enhances safety and long-term conductivity, lowering maintenance costs; Application: high-use commercial outlets with frequent plug-in cycles. Feature: Nylon face, PVC bottom and ED Box packaging; Business Impact: robust, moisture-resistant housing and easy field sourcing reduce installation time; Application: durable installations in busy facilities. Feature: 3-wire wiring for #14-10 AWG; Business Impact: reduces complexity and ensures consistent, per-spec connections; Application: new build and retrofit projects requiring dependable power receptacles.
Get a Quick Quote for a Eaton 1876W-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1876W-BOX?
Enquire Now
FAQs
The 1876W-BOX uses side-wire termination compatible with #14-10 AWG conductors and screw connections, designed for flush mounting in an ED Box. It features a 14 lbf-inch torque rating for secure terminations. This combination helps installers complete reliable connections quickly, with fewer call-backs due to loosened or improper wiring in commercial spaces.
This receptacle is rated at 20A and 250V, with brass contact material and auto-grounding. It is RoHS compliant and cULus listed, including Federal Specification Classification 6233 01, which supports regulatory compliance and safe operation in commercial building environments.
Yes. With a standard single receptacle design, NEMA 6-20R configuration, and flush-mount capability in an ED Box, the 1876W-BOX is ideal for commercial installations such as offices, retail environments, and other high-traffic spaces requiring durable, compliant power outlets.
Ensure wiring uses #14-10 AWG with side-wire terminations, followed by proper torque (14 lbf-in) to maintain reliable contact pressure. Use the flush-mount ED Box for correct enclosure fit, and verify RoHS and cULus certifications for regulatory compliance in your jurisdiction. Auto-grounding further enhances safety in equipment-grounded installations.
The 1876W-BOX offers durable materials (nylon face, PVC bottom) and solid brass contacts, reducing maintenance and replacement cycles in busy facilities. RoHS and cULus compliance lower risk of regulatory issues, while the reliability of 20A/250V operation minimizes downtime and service calls in commercial power environments.
