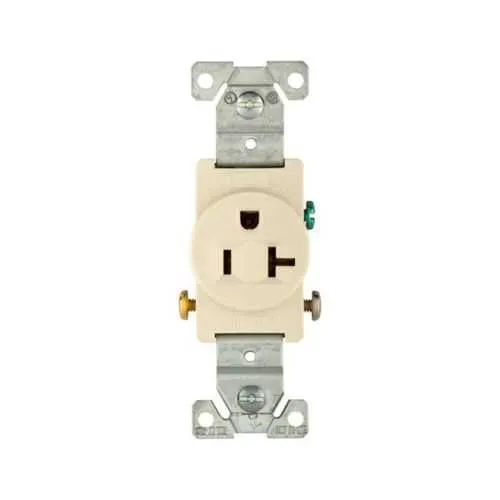

Eaton 1877LA Receptacle - Commercial Grade cULus Listed
Part Number: 1877LA
Quick Summary
Eaton 1877LA receptacle delivers reliable 20A, 125V power for commercial spaces. Installers often contend with mixed wiring methods and non-compliant devices; this unit simplifies code-ready connections. It carries cULus Listed, NOM, and Federal Specification 6233-01 certifications to meet stringent safety and performance standards. Designed for flush-mount installations with side-wire terminals and auto-grounding, its durable nylon face and PVC bottom construction support long-term reliability in busy facilities. For contractors and procurement teams, the commercial-grade 1877LA reduces field callbacks and supports consistent installation across projects.
Product Information
Extended Description
1877LA Eaton: Eaton commercial specification grade single receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Side wire, Light almond, Brass, Nylon face, PVC bottom, 5-20R, Single, Screw, PVC, Core pack
Product Name
Eaton commercial specification grade single receptacle
Catalog Number
1877LA
UPC
032664583261
Product Length/Depth
1.31 in
Product Height
4.19 in
Product Width
0.87 in
Product Weight
0.13 lb
Certifications
cULus Listed NOM Federal Specification Classification 6233 01
Device type
Receptacle
Type
Single receptacle
Amperage Rating
20A
Voltage rating
125V
Contact material
Brass
Features
Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
Core pack
Color
Light almond
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Nylon face PVC bottom
Receptacle type
Single
Residential straight blade receptacles
Eaton Specification Sheet - 1877LA
Eaton Specification Sheet - 1877LA
Feature: 20A, 125V, NEMA 5-20R single receptacle with side wiring and screw terminals. Business impact: Ensures code-compliant, robust power delivery while minimizing contact resistance and loosening over time. Application: Office spaces, retail storefronts, and healthcare areas requiring reliable 125V outlets. Feature: Auto-grounding and brass contact material with a nylon face and PVC bottom. Business impact: Enhanced safety through a dependable ground path and durable, corrosion-resistant electrical contacts. Application: High-traffic commercial walls where frequent plug/load cycling occurs. Feature: Side-wire wiring method supporting #14-10 AWG, 3-wire configuration, flush mounting, 14 lbf-inch torque rating. Business impact: Faster, consistent field installations with reduced rework and standardized torque; compatible with common electrical boxes. Application: New-builds and renovations in commercial facilities. Feature: Color and packaging specifics: light almond finish, core pack packaging. Business impact: Streamlined stocking and faster project timelines with ready-to-install parts that blend with interior aesthetics. Application: Datasheet-compliant procurement for standardized project builds. Feature: Certifications and compliance: cULus Listed, NOM, Federal Specification 6233-01. Business impact: Lower risk of non-compliance, smoother audit trails, and safer installations across regulated environments. Application: Industrial facilities, offices, and retail spaces seeking dependable training and maintenance outcomes.
Get a Quick Quote for a Eaton 1877LA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1877LA?
Enquire Now
FAQs
Yes. The 1877LA supports side wiring for #14-10 AWG conductors and uses screw connections. With a 14 lbf-inch torque rating and a flush-mount design, it enables quick, dependable installations in commercial boxes while meeting common wiring practice standards.
The 1877LA is a 20A, 125V single receptacle in the NEMA 5-20R configuration. It uses brass contacts and a nylon face with a PVC bottom, suitable for commercial-grade power delivery and durable daily use in busy facilities.
Yes. It is marketed as a commercial specification grade receptacle designed for flush mounting, side-wire connection, and auto-grounding, making it ideal for office, retail, and healthcare installations that require reliable, up-to-code outlets.
The 1877LA carries cULus Listed and NOM certifications, plus Federal Specification 6233-01. These certifications support regulatory compliance, project approvals, and safer operation across commercial environments.
By offering auto-grounding, robust brass contacts, and side-wire screw-term connections, the 1877LA reduces field faults and callbacks, simplifies installation, and supports longer service life, delivering lower maintenance costs and improved system reliability for facility managers.
