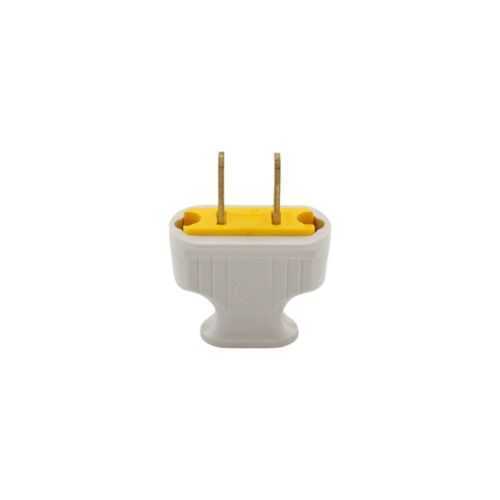

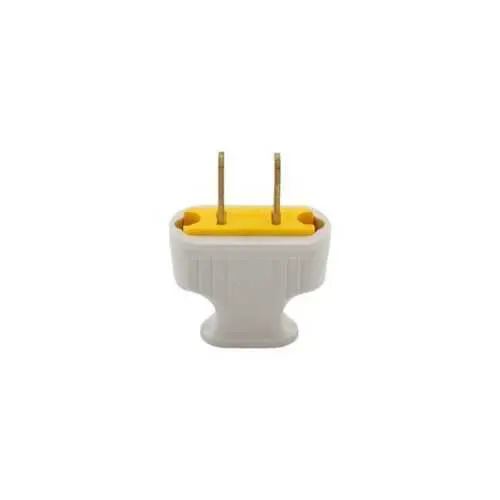

Eaton 1912W-BOX Plug - Flat blade, 15A 125V UL NOM 6221 02
Part Number: 1912W-BOX
Quick Summary
The Eaton 1912W-BOX plug is a straight blade electrical receptacle designed for residential wiring installations. Installers often struggle with secure back-wire terminations in compact enclosures, risking loose connections. It carries UL listing, NOM certification, and Federal Specification Classification 6221 02, underscoring safety compliance. This model delivers a rugged, non-grounding, two-pole solution with a white thermoplastic body, easing retrofits and standardizing residential wiring projects. With 15A at 125V and back-wire capability, it integrates smoothly into ED Box packaging and supports efficient installation and reliable operation. For procurement teams, it helps standardize components across projects, reducing variation and costly call-backs.
Product Information
Extended Description
1912W-BOX Eaton: Eaton straight blade plug , #18-16 AWG, 15A, Residential, 125V, Back wire, White, Brass, Thermoplastic rubber, 1-15P, Two-pole, two-wire, non grounding, Screw, Thermoplastic, ED Box
Product Name
Eaton straight blade plug
Catalog Number
1912W-BOX
UPC
032664312106
Product Length/Depth
0.92 in
Product Height
1.98 in
Product Width
1.48 in
Product Weight
0.037 lb
Certifications
UL NOM Federal Specification Classification 6221 02
Device type
Plug
Special features
Flat handle
Type
Plug
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Flat handle
Application
Residential
Device grade
Commercial
Wiring method
Back wire
Number of wires
2
Number Of Poles
Two-pole
Style type
Straight body
Material
Thermoplastic
Packaging type
ED Box
Color
White
Connection type
Screw
Allowable wire size
#18-16 AWG
NEMA configuration
1-15P
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Thermoplastic rubber
Receptacle type
Two-pole, two-wire, non grounding
Residential Buyers Guide B-54
Commercial and residential straight blade vinyl receptacles
Eaton Specification Sheet - 1912W-BOX
Feature: Back-wire ready design with two conductors and screw-type connections. Business Impact: Speeds up installation and reduces field termination errors, contributing to faster project turnover and lower labor cost. Application: Ideal for new residential builds and retrofit projects using ED Box packaging. Feature: Thermoplastic body with brass contacts and a white finish. Business Impact: Delivers durable wear resistance and corrosion resistance in everyday use, lowering replacement frequency and warranty items. Application: Suitable for high-traffic residential wiring devices and long-life service in living spaces. Feature: NEMA configuration 1-15P, two-pole, non-grounding. Business Impact: Ensures compatibility with standard non-grounding circuits, minimizing device mismatches and scope creep. Application: Common in standard household outlets and light commercial applications. Feature: Wiring method back wire for #18-16 AWG, with a torque rating of 14 lbf-in. Business Impact: Provides secure terminations with repeatable torque, improving reliability and reducing thermal issues from loose connections. Application: Critical for tight spaces and back-water installations in ED Box assemblies. Feature: Packaging type ED Box and compliance with UL NOM 6221 02. Business Impact: Facilitates regulatory acceptance and streamlined stocking for distributors and installers, lowering compliance risk. Application: Residential wiring programs requiring certified, standardized components.
Get a Quick Quote for a Eaton 1912W-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1912W-BOX?
Enquire Now
FAQs
The 1912W-BOX uses back-wire termination for two conductors (#18-16 AWG), designed for a 1-15P two-pole, non-grounding configuration in ED Box packaging. It includes a 14 lbf-in torque requirement to ensure a secure, code-compliant connection.
This plug is rated for 15A and 125V, with a torque specification of 14 lbf-in. These specs support reliable, code-compliant residential wiring and help prevent loosening under typical load conditions.
Yes. It is a two-pole, non-grounding straight-blade receptacle designed for residential applications, featuring back-wire capability and ED Box packaging to streamline retrofit and new-construction installs.
The 1912W-BOX carries UL listing, NOM certification, and Federal Specification Classification 6221 02. These certifications support safety compliance, regulatory acceptance, and smoother procurement for regulated projects.
Back-wire capability, flat handle design, and ED Box packaging reduce installation time and make terminations more repeatable, lowering labor costs and minimizing call-backs due to loose connections or noncompliant terminations.
