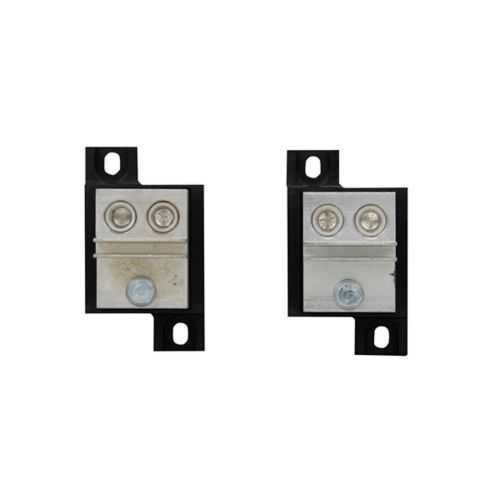

Eaton 1BS102 Universal Fuse Block - 600 V 200 kAIC
Part Number: 1BS102
Quick Summary
The Eaton 1BS102 Universal Fuse Block delivers reliable high-current protection for industrial power distribution panels. This modular block balances a compact footprint with full current capability, enabling safe, scalable protection in demanding environments. It supports 600 V systems and Type SC fuses, providing up to 400 A with a 200 kAIC interrupt rating to ensure fast fault clearing and equipment protection. The unit features RoHS-compliant construction and rugged materials, including a molded black phenolic base, tin-plated aluminum connector, and zinc-plated steel studs. By simplifying installation and reducing wiring complexity, it offers tangible lifecycle cost savings while meeting safety and environmental requirements in modern electrical rooms.
Product Information
Extended Description
1BS102 Eaton: Eaton Universal fuse block, Modular, 400 A, 150, Celsius, 150, Celsius, Screw, 200 kAIC, Molded black phenolic base, Tin-plated aluminum connector, Zinc-plated steel studs/nut/washer, Stud, 600 V, Used with Type SC fuses, #6-250 kcmil Cu/Al
Product Name
Eaton Bussmann series 1BS10x universal fuse block
Catalog Number
1BS102
UPC
051712134996
Product Length/Depth
6.6 in
Product Height
2.5 in
Product Width
3.2 in
Product Weight
0.975 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Amperage Rating
400 A
Interrupt rating
200 kAIC
Voltage rating
600 V
Material
Tin-plated aluminum connector Zinc-plated steel studs/nut/washer Molded black phenolic base
Operating temperature - max
150 °C
Operating temperature - min
150 °C
Wire size
#6-250 kcmil Cu/Al
Connection
Screw
Mounting method
Stud
Used with
Used with Type SC fuses
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - 1BS102
Bussmann series 1BS102 modular fuse block data sheet no. 1207
Datasheet - FNQ-30
Feature: Modular fuse block with screw connections and stud mounting. Business Impact: Simplifies panel design and serviceability, reduces spare parts, and improves fault isolation in challenging installations. Application: Feeder circuits and motor-control feeders in MCCs and switchgear environments. Feature: High current capability and fault withstand. Business Impact: Enables protection of large feeders with minimal upstream disruption, reducing downtime in critical processes. Application: Main feeders and distribution panels in manufacturing lines where 400 A protection is required and 200 kAIC interruption is needed. Feature: Robust materials and construction. Business Impact: Enhanced durability in harsh environments, lowering maintenance costs and extending service life. Application: Assembly lines, process plants, and outdoor or vibration-prone facilities. Feature: Type SC fuse compatibility. Business Impact: Streamlines spare parts management and ensures fast, reliable fuse replacement without adapters. Application: Panel boards and MCCs designed around Type SC fuses. Feature: Wire size flexibility and secure connections. Business Impact: Supports #6-250 kcmil Cu/Al conductors, reducing the need for multiple blocks and simplifying wiring bundles. Application: Large conductor installations in high-capacity electrical rooms. Feature: RoHS compliance. Business Impact: Aligns with environmental requirements while maintaining electrical integrity, aiding regulatory adherence. Application: Modern plant installations with corporate sustainability goals.
