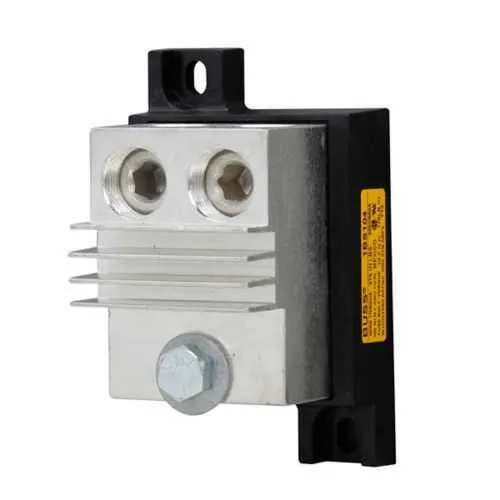

Eaton 1BS104 Universal Fuse Block - 200 kAIC, 600 V
Part Number: 1BS104
Quick Summary
Eaton Bussmann 1BS104 universal fuse block provides modular electrical protection for industrial distribution panels. Engineers often struggle with space constraints, wiring complexity, and ensuring fast fault interruption across feeders. This model is RoHS compliant and delivers robust ratings, including 600 V and a 200 kAIC interrupt capability, making it suitable for demanding environments. Its modular design supports scalable protection schemes, reducing spare parts while simplifying maintenance. With a sturdy molded phenolic base and tin-plated aluminum connectors, it offers durable, vibration-tolerant performance for control panels and power distribution rooms.
Product Information
Extended Description
1BS104 Eaton: Eaton Universal fuse block, Modular, 600 A, 150, Celsius, 150, Celsius, Set screw, 200 kAIC, Tin-plated aluminum connector, Molded black phenolic base, Zinc-plated steel studs/nut/washer, Stud, 600 V, #4-500 kcmil Cu/Al
Product Name
Eaton Bussmann series 1BS10x universal fuse block
Catalog Number
1BS104
UPC
051712135153
Product Length/Depth
1 in
Product Height
1 in
Product Width
1 in
Product Weight
0.05 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Amperage Rating
600 A
Interrupt rating
200 kAIC
Voltage rating
600 V
Material
Molded black phenolic base Zinc-plated steel studs/nut/washer Tin-plated aluminum connector
Operating temperature - max
150 °C
Operating temperature - min
150 °C
Wire size
#4-500 kcmil Cu/Al
Connection
Set screw
Mounting method
Stud
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - 1BS104
Bussmann series 1BS104 modular fuse block data sheet no. 1209
Datasheet - FNQ-30
Feature → Business Impact → Application: The 1BS104 uses a modular Bussmann design that enables scalable protection architectures, reducing installation time and future reconfiguration costs in evolving facilities. This directly improves system uptime and lowers total cost of ownership for industrial feeders and power distribution panels. Application-wise, it suits motor control centers and compact switchgear where space is at a premium. Feature → Business Impact → Application: It delivers a high interrupt rating of 200 kAIC and a 600 V rating, delivering enhanced safety margins and reduced fault propagation risk during faults in harsh industrial environments. Application: critical power feeders, machine controls, and process lines. Feature → Business Impact → Application: The set screw connections with stud mounting simplify field installation and ensure reliable, vibration-resistant wiring for Cu/Al conductors (#4-500 kcmil). Application: panel assemblies in manufacturing plants. Feature → Business Impact → Application: Durable construction using a molded black phenolic base and tin-plated aluminum connectors supports long service life in hot, dusty environments, reducing maintenance cycles and part replacements. Application: harsh production floors and outdoor enclosures. Feature → Business Impact → Application: RoHS compliant manufacturing compatibility ensures regulatory alignment across global facilities, helping avoid retrofits and streamlining procurement cycles. Application: electronics assembly lines and regulated industries.
Get a Quick Quote for a Eaton 1BS104
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1BS104?
Enquire Now
FAQs
When installing the 1BS104, ensure wiring uses Cu or Al conductors within the #4-500 kcmil range and employs the set screw connections mounted on the stud. Verify clearance for the 1 in by 1 in base footprint and follow manufacturer torque guidelines from the datasheets to maintain reliable electrical contact and vibration resistance in industrial panels.
Key specifications include a 600 A amperage rating, 200 kAIC interrupt rating, and a 600 V voltage rating. The assembly uses a molded black phenolic base with tin-plated aluminum connectors and zinc-plated steel studs. Wire size compatibility is #4-500 kcmil Cu/Al, with set-screw connections and stud mounting for robust installation.
Yes. The 1BS104 is designed as a modular universal fuse block suitable for motor control centers (MCCs) and power distribution panels. Its high interrupt rating and modular form factor support scalable protection schemes, while the set-screw terminals and durable materials ensure reliable operation in demanding environments.
The 1BS104 is RoHS compliant, aligning with restricted substances requirements. While RoHS is confirmed, for additional certifications such as CE or UL, consult Eaton datasheets and factory documentation to verify current listing status and any region-specific approvals.
The modular design reduces spare-parts variety and simplifies field configuration, cutting maintenance time during upgrades or expansion. High current capability and simple set-screw connections decrease downtime during fault isolation, improving overall equipment availability and reducing labor costs in routine servicing and panel reconfigurations.
