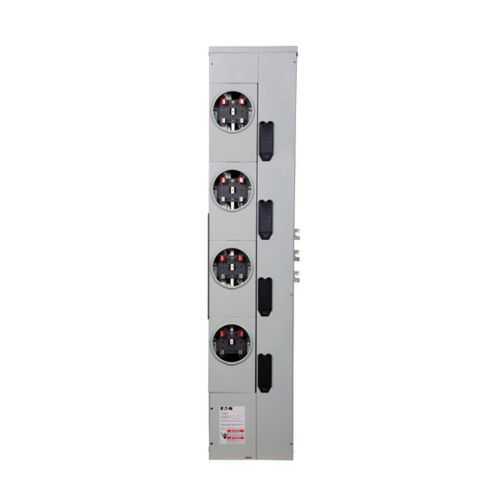

Eaton 1MM420R Residential Meter Stack - UL Listed

Outdoor meter stacks must endure harsh weather while delivering reliable metering interfaces. The 1MM420R uses an outdoor aluminum enclosure, measuring 64.5 in high by 13.5 in wide and 7.01 in deep, with a 102 lb weight, delivering robust durability and installation versatility for exposed environments. This translates to reduced maintenance calls and extended lifecycle in outdoor service areas, enabling faster deployments on residential or light commercial projects. Amperage rating of 200 A and a bus rating of 800 A provide the capacity needed for typical residential service entrances while maintaining safe, single-phase in/single-phase out operation at 120/240 V, which simplifies integration with standard distribution panels. Type is Multiple metering with 4 sockets and a 4-jaw ring connection, supporting multi-meter configurations and tenant metering with a compact footprint. Interruption rating depends on the main circuit breaker selected, giving designers flexibility to meet specific utility and code requirements. The product’s UL Listed status and a one-year warranty (or eighteen months from shipment) contribute to risk reduction and predictable maintenance planning, while the broad utility approvals list helps with project acceptance. Compatibility with Eaton metering products and standard utility interfaces makes procurement straightforward, with a proven path to compliant installations and faster commissioning for residential metering programs.
